Cross conveying auger / Feeding
09 / 760

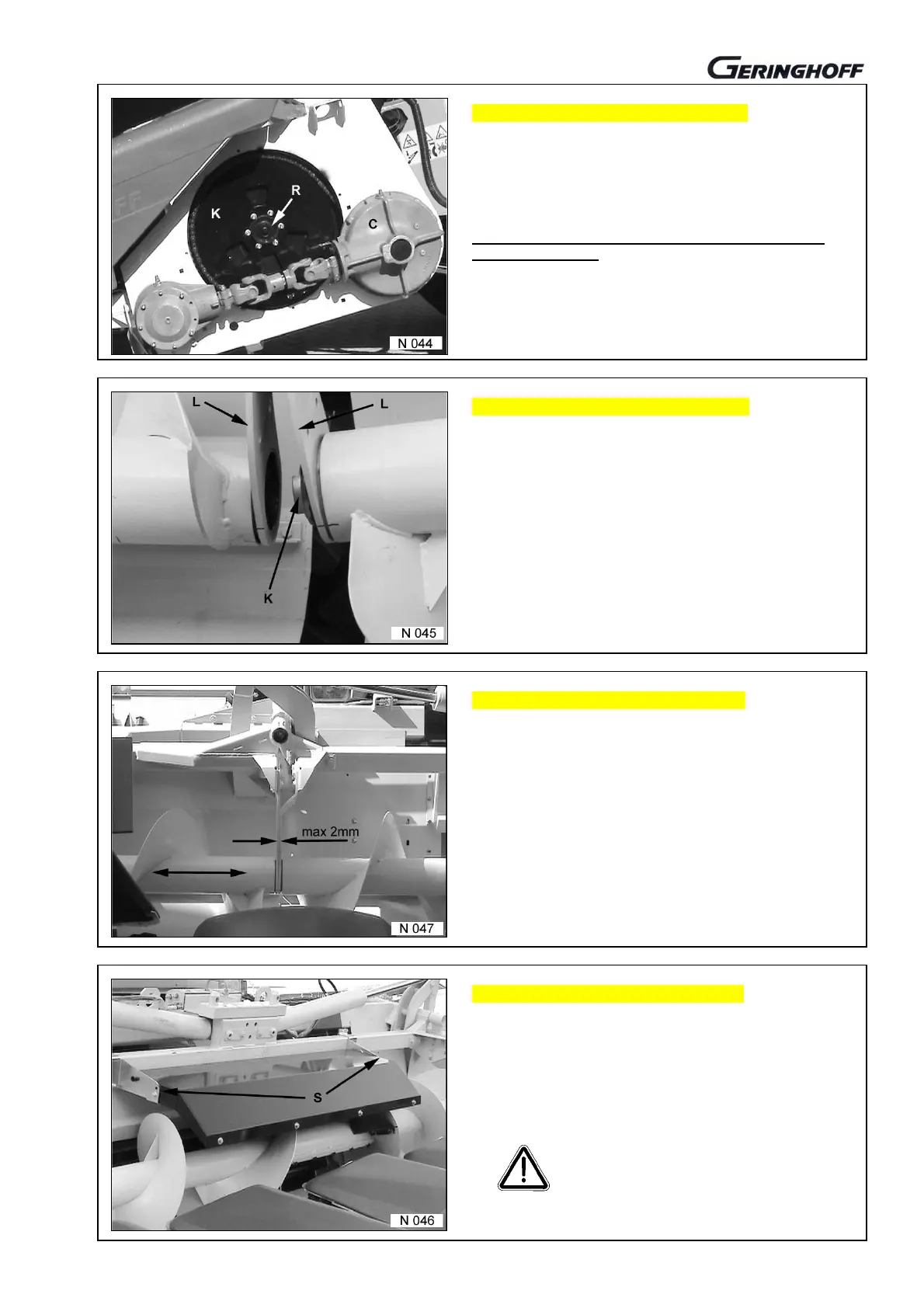

Sliding clutch cross conveying auger
ll auger drives are fitted with a maintenance-free and not
readjustable sliding clutch.
If the sliding clutch reacts, machine immediately to turn off
and troubleshoot.
Insufficient torque of the clutch cannot be decisive for the
response behaviour.
In case of overfeeding, the reversing device of the combine
allows for a refeeding.
Chain drive to grease and tension in regular intervals.
Driving clutch cross conveying auger
The coupling halfs (K) in the folding auger elements are
spring-loaded mounted on a splined shaft section engaging
automatically after the folding process.
xial spring load of the clutch (K) several times to be
checked during the harvest season by simple pressing in.
The screw joint of the bearing holders (L) serves to the
adjustment of the auger elements.
Once finished the setting works, the screws to remove.
Setting of the cross conveying auger
The cross auger is factory-mounted in ideal position and
not provided for being displaced.
Provided setting facilities serve only to the assembly of the
cross conveying auger.
Bearing holders (L) must in working position be parallel and
close to each other (max. 2 mm distance).
If the bearing holders (L) are too far from each other, the
corresponding auger element can be regulated by axial
displacement. For doing so, the locking ring of the
respective bearing to loosen.
Covering cap cross conveying auger
The height adjustment of the covering cap is made via the
screwing (S).
The distance between auger and cap should be as big as
possible to ensure a free passage of husks, leaf and even
stalk parts.
Prior to working on he corn header,
Diesel motor to turn off!
