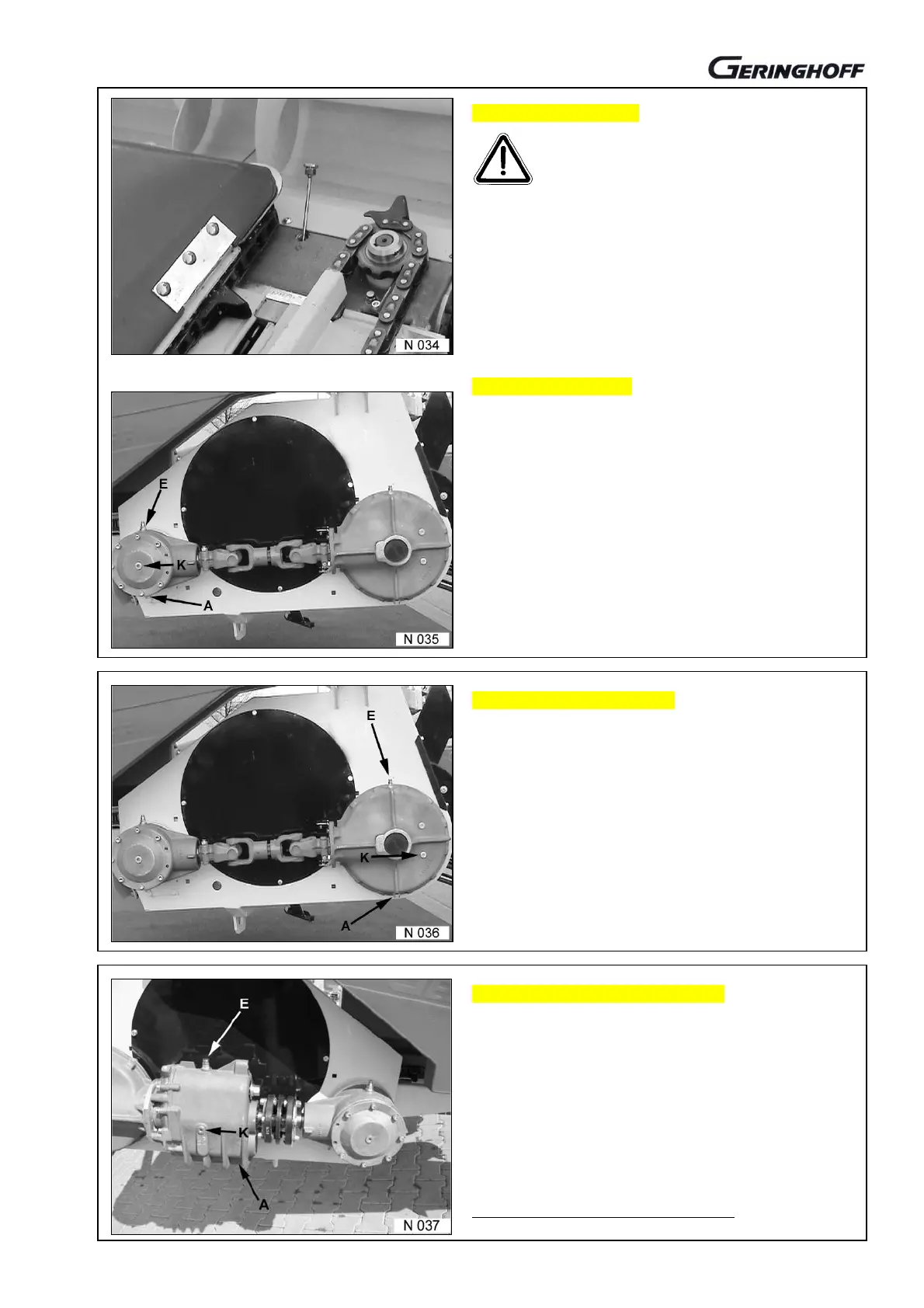

Transmission – oil control (maintenance intervals)
09 / 560
Row unit transmission
Corn header to lift to a height of about
1 m to allow the lowering protection to
engage. Turn of Diesel engine!
The oil level is controlled by a standard dip stick on the oil
filling plug.
Gauge position: Header lifted to about 1 m.
Filling level: 1,5 l gear oil SAE 90 (commercial quality)
Changing interval: 50 h from start-up, then once before
each harvest but at latest after 500 h.
Oil drain plug (not visible) is fitted with magnet, which must be
cleaned on each oil change.
Angular transmission
Oil level control of angular gear via central gauge plug (K).
Filling level: 1,5 l gear oil SAE 90 (commercial quality)
to fill to the escape on gauge opening.
Changing interval: 50 h from start-up, then once before
each harvest but at latest after 300 h.
Oil drain plug (A) is fitted with magnet, which must be
cleaned on each oil change.
In folded state, exhauster (E) to be checked in regula
intervals.
Oil level to be checked in re
ular intervals!
Contrate gear transmission
Oil level control via gauge plug beneath gear center (K).
Filling level: 1,5 l gear oil SAE 90 (commercial quality)
To fill up to the escape on the gauge opening.
Changing interval: 50 h from start-up, then once before
each harvest but at latest after 200 h.
Oil drain plug (A) is fitted with magnet, which must be
cleaned on each oil change.
In folded state, exhauster (E) to be checked in
regular intervals.
Oil level to be checked in re
ular intervals!
Change speed gear 2, 3 or 5 gears (optional)
Oil level control via gauge plug (K).
Filling level: 1,5 l gear oil SAE 90 (commercial quality)
To fill up to the escape on the gauge opening.
Changing interval: 50 h from start-up, then once before
each harvest but at latest after 200 h.
Oil drain plug (A) is fitted with magnet, which must be
cleaned on each oil change.
In folded state, exhauster (E) to be checked in
regular intervals.
Oil level to be checked in regular intervals!
