Rota-Disc* stripping rotors
10 / 200

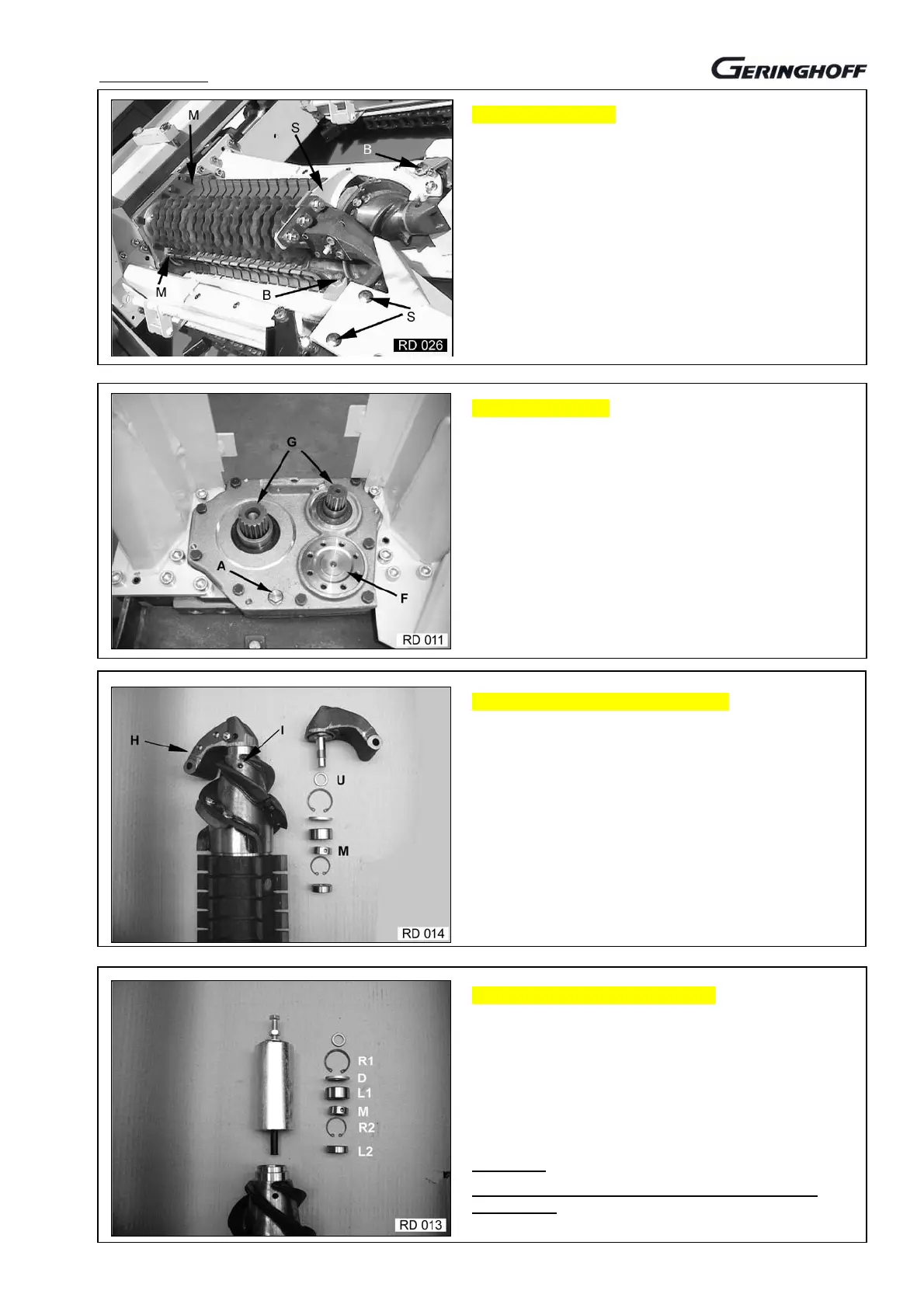

Rotors to dismount
Unscrew the skid screws (S).
Cutting disk shaft to dismount (see page 10 / 100).
If required, stripper on the big rotor to remove. (see page
10 / 000).
Bolt (B) to remove.
Complete rotor with frontal bearing holder via mounting
lever in pos. (M) to pull forward off the section shaft without
damaging the aluminium housing.
When remounting, section shaft of the gear well to grease
and the toothing of the rotors to check for being uniform.
Stripping row gear
View without rotors
Rotor shafts (G)
Oil drain plug (A)
Flange (F) for cutting disk shaft
Spur gear is accessible without the need for dismounting
the gear.
Bearing holder to take off the rotor
Stud screw (I) SW 5 to remove.
Bearing to turn such that the stud screw with hexagon
socket SW3 gets visible in the threaded bore.
Stud screw via spanner to loosen for one left turn and
spanner to remove.
Bearing holder to turn by 180° until the bore gets visible in
the set collar (M). Mandrel to put into the bore for blocking
thus the set collar. Bearing holder with mandrel to unscrew
to the left and pull off when set collar is unblocked.
Bearing to remove from the rotor
Seeger circlip ring (R1) to remove.
Use Geringhoff special tool, spare part 501165, for pulling
out the bearing and set collar.
Seeger circlip ring (R2) before the rear bearing to remove.
Via special tool rear bearing to pull out.
Remounting in reverse order .
Attention!
Special nut (M) to mount with the nose to the frontal
bearing (L1)!
