Divider noses to mount
09 / 320

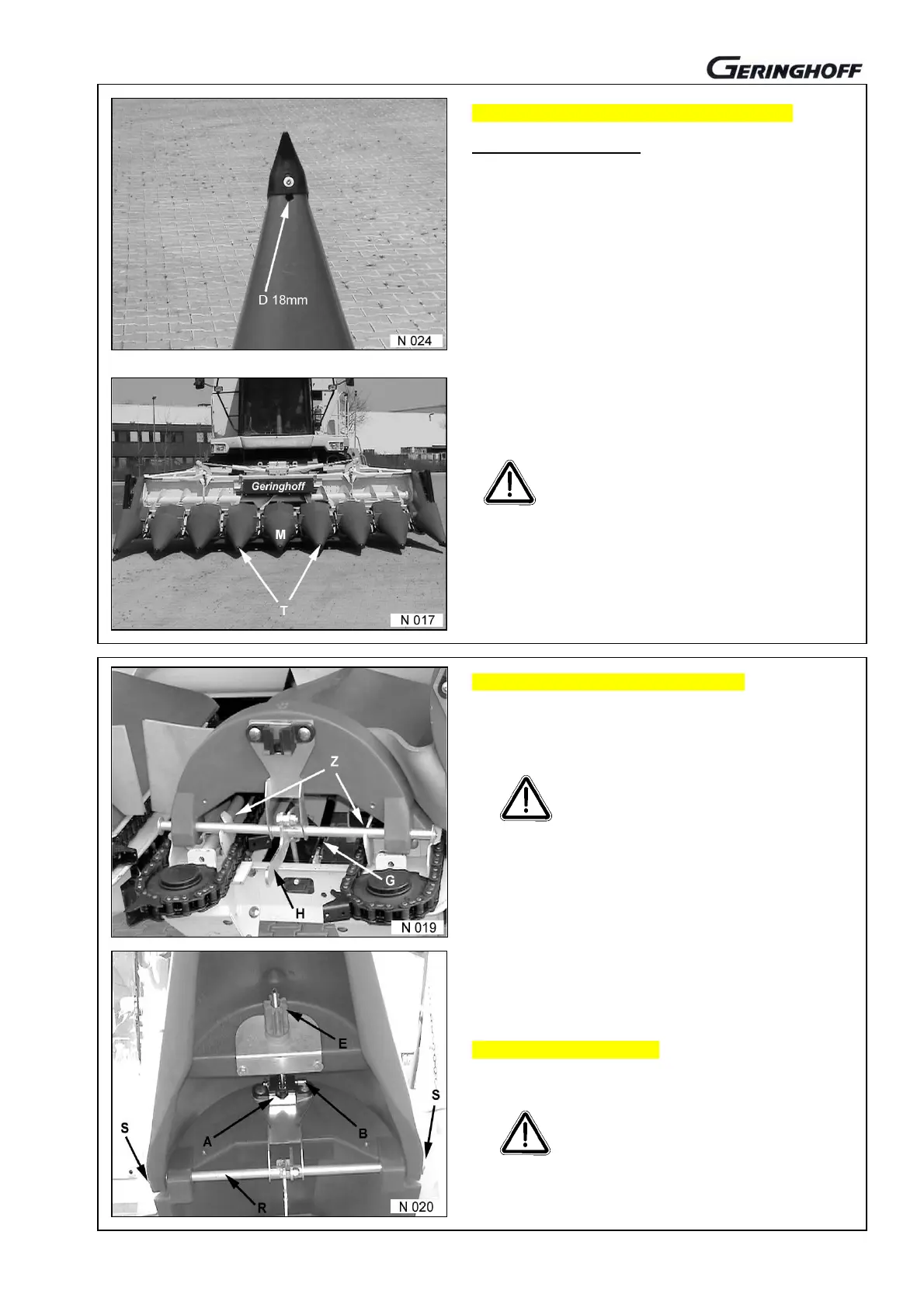

Selection of the divider noses for mounting
Divider noses with bore (D)
The supplied center divider noses differ only by a bore
(D) about 18 mm Ø if the header has been supplied with a
transport protection.
These center divider noses are to mount right and left (T)
from the center (M) for receiving the transport protection.
Corn header to lift and secure via
support on the lifting cylinders against
unwanted lowering!
Mounting of the center divider noses
Shield to open by throwing over the lever (H) and slightly to
press upwards from the centerings to the stop of the gas
pressure spring.
Shields may jump upwards by gas
pressure cylinder!
Tube (R) to remove once unscrewed the axial screwing (S).
Tube to put in provided bore of the divider nose and shield.
Screwing to tighten.
Divider nose to lift and setting bar (E) to hang into the
support (A). Safety bolt (B) to mount and secure by cotter
pin.
Shield strongly to press down for closing and to check that
locking pin hooks in. Via lever (H) shield to close with
moderate prestress. If required, locking hook to readjust.
Mounting of outer divider
The same procedures as with the center divider noses.
Risk of bruising when mounting
shields and divider noses !
The divider noses are adjusted via the screw (E).
