Rota-Disc* - stubble cutter / stripper
10 / 000

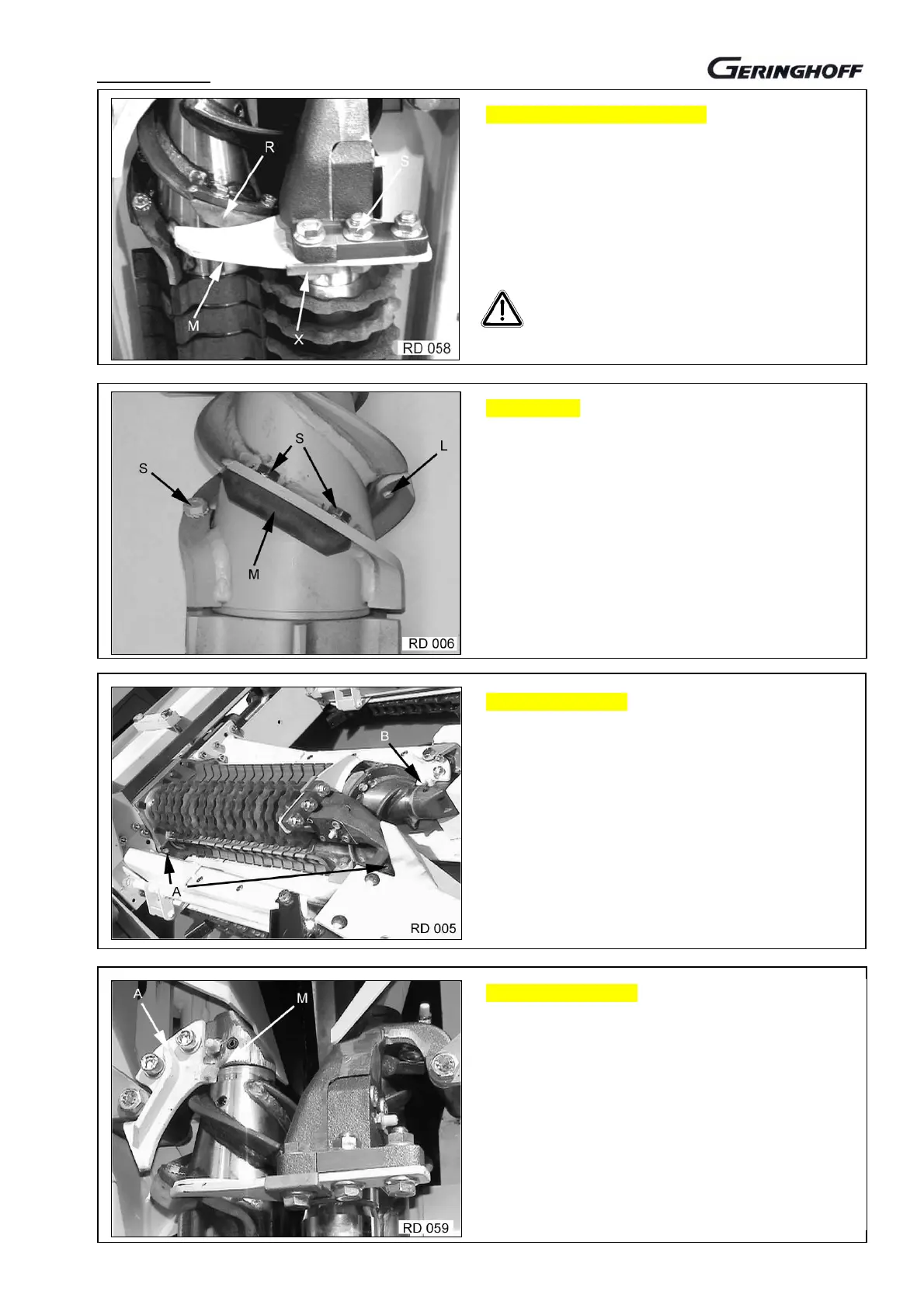

Adjustment of stubble cutters
The cutter (M) to place as near as possible to the rotating
knives (R). Distance max. 1 mm.
For setting the knife (M) the row unit to turn one rotation.
ipe wrench to place on the gaps of the knife disk shaft. P
fter the adjustment, knife support (X) via slight knocking
to drive to the knife.
Special screw (S) to tighten to max. value.
Prior to working on the machine, Diesel
motor to be turned off and header
secured against unwanted lowering!
Rotor knives
Worn knives or knives with round cutting edges
immediately to replace!
The rotor knives (M) to mount on level and clean surface.
Only new original special screws (S) with protection to
use.
Screw thread (L) must only slightly project. Longer
screws would cause the rotors to block.
The use of worn tools would increase the power demand
and costs.
Only an exactly adjusted stubble cutter allows to get
a good stripping performance.
Strippers on rotors
The strippers (A) und (B must run close to the provided
area.
Distance less than 0,2 mm
Stripper on big rotor
The stripper (A) serves to cleaning the rotor head and
prevent the rotor from blocking.
The clearance within the fastening bores is great enough
to allow for an adjustment according to the requirements.
The distance of the stripper nose (M) to the rotor shaft
should be less than 0,2 mm.
