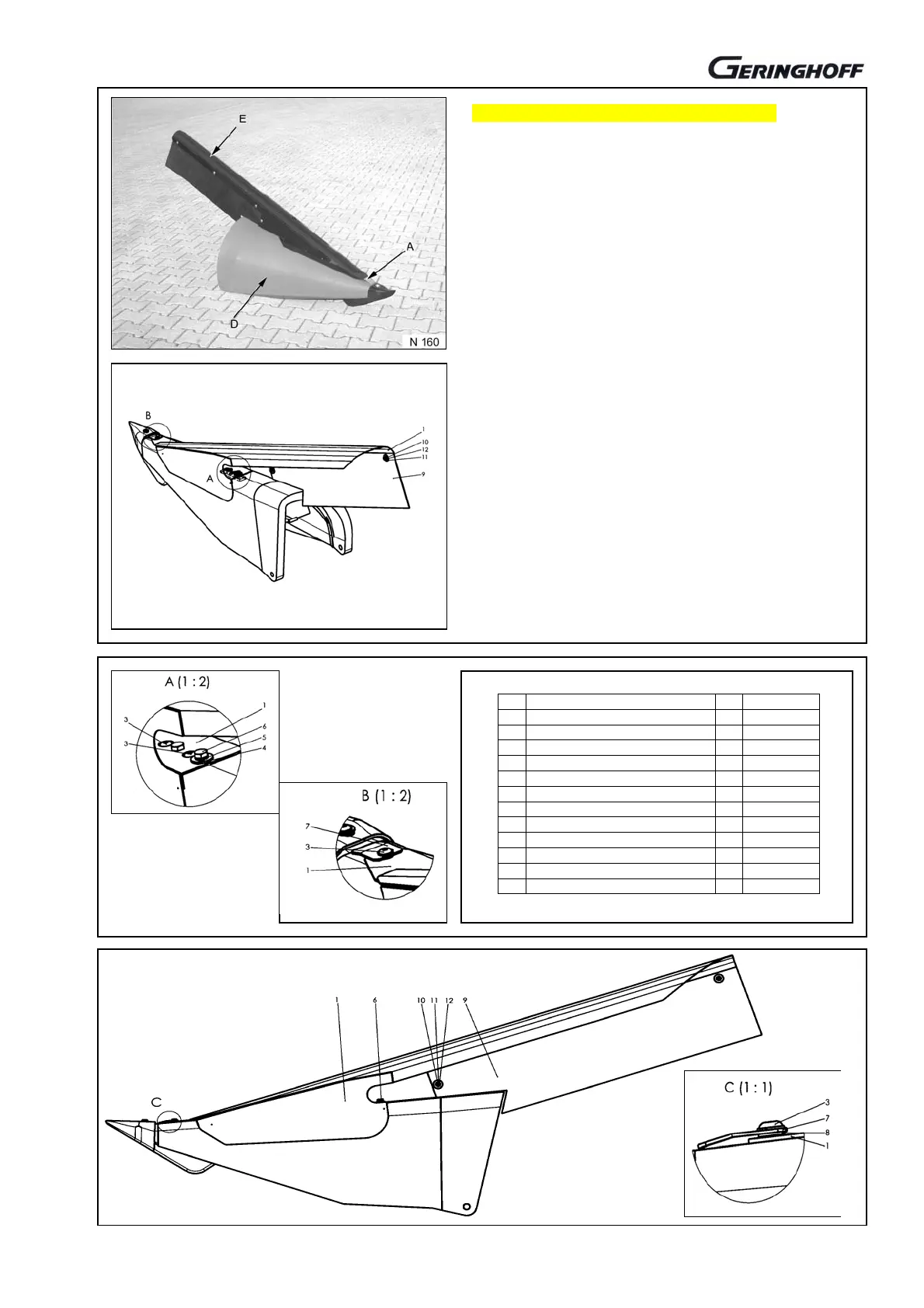

Bodywork increase (lateral, special equipment)
35 / 015
Bodywork increase laterally right and left
For sunflower and corn harvest to avoid harvest losses
Mounting instructions:
1. Bores (in front: Ø9; rear 2x11-2x Ø9) to bore via
template (504286 left; 504287 right).
2. In the area of the bores, one mounting hole each
from below and/or inside to bore into the outer
divider nose (Ø 50-55).
3. Threaded bar (2) through the mounting hole from
inside to screw down via the screws (3) to the
outer divider nose (3).
4. Clamping plate (7) with 3 spacers (8) to screw
down to the outer divider nose (3,12,13).
5. Outer divider nose extension with the frontal nose
to push under the clamping plate so that the
welded screw in the rear area engages into the
pocket of the threaded bar.
6. Outer divider nose increase and threaded bar to
screw down to each other (4,5,6).
7. Covering rubber to mount (9,10,11,12).
1 washer 8,4 DIN 9021 13 040216
5 hexagon nut M8-DIN 985 12 040008
4 washer V9-DIN 440 11 040300
4 sauce
-head screw M8*16-DIN 10 040612
1 covering rubber 9 504297
3 washer A8-DIN 125 8 040201
1 clamping plate 7 504298
1 hexa
on screw M10x30 DIN 6 040438
1 spring ring A10-DIN 9021 5 040109
1 washer 10,5-DIN 9021 4 040217
3
flat mushroom head screw 8x20
3 040917
1 threaded bar 2 504299
1 outer divider nose increase l+r 1 504290/291
View A
View B
Bodywork increase
Order no.: 504288 (links)
Order no.: 504289 (right)
