Notes for special harvest conditions
35 / 050

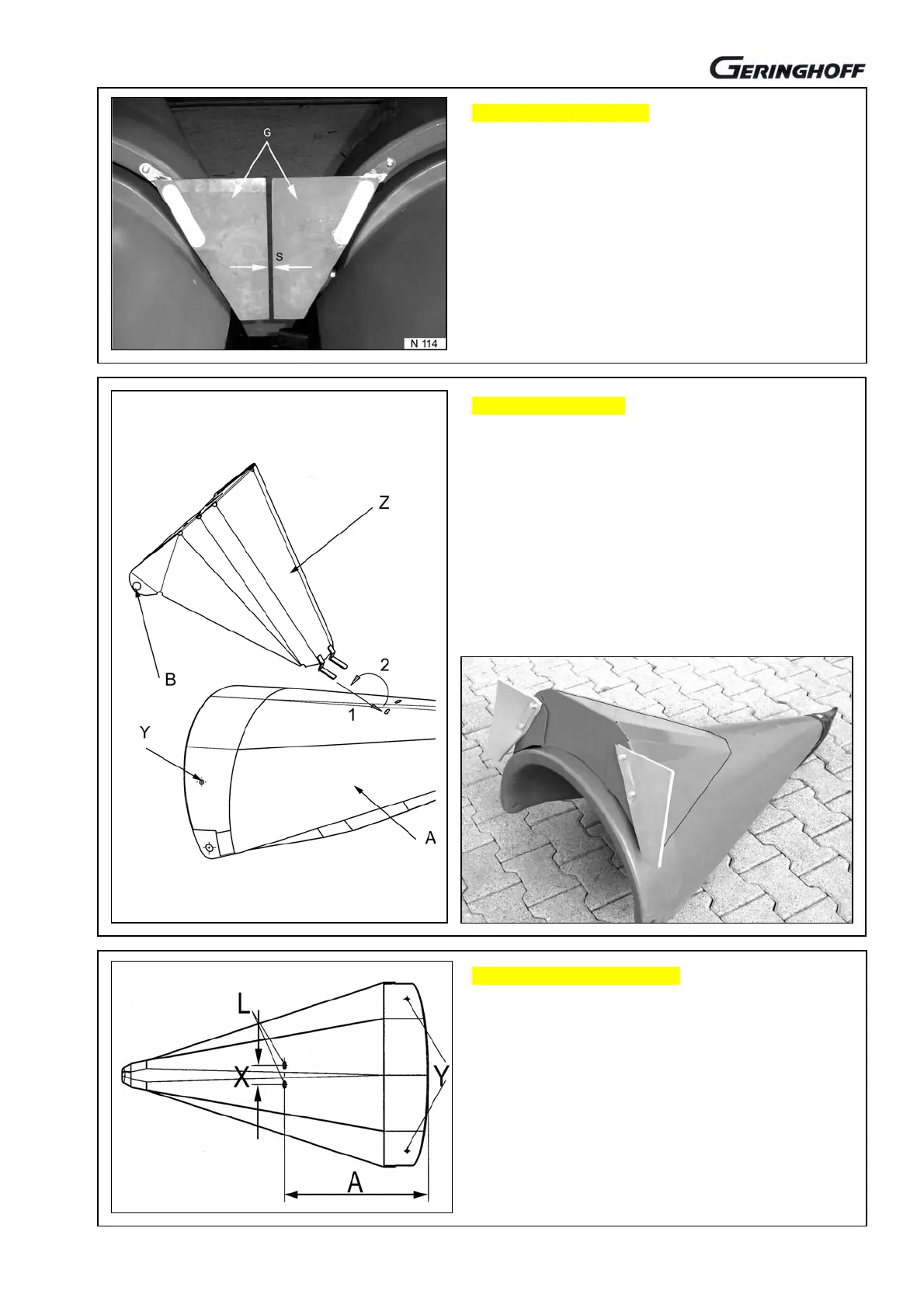

Shield extension rubber
If the maize plants are thin or even crumbly, the shield
extension rubbers (G) can be screwed off.
There is also the chance of extending the gap (S)
according to the conditions by removing a uniform piece
each right and left.
Additional cob saver (optional)
dditional cob savers are available for being put onto the
center divider noses.
Certain maize sorts can produce cob losses, which
requires using this additional device.
Once drilled the respective bores into the existing divider
noses (see graph hereunder) the cob saver can simply be
slipped on. As shown in ill. N 114, they are also fitted with
the respective rubber flaps (G).
Top for reducing cob losses
cco
ding to opposite graph bores are to be drilled for
mounting the additional cob saver.
A = 500 mm
X = 60 mm at a row width of 70 cm
95 mm at a row width of 75 cm
= 11 Ø after adaptation of the top
L = oblong holes 20 x 10 mm
