Drive coupler folding headers
09 / 280

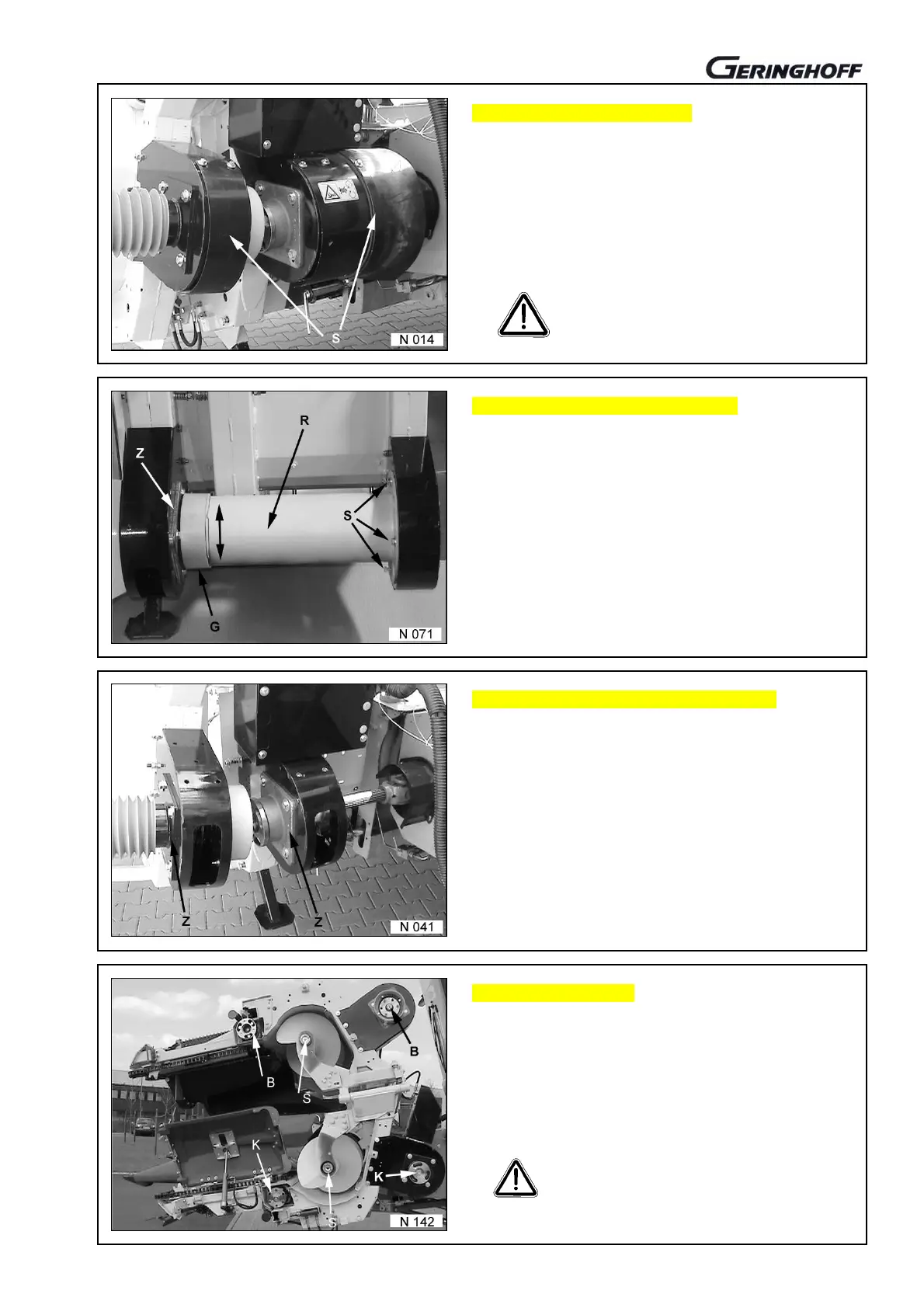

Drive coupler folding headers
The drive coupler, if any, ensures an automatic coupling of
the PTO-shaft drive.
Prior to start-up and then in regular intervals the correct
osition of the coupling halfs to check. p
Check the protective devices (S) for correct fitting.
Machine always to let idle.
Persons to keep off the dangerous
zone!
Drive coupler 6-row folding headers
The coupling half mounted to the folding element is
adjusted only via the protective tube (R).
If the coupling halves must be readjusted, screws (S) to
loosen and protective tube to displace accordingly.
Parallel fitting of the coupling halves absolutely to assure.
The coupling halves to axially regulate only via spacers (Z)
below the bearing.
Correct fitting of the protective ring (G) to ensure.
Header with drive couplers on both sides
From a certain number of rows the headers are fitted with a
both-sided drive.
If the coupling halves require an axial regulation, spacers
(Z) only to use on the marked positions.
The radial adjustment is made on the bearing points b
displacing the bearings into the bores provided.
The parallel fitting of the coupling halves absolutely to
ensure.
Maintenance and care
Coupling washers (S + B + K) to be slightly greased in
regular intervals.
Sliding parts of the respective coupling halfs once to
dismount prior to start working and sliding parts to grease.
xial fastening screw carefully to tighten with standard
torque.
Header drive not to set into operation
if the header is in collapsed state.
Risk of accident on the coupling halfs!
