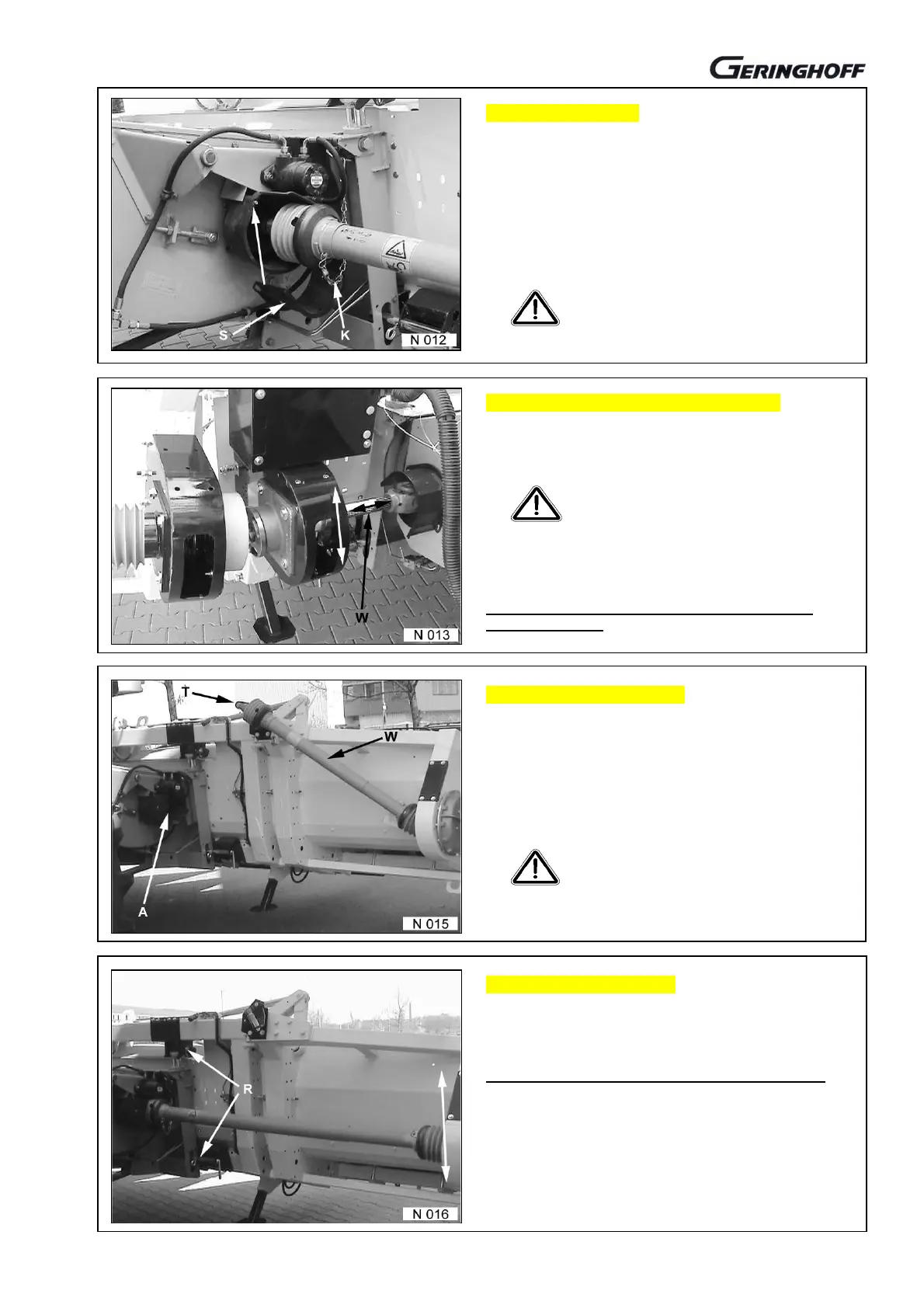

Corn header drive
09 / 160
Drive with PTO-shaft
Unfolding corn heads are driven by a simple PTO-shaft on
the right side.
Subject to the combine models, they can also be driven on
the left side, e.g. machines > 6 rows.
PTO-shaft protection to prevent from turning via chain (K).
If the combine is fitted with a pivoting shield, overlapping to
be checked in extended state.
Protective devices (S) to be checked
prior to start-up. Do not open or
remove them during operation.
Folding headers with PTO-shaft coupler
Check the PTO-shaft between coupler and channel
connection for sufficient overlapping. If required, pivoting
shield to actuate.
The heel compensation of some
models requires to be blocked.
On RD600F / RD800FB e.g. to John Deere series 20... /
22... + WTS / STS / CTS with PTO-shaft coupler, the
pivoting shield must be blocked ( follow the instructions).
Hillside combines cannot be operated with automatic
PTO-shaft coupler.
Drive for hillside combines
ll hillside combines are directly driven by PTO-shafts (W)
to be slipped on by hand.
Certain combine-header combinations require wide angle
or even special PTO-shafts.
Instructions absolutely to follow and PTO-shaft design to
consider.
Prior to start up, check pivoting
range and PTO-shaft length. Check
for sufficient overlapping.
The fastening (T) of the PTO-shaft is for transport.
Use of the pivoting shield (heel compensation)
On principle, the pivoting shield of the combine can be
used combined with the majority of the corn headers
without any limitation, unless otherwise specified.
The instructions of the combine manufacturer to follow!
PTO-shaft length to check in all positions.
If required, special locks (R) to mount to upper adapter
frame and secure.
lways trial run to conduct!
Instructions for PTO-shaft drives to observe!
