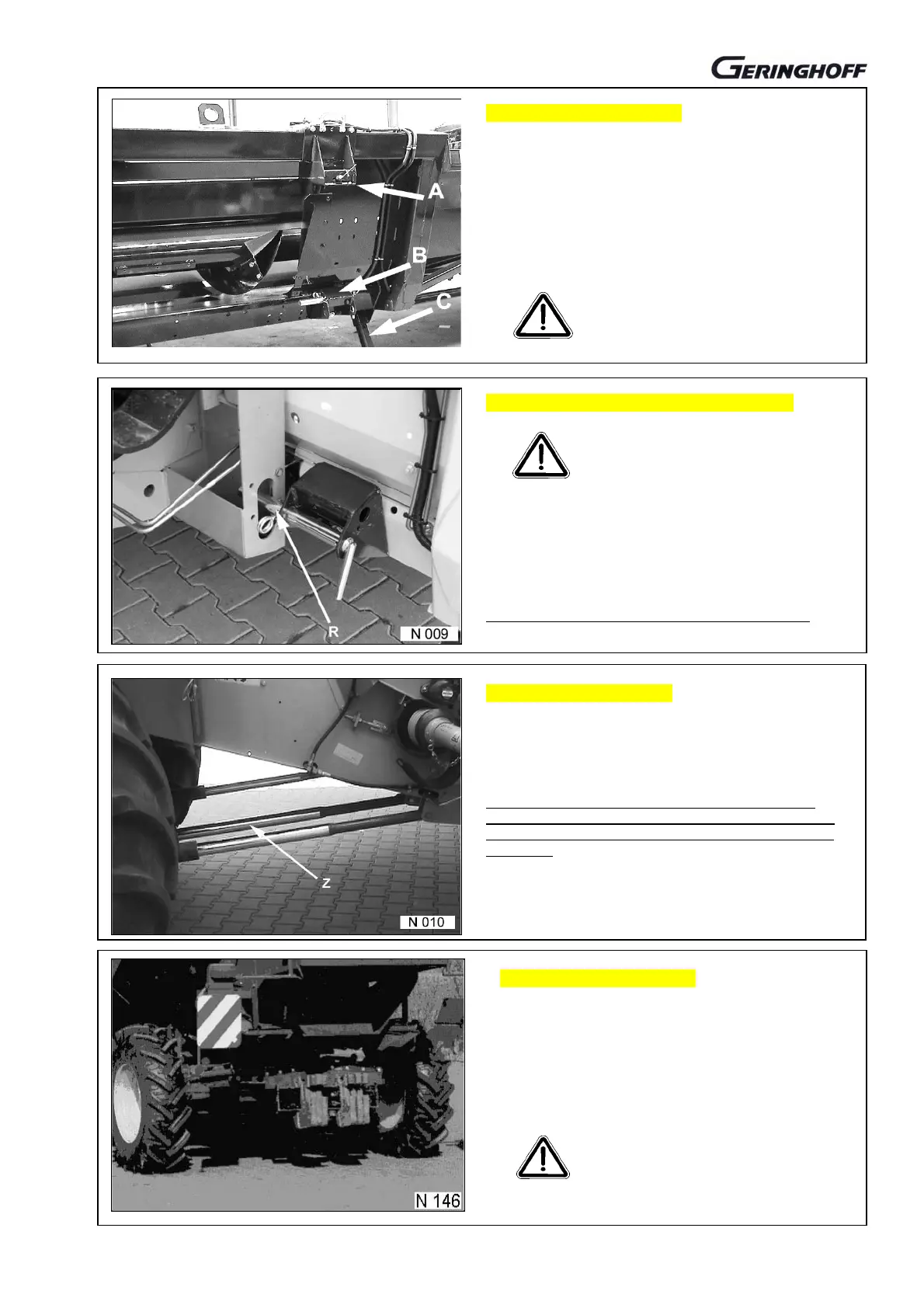

Mounting of the corn header
09 / 120
Adaptation to the combine
The corn header is to be placed down on the supports (C).
Check the correctness of the adaptation parts. Fur further
information, see spare part catalogue 3061000 from
picture table 60/..
Combine to move to the header.
Header with the gathering channel to lift.
Correct seat of the adaptation parts (A) to check.
Persons are not allowed to stay
between comb between combine
and header during the mounting
process.
Corn header to lock on gathering channel
Corn header to secure against
unwanted lowering by u lowering!
Use locking mechanism
on the hydraulic cylinders!
The header (R) to be mounted to the points and devices
of the combines as provided.
Corn headers always slowly to lower to the ground to
keep
unwanted forces away from the locking.
Follow the instructions of the combine manufacturer!
Additional lifting cylinder
Subject to the size and weight of the corn header, one or
two additional hydraulic cylinders (Z) may be required.
The combine manufacturer holds the corresponding kits
ready.
Subject to the design of the corn header and carrying
capacity of the different combines, the steering axle may
require using additional weights and the tires being filled
with water.
Follow the instructions of the combine manufacturer and
TÜV-expertise
Additional counterweights
Subject to the weight of the mounted corn header,
additional loading weights may be required for being
mounted to the steering axle of the combine.
The dimensions of these additional weights are to be
learnt from the road permit, combine manual or TÜV-
expertise of the corn header.
The road transport licensing
roads must regulations must
absolutely be followed.
