John Deere series 22… conversion to WTS, CTS, STS
John Deere-2.doc
Feed opening of the corn header
Certain opening sizes of the header for all combine makes
and models are determined for the feeding to the gathering
channel of the combine.
The exact opening width to be learnt from the sketches in
the spare part catalogue from picture table 60/.. .
For standardization reasons, slight variations from the rated
size are allowed.
In particular when working on slopes a regular feeding is of
essence for the harvest material to be distributed evenly
within the machine.
Adaptation to combine width
If the corn header is changed between different combine
makes and types, it must possibly be adapted to the
different machine width.

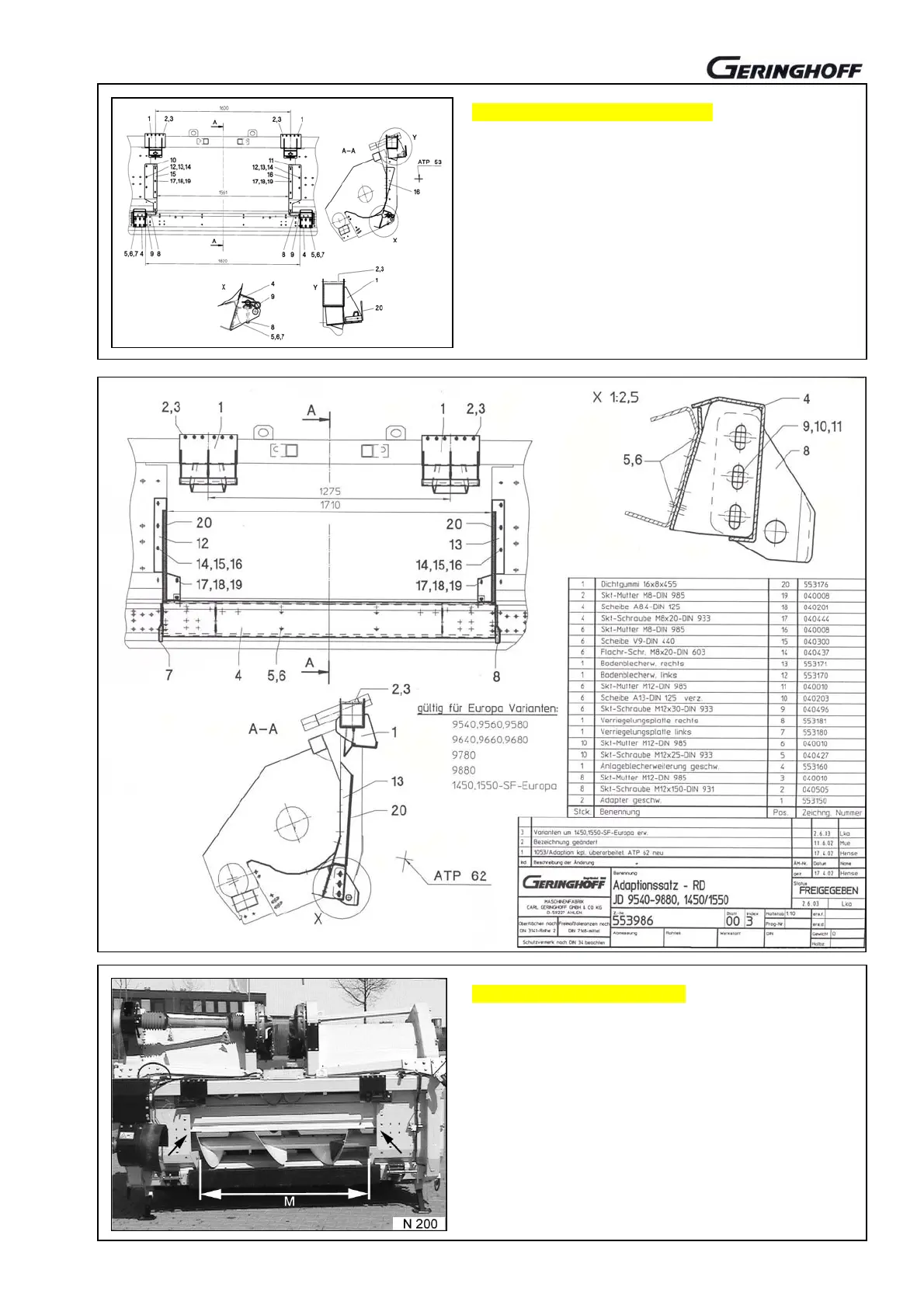

The plates (12 and 13) are to be put to the required size to
ensure a homogenous machine feeding.
The width (M) of the header opening is to be adapted to
that of the combine.
