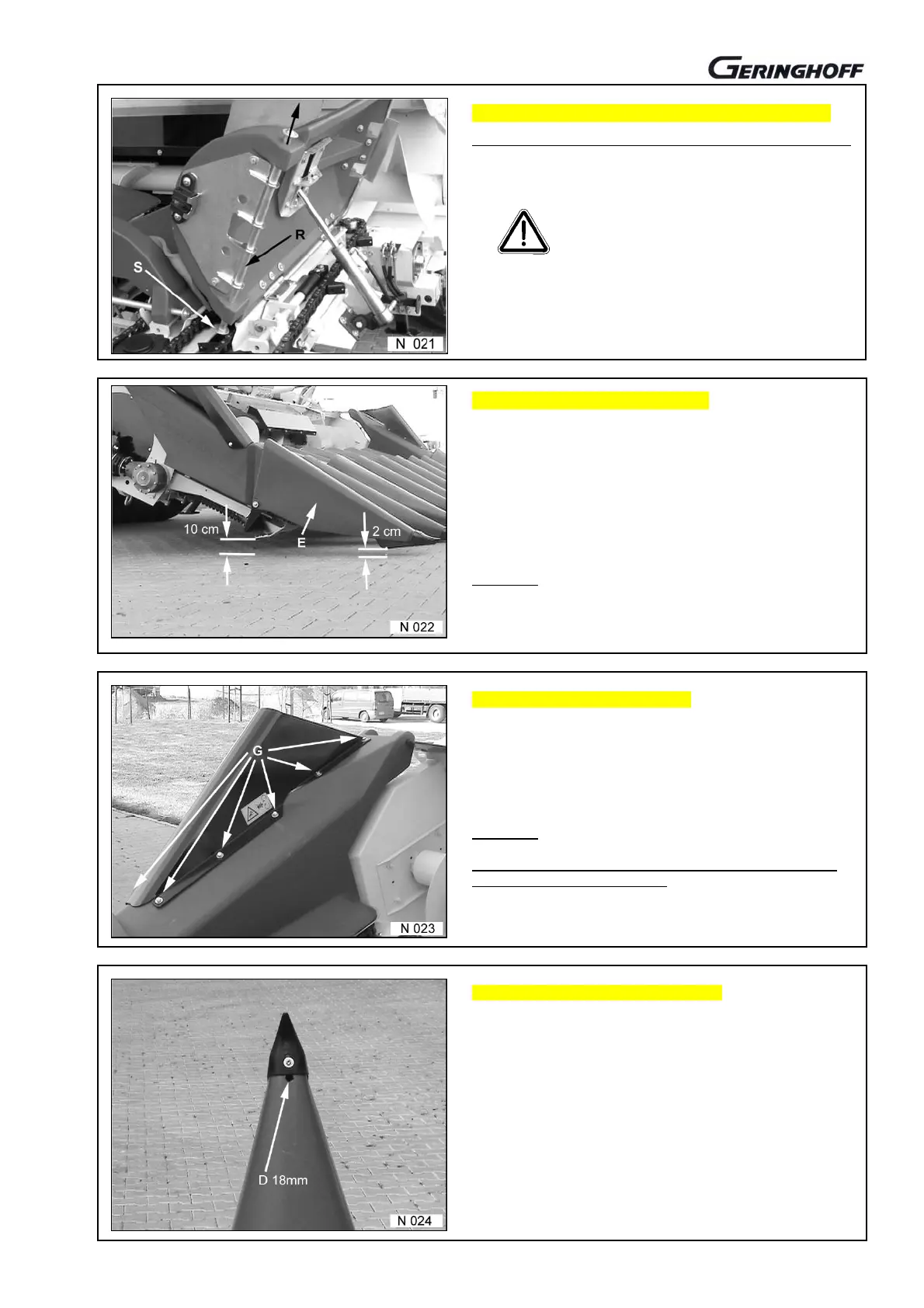

Divider noses to mount
09 / 360
The center divider noses to mount to the shields
Only possible with the hydraulic connection already mounted.
Start folding process. If folding shields are open, procedure
to stop.
Motor to turn off !
Corn header to secure against
unwanted lowering!
Mounting procedure of the divider noses is the same as for
the other center noses.
The divider noses are adjusted via the screw (E).
Adjustment of the divider noses
Protection against lowering to remove.
Header to lower to a ground distance of about 10 cm on an
even surface.
Divider noses with screw (E) to adjust such that their
distance to the ground is 2 cm (normal adjustment).
On the harvest of lodged maize and if the combine sinks
into the deep ground, the noses are to lower deeper.
Attention!
In case of an extremely lower adjustment, ensure that the
divider noses don’t get in touch with the gathering chains!
Mounting of the increased shield
For transport size and package reasons the
increased side shield is supplied unpacked.
It is mounted to the outer bodywork into the provided
threaded bores (G).
Attention!
ll screws of the plastic parts normally to tighten to prevent
the bores from being damaged.
The harvest can be made on option even without these
Bores to drill for transport protection
If divider noses have been mixed up on assembly or
supply, the required bores can be drilled into the both
center divider noses on the site.
Directly behind the divider nose top plate an 18 mm Ø bore
to drill only into the upper plastic surface.
The respective center divider noses are selected according
to the specifications of the transport protection or to picture
N 017 on page 09 / 320.
