Sunflower equipment
35 / 000

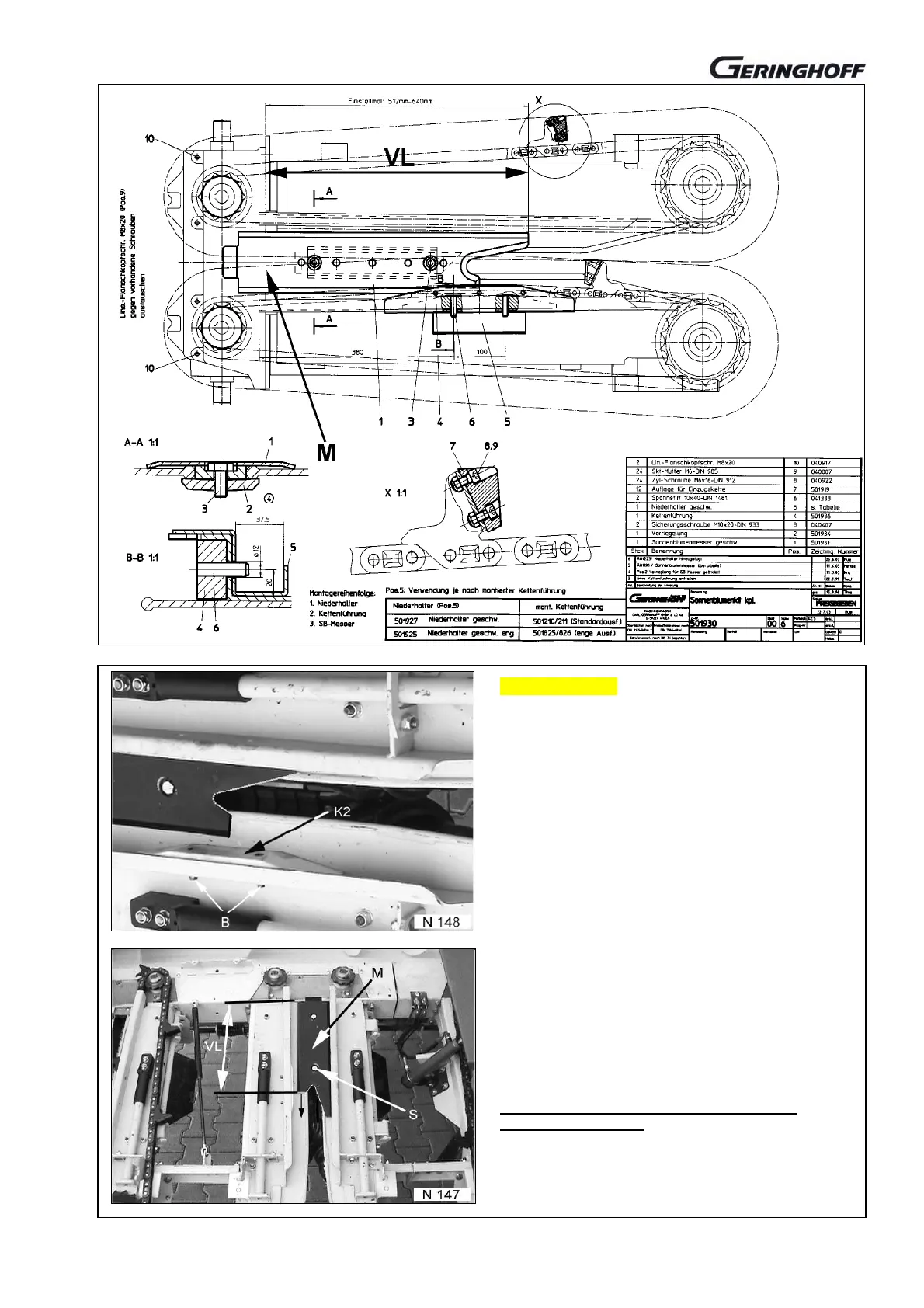

Cutter to mount
Right gathering chain to release and plastic block
(4) to put in.
Holding down device for gathering chain
to put on pin (5), see ill.
Stripping plates to open so much that premounted
cutter (M) can be pushed in, see above graph (ill.
A-A) and also (ill. N 147 M).
Size (LV) in above graph, min. 510 mm, max. 600
mm allows for an individual axial cutter setting.
The more the cutter is pushed rearwards the
stronger the rotors start pulling the sunflower
through.
In consequence, the cutter to be pushed forwards
so far that the sunflower head, if possible, won't
be pushed downwards too much.
ou must avoid that the head gets in touch with
the chains before the stalk has been cut off.
Stripping plates to close and screw (S) to tighten.
Holding-down device for gathering chain not
shown on the photos.
