Special tools

36 / 000

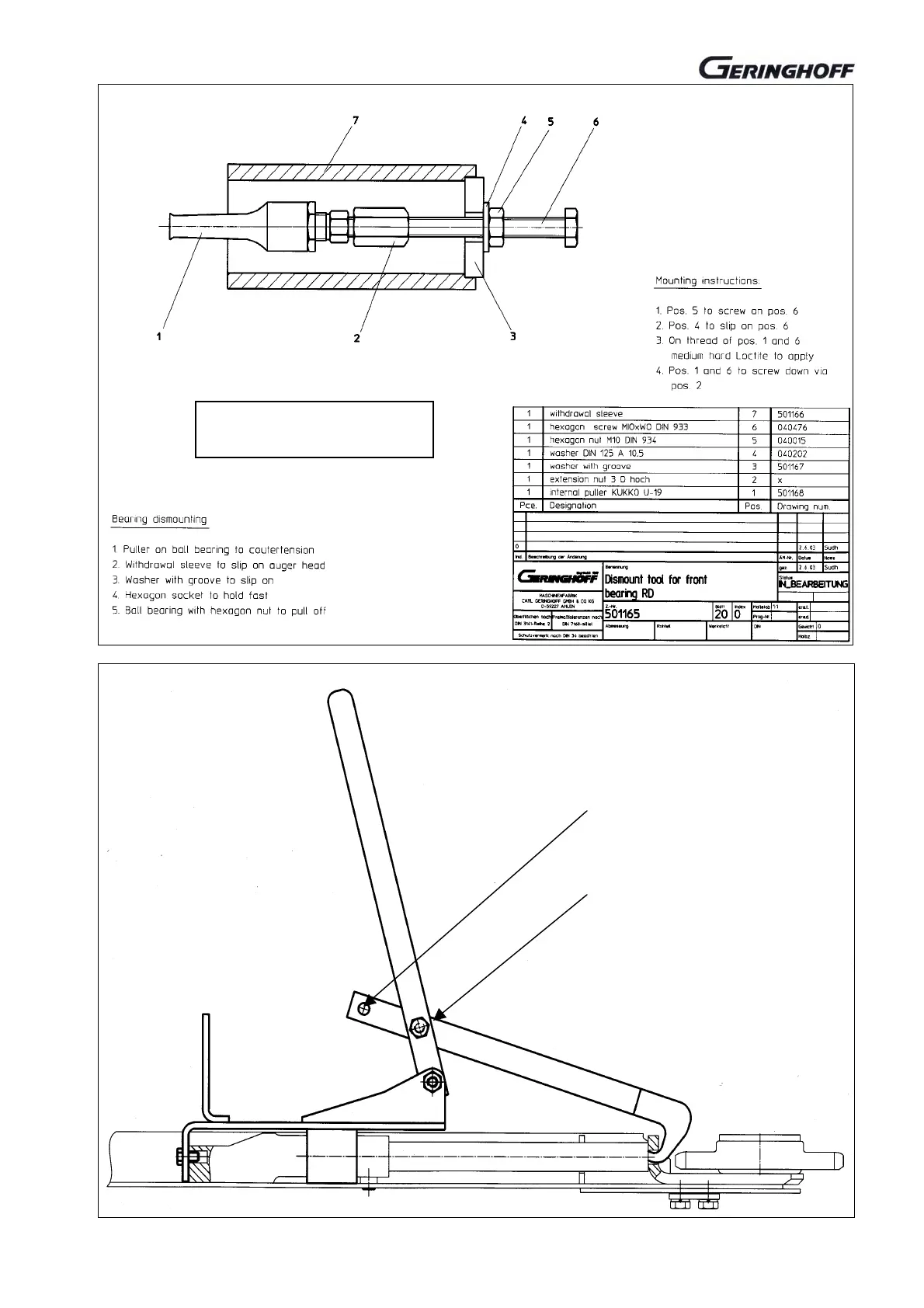

Dismounting tool

Order no. 501165

Chain dismounting tool

Order No.: 501190

djustment for dismounting the

gathering chains

Adjustment for dismounting the

front chain wheels
