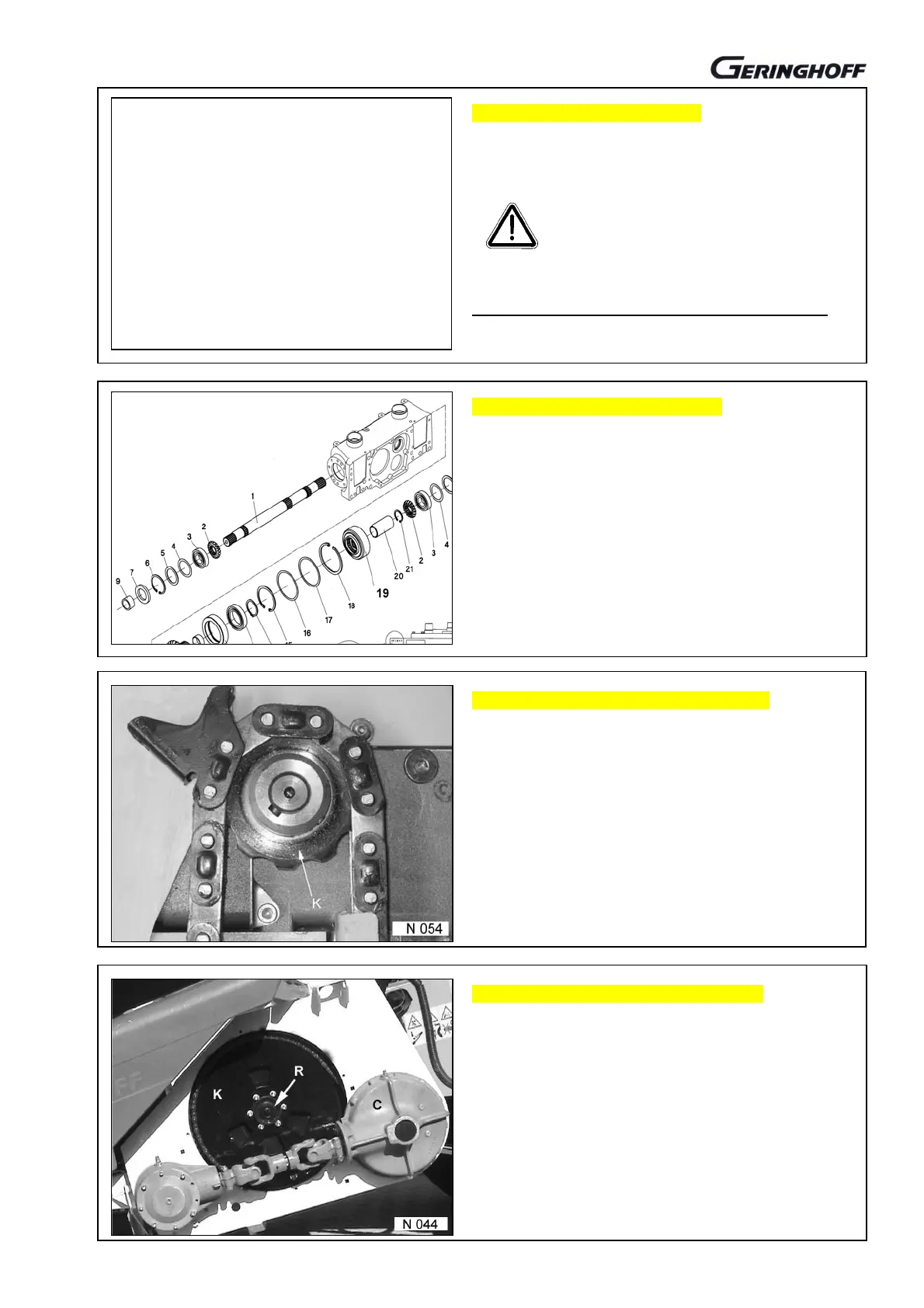

Overload protections and slipping clutches
09 / 800
Basic equipment of all headers
number of overload protections and slipping clutches are
provided for the safe operation of the machine.
If these devices respond, corn header
immediately to turn off!
Diesel motor of the combine also to
turn off and header to secure against
unwanted lowering!
Troubleshoot and trouble to rectify.
Never switch the header on and off to get it turning again.
Sliding clutch in the row unit gear
One maintenance-free and wear-poor cam clutch each (19)
is arranged within the gears.
If it responds, there is a trouble beside the normal
operational conditions.
Once stated that the foreign body did not cause the
response behaviour, the reversing device of the combine
allows the header to be turned backwards and to remove
sticking harvest material.
Clutch must not run hot!
Slipping wheels on the gathering chains
See also page 09 / 520
The special tooth form of the driving chain wheels (K)
combined with the automatically tensioned gathering
chains effect a well-balanced driving torque of the
gathering chain drive.
In case of overload or foreign bodies the driving chain
wheel turns within the gathering chain without moving it
ahead. That ensures that damages are prevented and
foreign bodies kept away from the combine.
Never to change the chain tension using inadequate tools.
Slipping clutch in the cross auger drive
not readjustable cam clutch is mounted on the drive side
of the auger shaft.
If it responds, there is a trouble beside the normal
operational conditions.
Once stated that the foreign body did not cause the
response behaviour, the reversing device of the combine
allows the header to be turned backwards and to remove
sticking harvest material.
