John Deere series 22… conversion to WTS, CTS, STS
e John Deere.doc

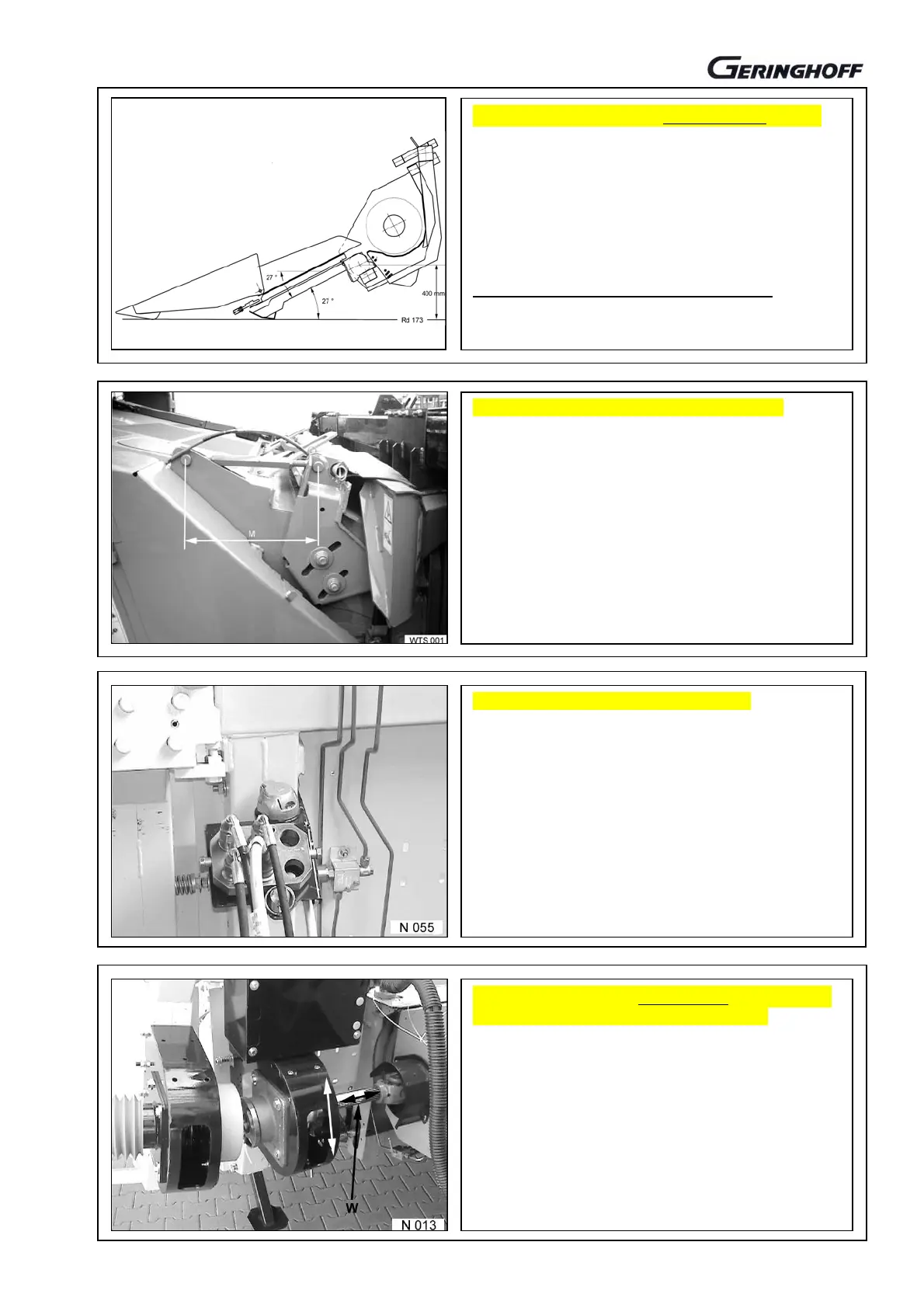

Setting angle Geringhoff Rota – Disc* header
The ideal working angle for the Rota–Disc header is
about 27°.
When converting the header from one combine make to
another one, in general new adapter parts are required.
When changing from a rigid, not foldable header from the
series JD 22.... to WTS, CTS or STS, that could be done
without the need for using new adapter parts.
That does not apply to „ Hillmaster“ versions
John Deere WTS, CTS and STS combines
If a not foldable corn header is provided for the series JD
22.... to WTS, CTS or used to STS, the channel angle (M)
is to be adjusted to the lowest possible size (M).
This adjustment allows approaching to the required
working angle of the corn header Rota-Disc.
further adjustment of the working angle of the header can
be made via the standard angle adjustment of the header
(see also 09/480.
Multicoupler for hydraulic connection
Combines of the series WTS, CTS and STS are fitted with
a multicoupler for the hydraulic connection to the header.
This coupler must be provided along with the adapter parts
for being able to operate the header.
Conversion of folding Rota-Disc* headers from
JD 22... to John Deere WTS, CTS or STS
These changes require in any case using new adapter
parts, since the PTO-shaft coupler requires an exact
adaptation of the driving point.
New adapter parts are also required when changing from
series JD 22.. to WTS, CTS or STS on „ Hillmaster“
versions.
