| CARDIOHELP System | 3 Inspection | 45 |
Service Manual | 3.3 | EN | 05
Copyright Maquet Cardiopulmonary GmbH
CARDIOHELP-i application for USA
3 Check the cover of the rotary knob to see if it matches the existing license.
4 Select an application and touch the [Confirm] symbol.
u Rotary knob cover matches license - passed/failed.
Software Version
1 Touch the [Menu] symbol.

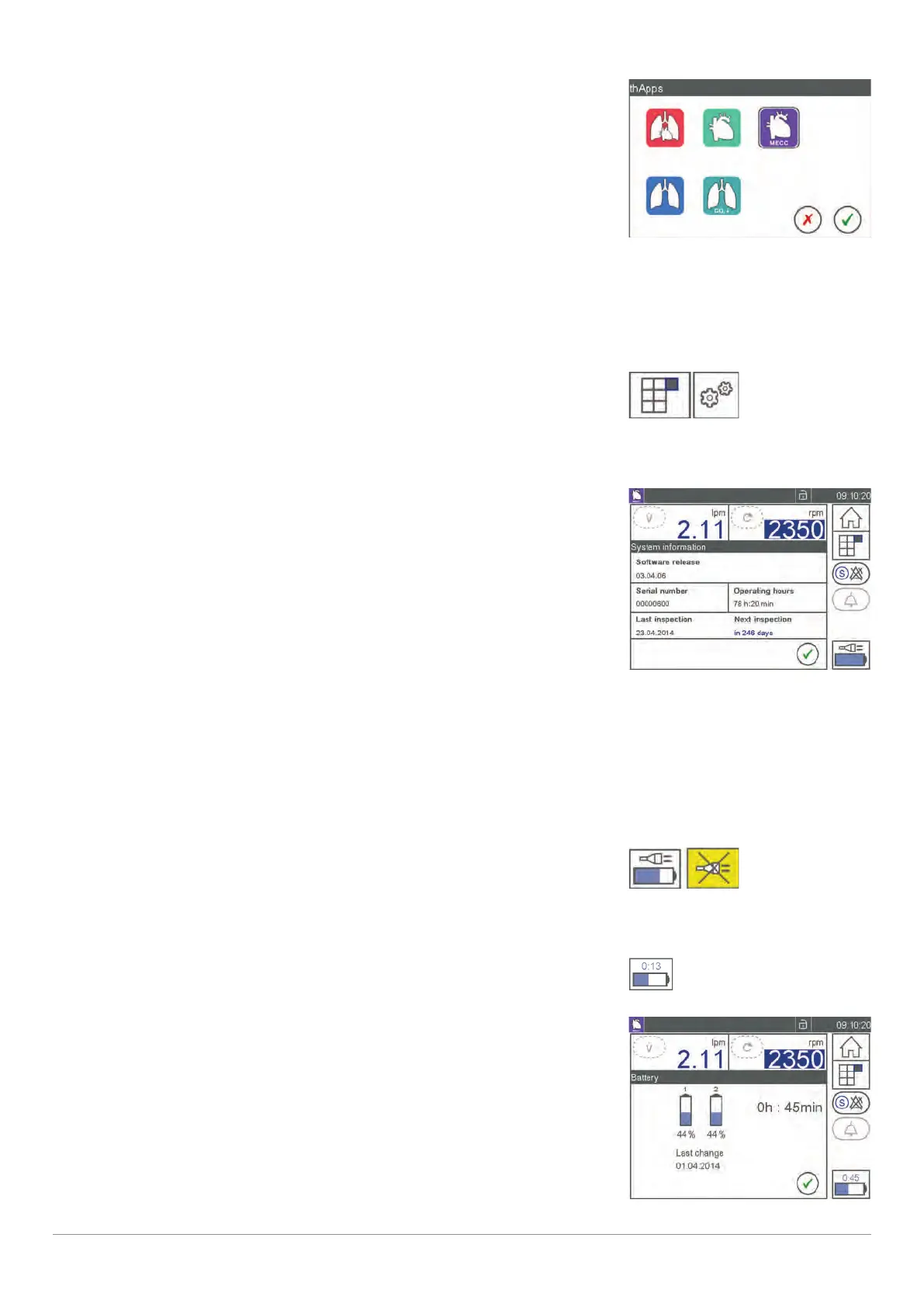

Display data
2 Touch the [Settings] symbol.
3 Select the [System information] menu.
▶ The [System information] screen is displayed.
"System information" screen
4 Make a note of the software version in the service protocol.
u Software version __________
Battery Test
1 Remove the power supply cord.
▶ Status bar flashes yellow and displays a message.
▶ Acoustic alarm.
▶ The [Power supply status] symbol changes from [Mains
operation] to [external power supply disconnected].
[Power supply status symbol]
▶ Alarm can be switched off with symbol [Current alarm pause].
u Battery switching - passed/failed.
2 Touch the [Power supply status symbol].
Battery symbol
▶ Status bar without alarm situation and the message [Switch
from mains to battery] disappears.
Battery status window
