ProfiLux 4 Resource Guide

EN 2018-13-11 72

1x 1-10V port = 2x 1-10V channels

Each 1-10V (Yellow) L-channel port on the ProfiLux 4, Expansion cards, and

Expansion Box are capable of controlling 2 separate 1-10V channels. This

also applies to the on-board L-channel ports on GHL lighting accessories such

as the

1-10V Breakout Box

and

LEDControl4 V2

CONNECT CONTROL CABLE

1. Take the 1-10V control cable and connect it to the lighting fixture and GHL accessory.

2. Connect the GHL accessory to an available YELLOW L-channel port on the back of the

P4.

 The following accessories MUST FIRST be connected to L-channel ports, L1-L6

for initial programming. Once programming is complete, you can connect this

device to any L-channel port. If you are not using any of these accessories,

proceed to the next step.

i. LEDControl4 models

ii. Mitras Simu-Driver

iii. ProfiLux-Simu-LEDs

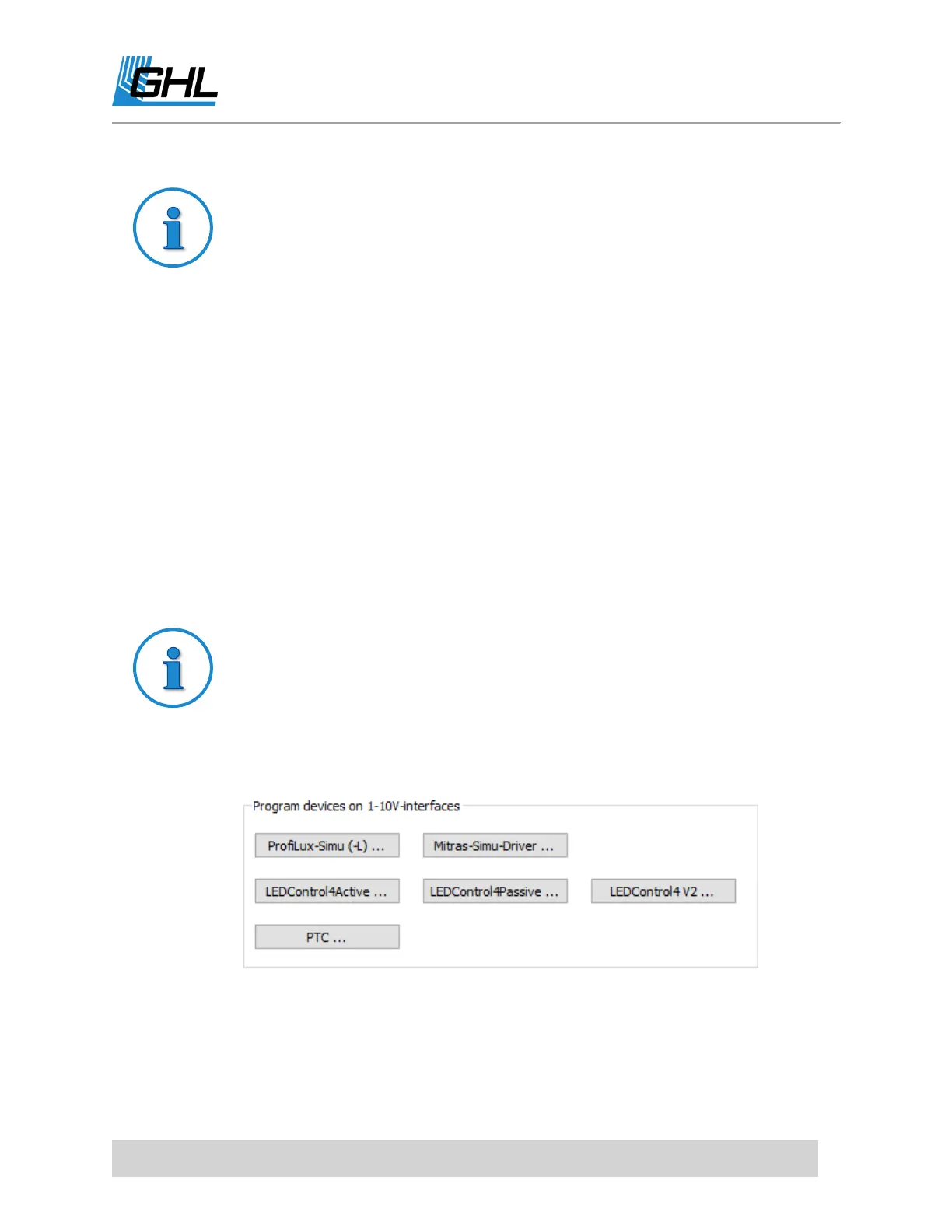

Initial programming for Mitras-Simu, ProfiLux-

Simu or LEDControl4

If you are trying to control a light with a Mitras-Simu, ProfiLux-Simu, or any

LEDControl4 accessory, please go to the 1-10V INTERFACE settings page and

select the device you have and follow the given instructions. Once complete,

you can disconnect the accessory and connect it to any L-channel port, then

proceed to the next step.

ASSIGNING 1-10V INTERFACE FUNCTION

1. Click on the (+) icon to the left of

System

and select 1-10V INTERFACE.

2. Select the L-channel interface where you have the light connected.
