ProfiLux 4 Resource Guide
EN 2018-13-11 93

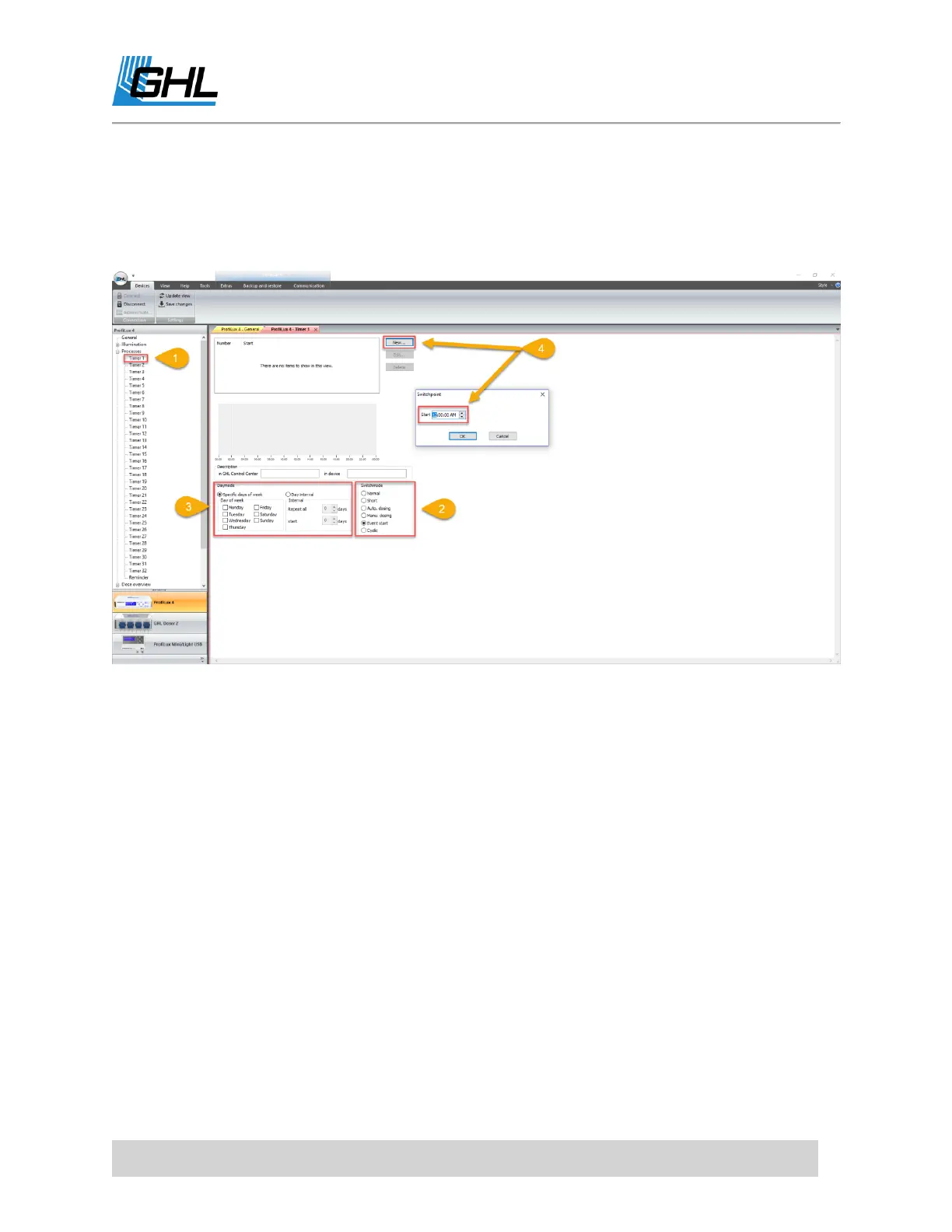

1. Click on the (+) icon to the left of
Processes
and select an unused TIMER.
2. Set the
Switchmode
to EVENT START.
3. Select the days of the week to activate this TIMER (AWC function).
4. Click NEW and select what time you want this TIMER to activate the AWC function.
ASSIGNING THE FUNCTION
1. Click on the (+) icon to the left of
System
and select SWITCH CHANNELS AND
OUTLETS.
2. Select the outlet that has the AWC DRAIN pump connected to it.
3. Set the function to DRAIN WATER and select the
Control Circuit
number you used when
you created the AWC function.
For example, if you created the function on
Control circuit
1, set the function to
DRAIN WATER 1. If
Control circuit
2 was used, set the function to DRAIN WATER
2.
4. Type-in a description in both fields, then click OK.
5. Select the outlet that has the AWC FILL pump connected to it.
6. Set the function to FILL WATER (AWC ONLY) and select the
Control Circuit
number you
used when you created the AWC function.
Similar to step 3, if you created the function on
Control circuit
1, set the function
to FILL WATER (AWC ONLY) 1.
7. Type-in a description in both fields, then click OK.
8. Click SAVE CHANGES.
