Gooxi SL201-D08R-G3 User Manual

26

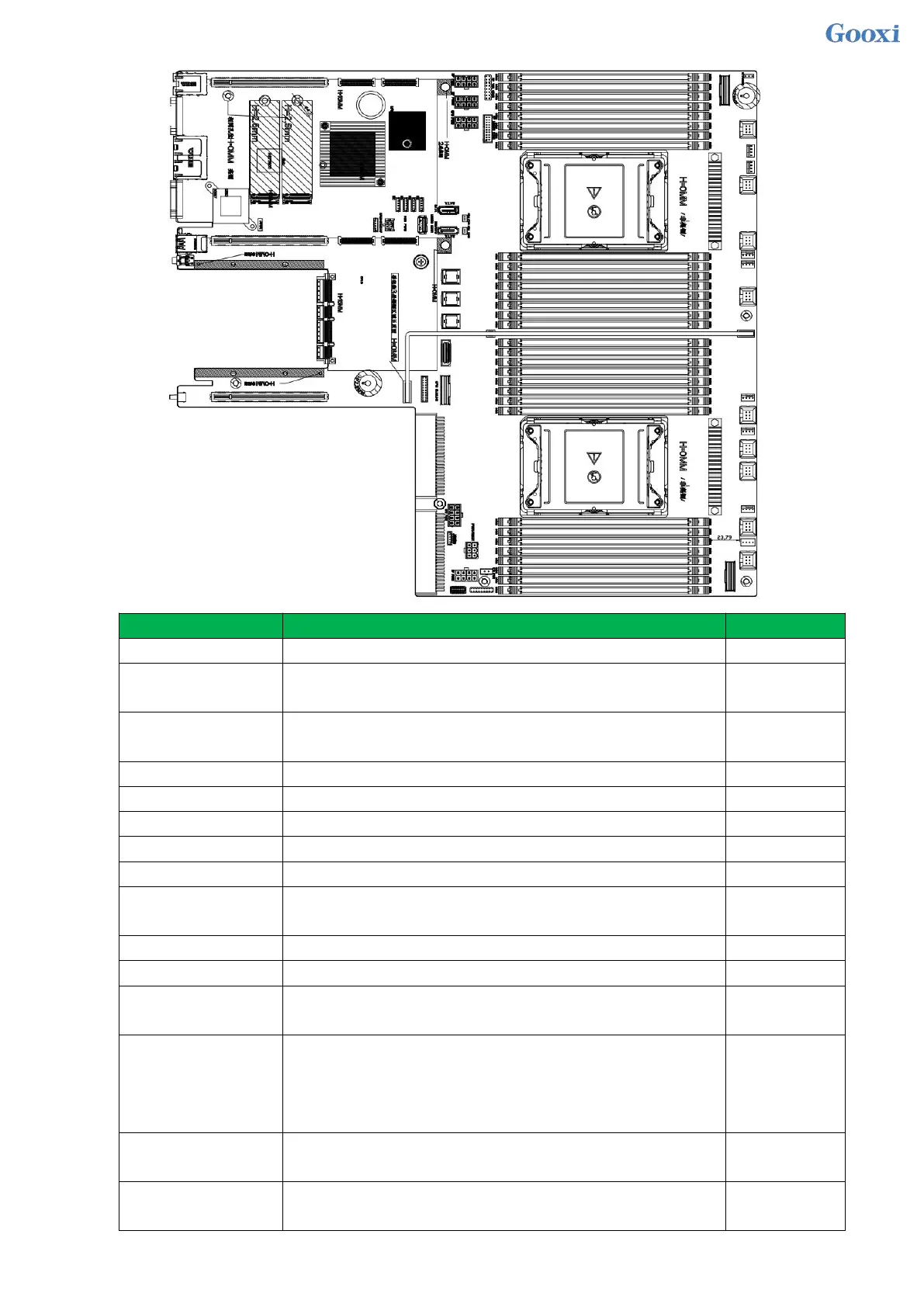

Name
Remarks
Default
J16
BMC_UART5, BMC debug serial port
PJ1
Used for CPU0 VR upgrade and programming, the
jumper cap is not connected by default
PJ2
For CPU1 VR upgrade and programming, the jumper
cap is not connected by default
J12
Front VGA mounting ear connector
J36
Front USB 3.0 connectors (x2)
J35
Built-in USB3.0 connector
J34
Rear USB3.0 connector q(x2)
J1
Trusted Platform Module (TPM)
SPI
SSD1 / SSD2
M.2 PCIE X2 CONN, only supports PCIe Only 2280
size
J15
CPLD JTAG Header, used to program CPLD program
J32
Front panel buttons, LED connectors
J48
2X10 BP HDD LED Connector (for Rear HDD BP
backplane)
J27
sSATA, SATA 3.0 Connection from PCH (8643
miniSAS HD with PCH sSATA SGPIO Pins) * Nebulas
3 Ver.A motherboard must use J27 and J48 to connect
RM2112-SHDB-D1 /D2 to turn on the hard drive light*
J29
SATA, SATA 3.0 Connection from PCH (8643 miniSAS
HD with PCH SATA SGPIO Pins)
J31
SATA, SATA 3.0 Connection from PCH (8643 miniSAS
HD with PCH SATA SGPIO Pins)
