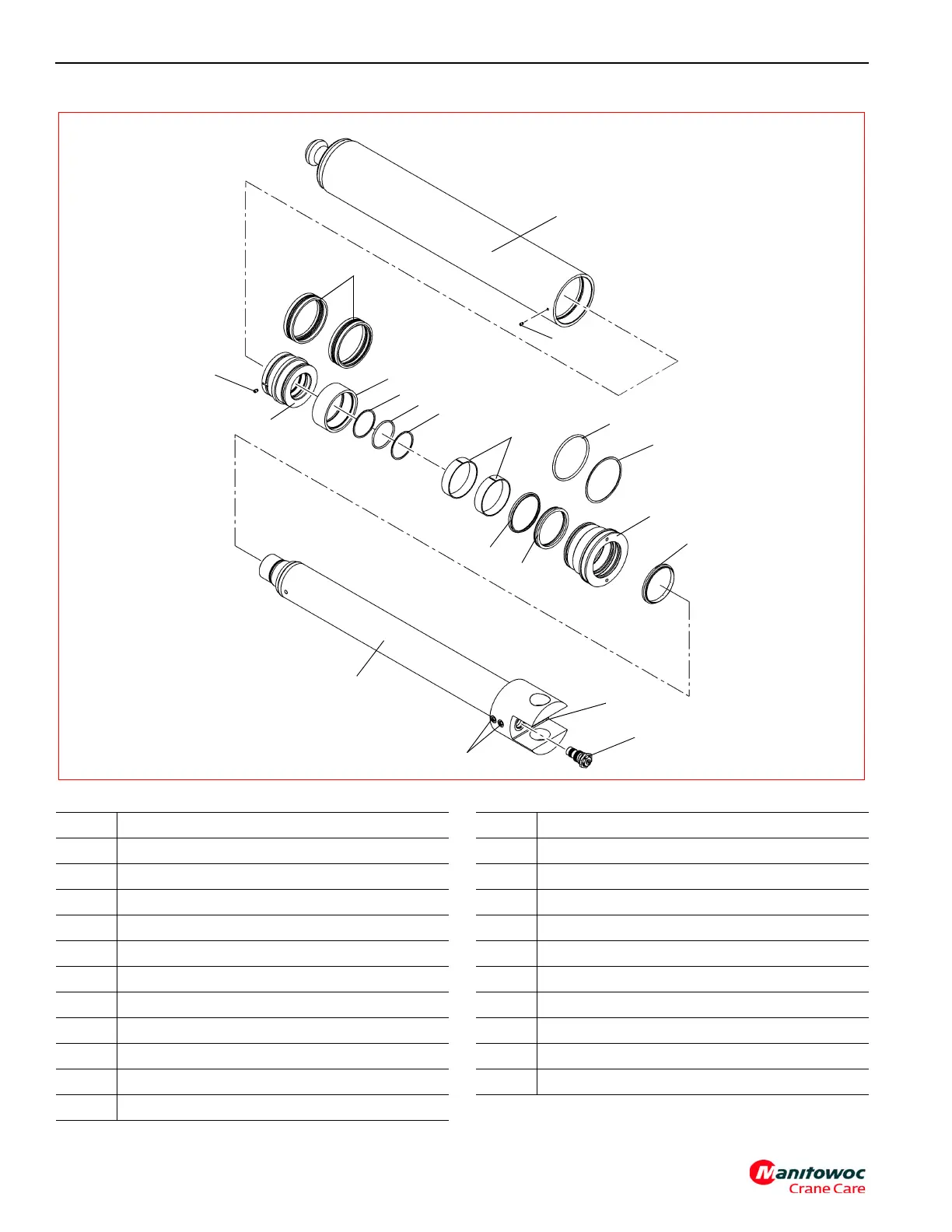

FIGURE 2-47
1
2
3
4
5
6
9
10
12
13
14
15
16
17
18
19
7281
21, 22
7, 8
19
20
Item Description
1Barrel
2Rod
3 Head
4Piston
5 Spacer
6 Check Valve
7 Setscrew
8 Insert
9Plug
10 Plug
11 Wiper Ring
Item Description
12 Rod Seal
13 Buffer Seal
14 Wear Ring
15 O-ring
16 Backup Ring
17 Seal
18 O-ring
19 Backup Ring
20 Setscrew
21 Insert
