Grove RT9130E - Page 267

Published 08-25-09, Control # 077-04 7-9
RT9130E SERVICE MANUAL POWER TRAIN
7
GROVE
6076
1
2
3, 4
5
6
7
8
9
17

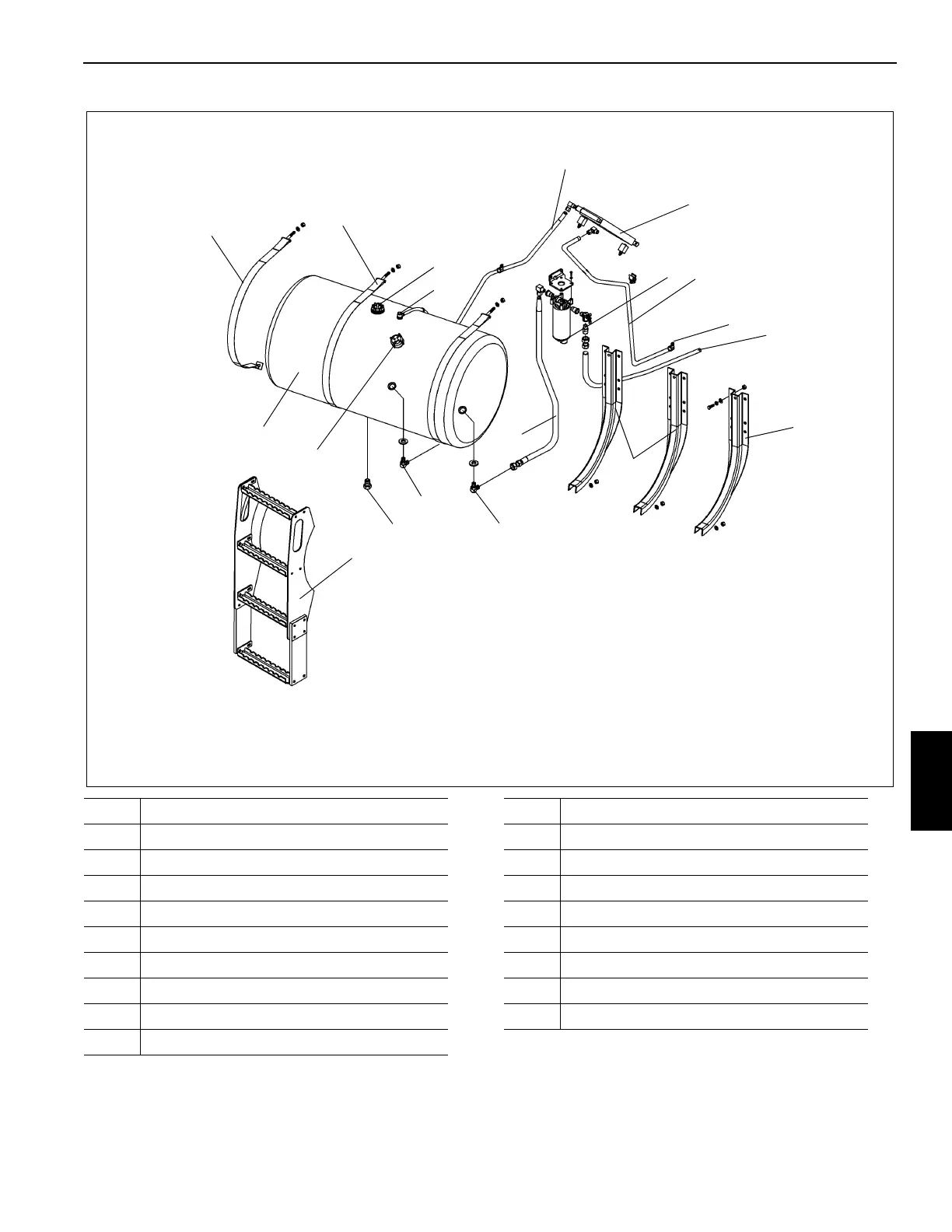

FIGURE 7-3
7
16
12
10
18
11
13
13
15
14
Item Description
1 Fuel Quantity Sending Unit
2 Filler Cap
3 Fuel Filter
4 Fuel-Water Separator
5 Fuel Supply
6 Fuel Return
7 Strap Assembly
8Steps
9 Fuel Tank
Item Description
10 Oil Cooler
11 Line To Engine
12 Line To Return Port On Tank
13 Bracket
14 Drain Port
15 Return
16 Supply
17 Vent
