7. servIce

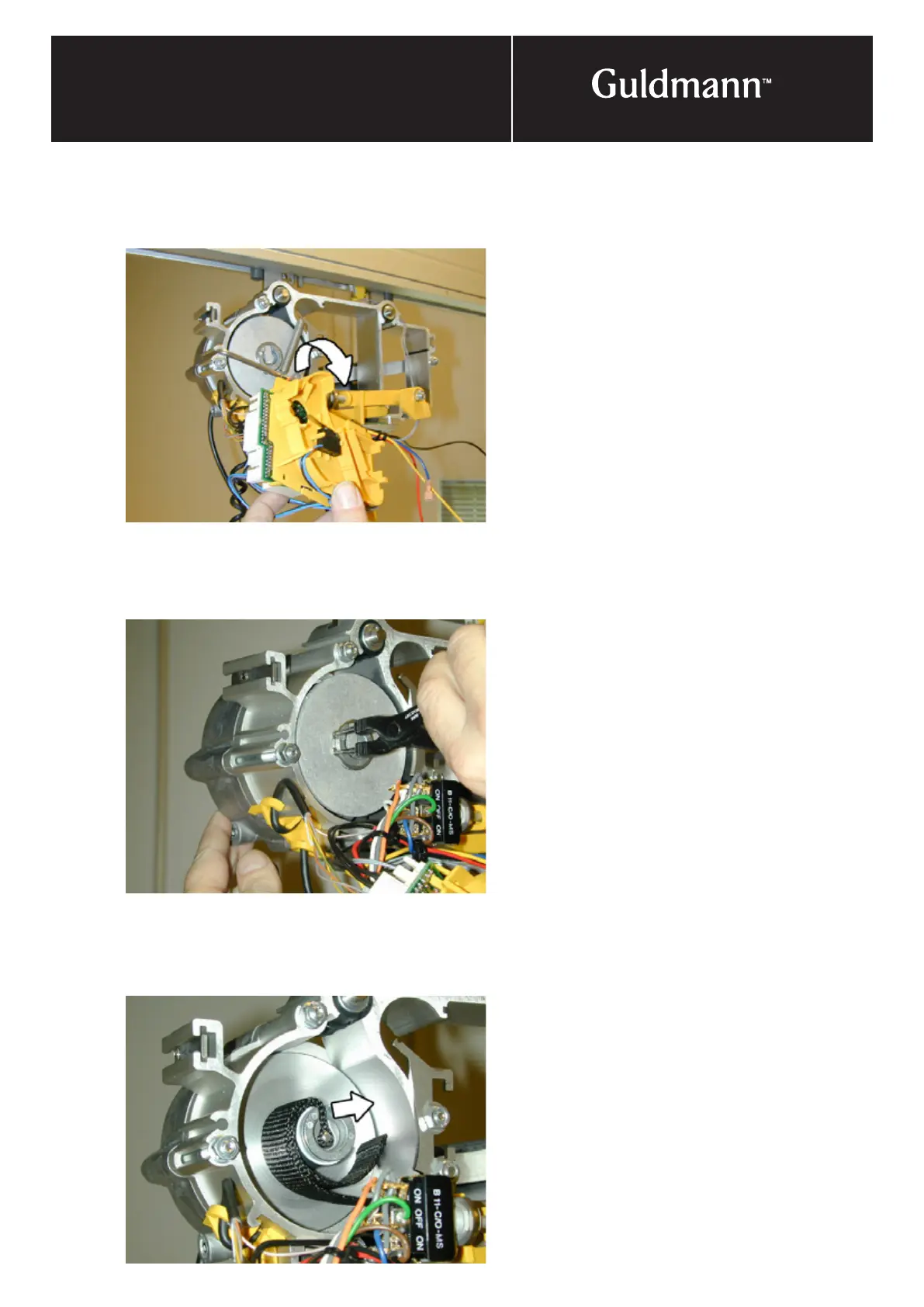

Tilt bracket for the printed circuit board
Tilt the bracket. Then demount strap tightener and spring.
Removal of retaining ring
Remove the retaining ring with retaining ring pliers
(no. 2 for the outer retaining rings, diameter 26 mm (1.02"
).
Demount the reel plate.
Demounting of strap
Demount the strap with sole and cylinder pin.
GH2 Service manual
