7. servIce

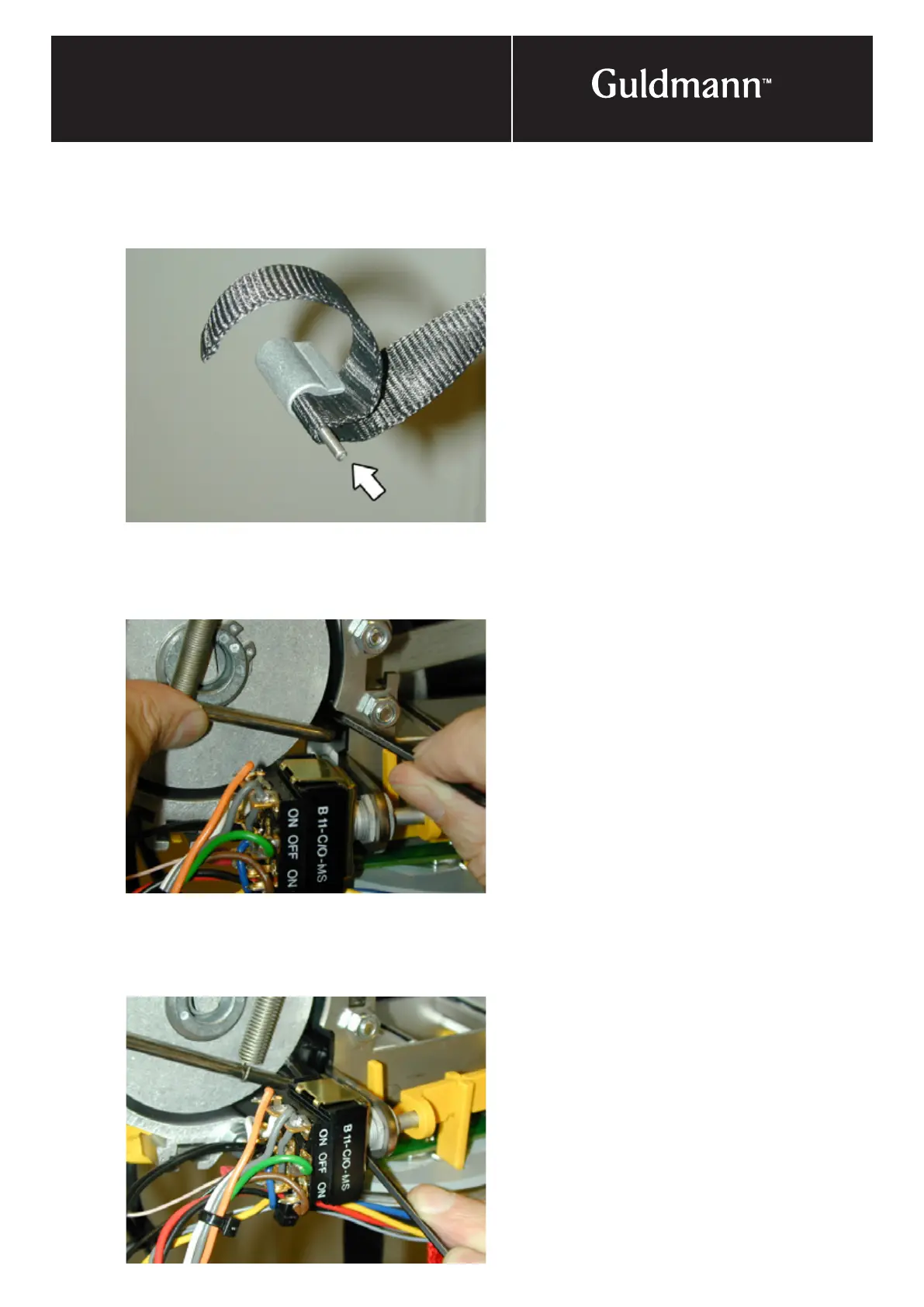

Mounting of new strap
Important: The strap must be mounted as shown in the
illustration.
Be sure to position the plane surface of contact anticlock-
wise (i.e. against the pulling direction); then secure the
strap with the original cylinder pin.
The length of the folded part of the strap should be
100 mm (4").
Mount the strap as shown in the previous illustration.
Mounting of strap tightener
Reinstall reel plate and retaining ring carefully.
Mount spring and strap tightener.
The strap tightener should be positioned underneath the
strap. If necessary, lift the strap with the 3 mm Allen key
when mounting the strap tightener.
Push down strap tightener
Before mounting bracket for the printed circuit board, push
the strap tightener slightly down as shown in the illustration.
If necessary, the 3 mm Allen key can be used as leverage
by placing it above the strap tightener and below the
emergency stop switch.
