GW Instek PSU Series User Manual

PSU Series User Manual
138

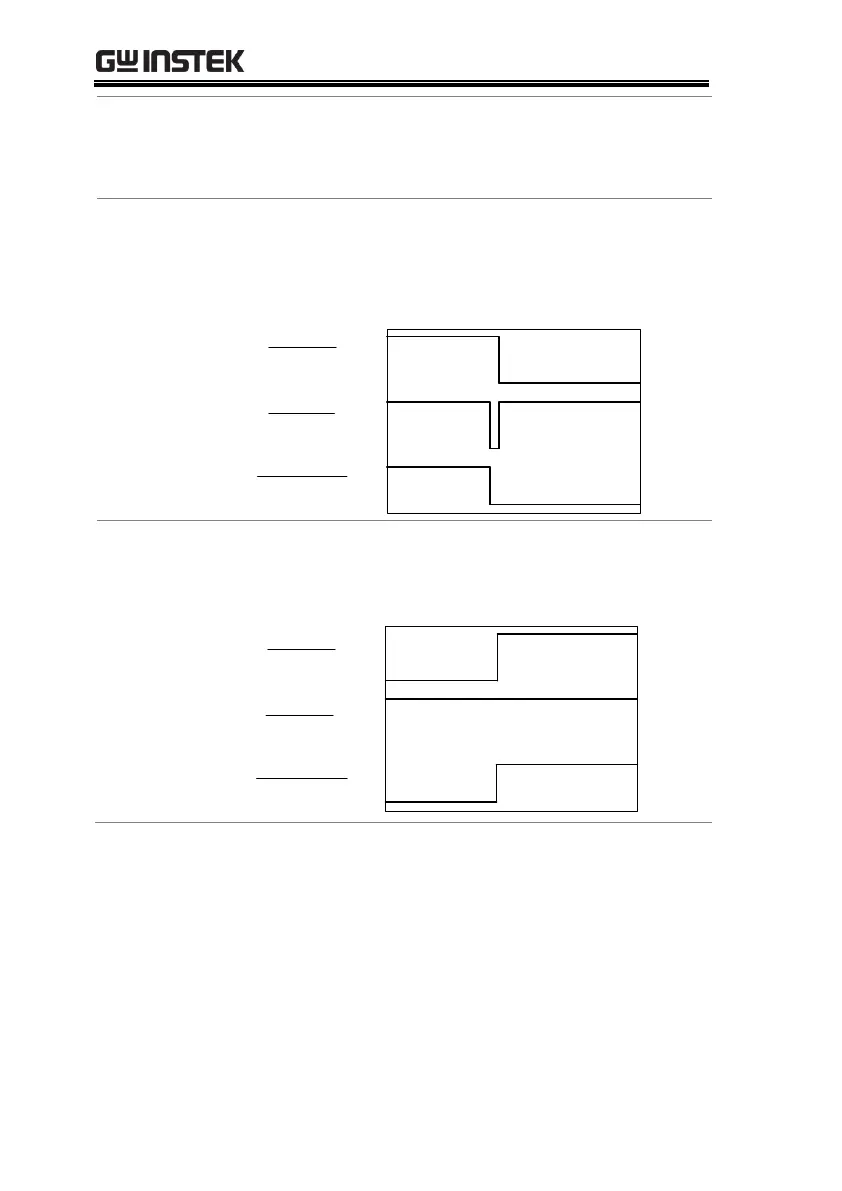

Timing diagrams
Below are 4 example timing diagrams covering a
number of scenarios. Note that pins 14~16 are all
active low.
CV MODE:
Output turned on
The diagram below shows the timing diagram
when the output is turned on when the PSU is set
to CV mode.
CV status
H
L
CC status
H
L
Output status
H
L
CV MODE:
Output turned off
The diagram below shows the output status lines
when the output is turned off in CV mode.
CV status
H
L
CC status
H
L
Output status
OFF
ON
