ANALOG CONTROL
139
CC MODE:
Output turned on

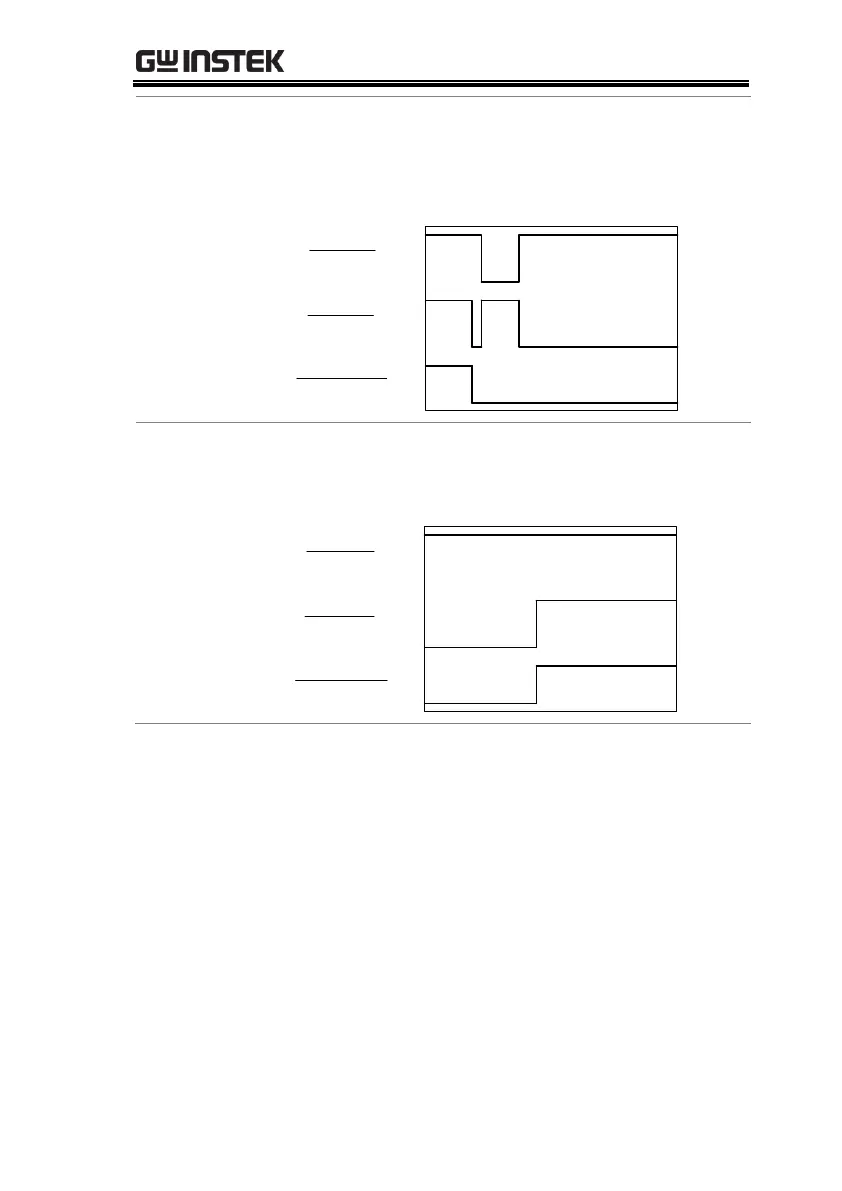

The diagram below shows the timing diagram
when the output is turned on when the PSU is set
to CC mode.
CV status
H
L
CC status
H
L
Output status
H
L
CC MODE:
Output turned off
The diagram below shows the output status lines
when the output is turned off in CC mode.
CV status
H
L
CC status
H
L
Output status
H
L
