PSU Series User Manual
64
WARNING
Ensure the output is off before connecting any sense
cables.
Use sense cables with a voltage rating exceeding the
isolation voltage of the power supply.
Never connect sensing cables when the output is on.
Electric shock or damage to the power supply could
result.
Note
Be sure to remove the sense jumpers from the remote
sense connector so the unit is not using local sensing.

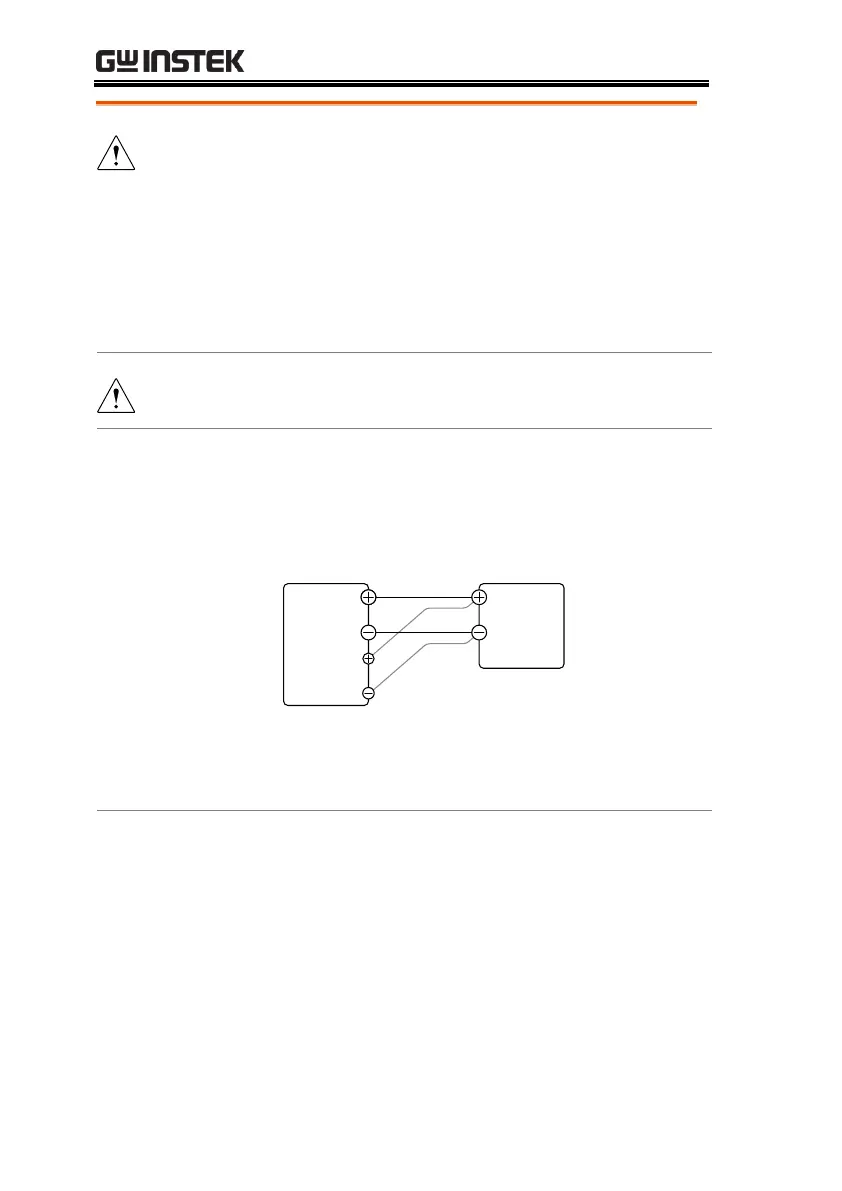

Single Load
1. Connect the S+ terminal to the positive
potential of the load. Connect the S- terminal to
the negative potential of the load.
Output
S+
S-
PSU
Output
Load
Input
Input
Page 61
2. Operate the instrument as normal.
See the Basic Operation chapter for
details.
Page 49
Parallel PSU
Units
1. Connect the S+ terminals to the positive
potential of the load. Connect the S- terminals
to the negative potential of the load.
