GW Instek PSU Series User Manual

OPERATION
65
Output
S+
S-
PSU #2
Output
Output
S+
S-
PSU #1
Output
Load
Input
Input
Page 61
2. Operate the instrument as normal.
See the Parallel Operation chapter
for details.
Page 68

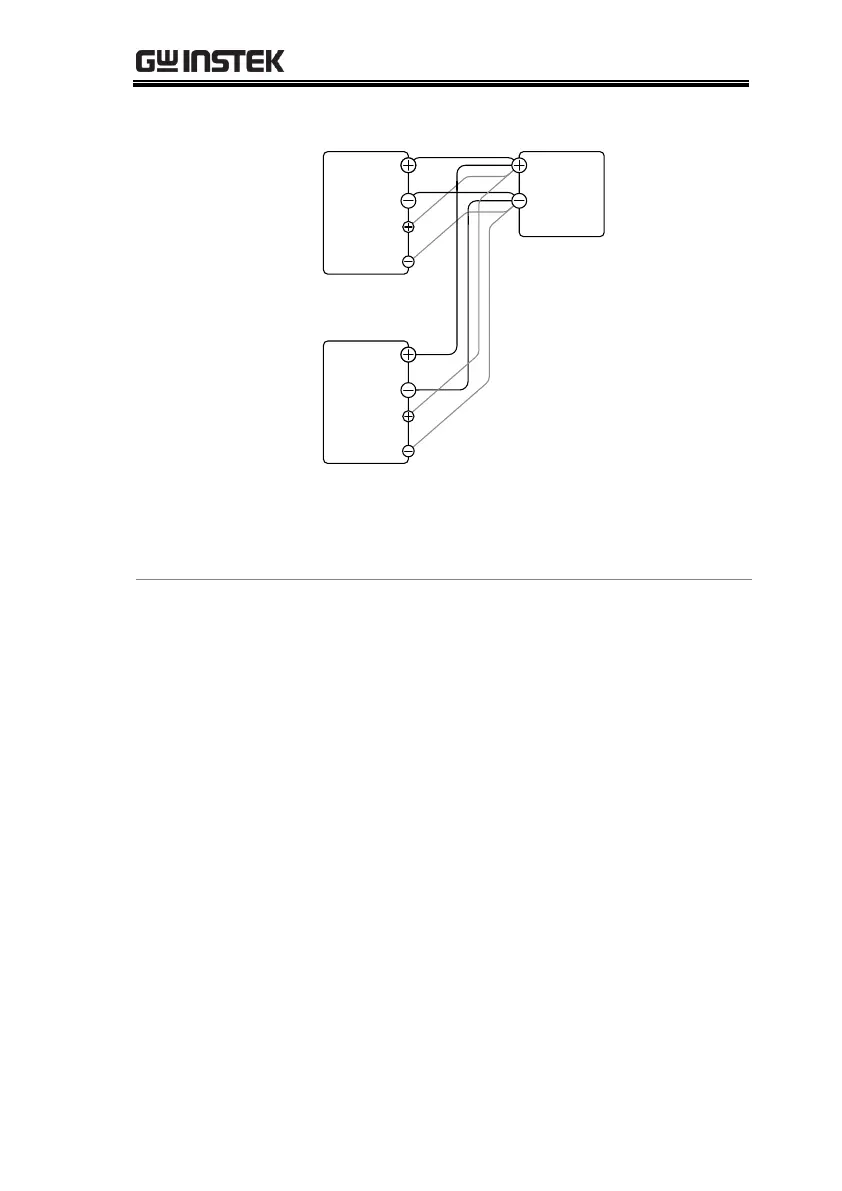

Serial PSU Units
1. a. Connect the 1
st
S+ terminal to the positive
potential of the load.
b. Connect the 1
st
S- terminal to the positive
output terminal of the second PSU unit.
c. Connect the 2
nd
S+ terminal to the positive
terminal of the second PSU unit.
d. Connect the 2
nd
S- terminal to negative
terminal of the load.
