Haemonetics Cell Saver Elite+ - Installing the Collection Bag Harness

110 Chapter 6
P/N 130859-US, Manual Revision: AA Haemonetics
®
Cell Saver
®
Elite
®
+ User Manual

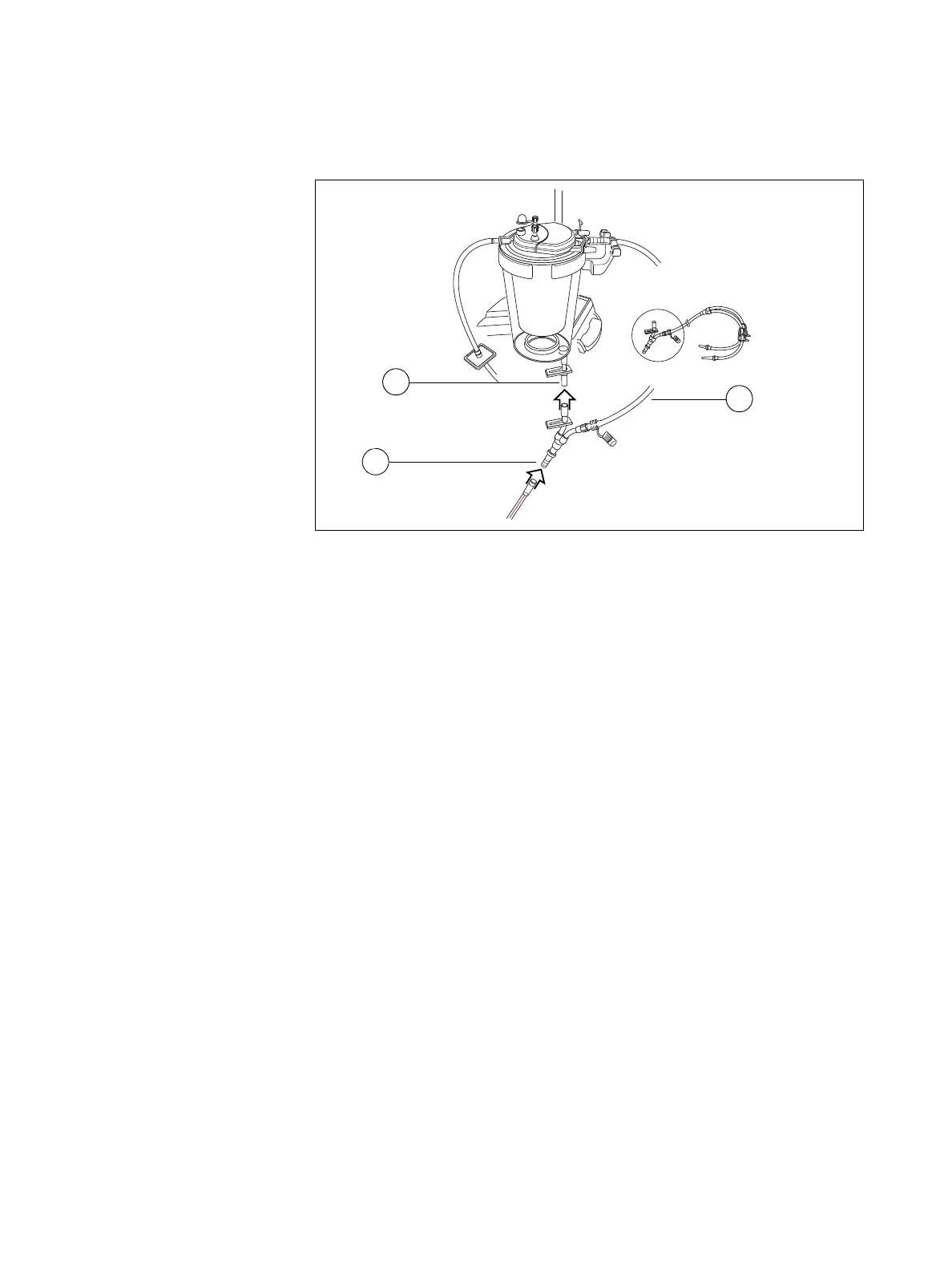

Figure 55, Blood bag adaptor harness
4. Close the clamps on both blood bag lines.
5. Hang the blood bag(s) on one of the top hooks of the right IV pole.
6. Spike the blood bag(s).
7. Open the clamp on the line leading to the blood bag(s).
Installing the
Collection Bag
Harness
Follow the steps below to install the collection bag harness:
1. Disconnect the effluent line tubing from the waste bag.
2. Connect the effluent line tubing to the effluent line connection on the
collection bag harness.
3. Cap off the waste bag, using the cap removed from the collection bag
harness.
4. Hang one collection bag on one of the waste bag pins.
5. Hang the other collection bag on a different waste bag pin.
6. Hang the air bag on the remaining waste bag pin.
7. Close the red ratchet clamps on the collection bags.
8. Ensure that the white ratchet clamps are open.
2.
1.
3.
1. Reservoir drain port
connection
2. Red line connection
3. Line to blood bag
