Haemonetics Cell Saver Elite+ - Reservoir, A&A Line, and Vacuum Line

Disposable Components Description 51
Haemonetics
®
Cell Saver
®
Elite
®
+ User Manual P/N 130859-US, Manual Revision: AA
Reservoir
Reservoir
The collection reservoir holds the unprocessed salvaged blood from the field.
The top of the reservoir contains a vacuum connection and three filtered inlet
ports for A&A line and post-op suction set connections. The reservoir also has
a drain port on the bottom and an internal filter. It connects to the processing
set via the reservoir drain port.

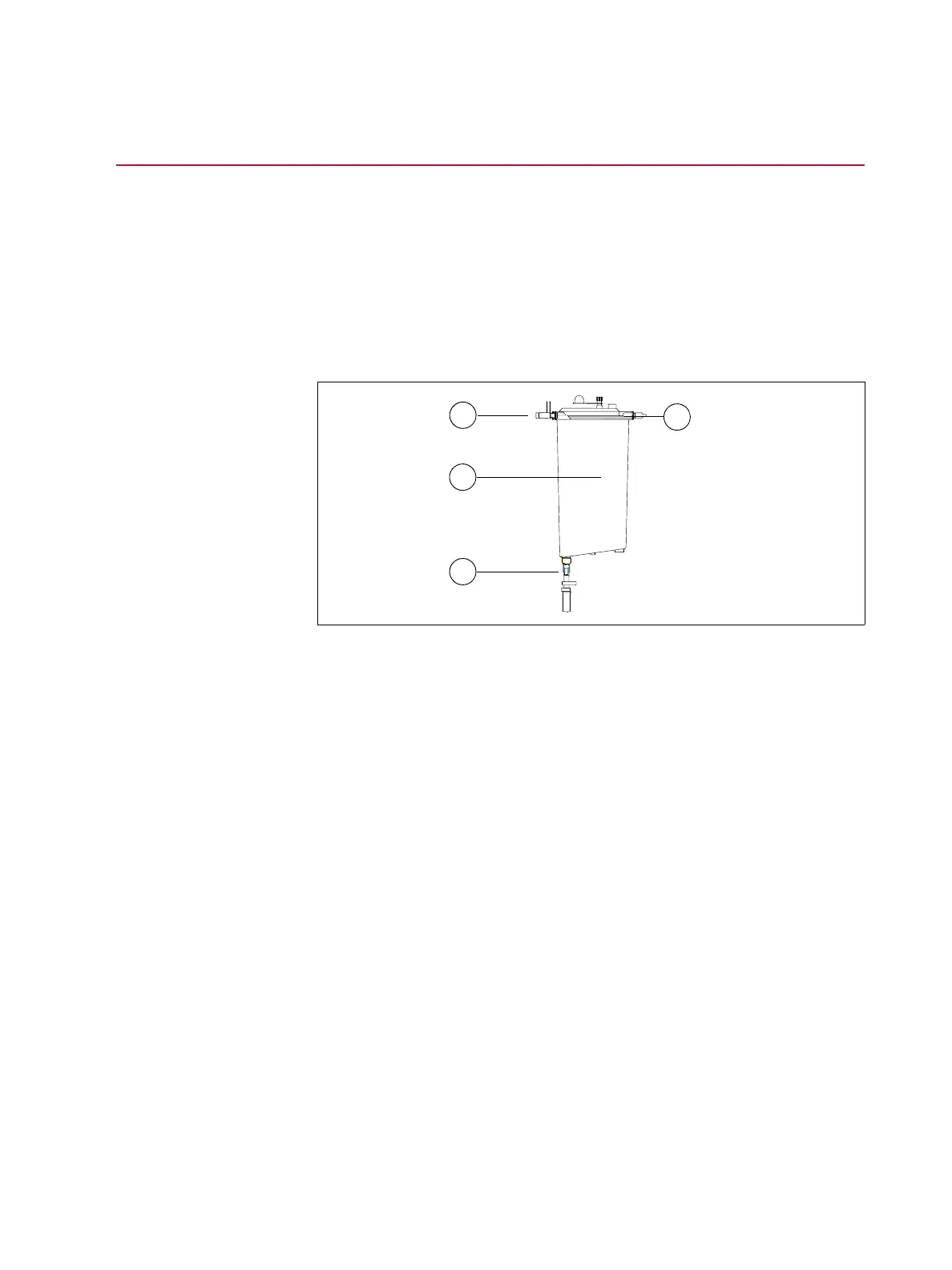

Figure 23, Example of a reservoir
1.
2.
3.
4.
1. Filtered inlet ports (x3)
2. Reservoir
3. Reservoir drain port
4. Vacuum line connection
