Hanging the Waste Bag
To hang the waste bag:
1. Hang the waste bag on the pins on the left side of the device.
2. Verify that the waste bag is securely connected to the effluent line.
3. Ensure that the waste bag drain port is completely closed.

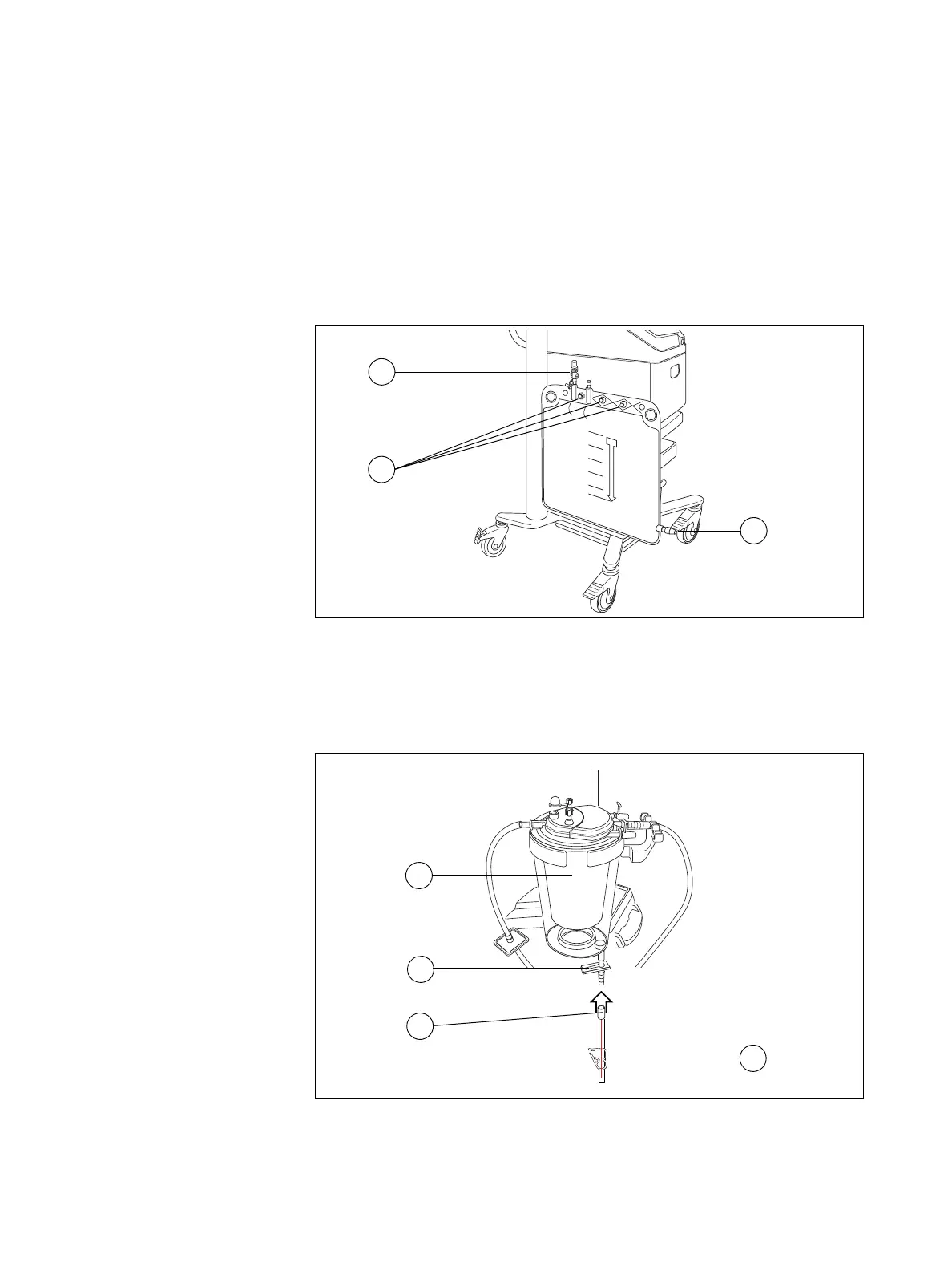

Figure 40, Hanging the waste bag
Connecting the
Reservoir
1. Aseptically connect the red line to the reservoir drain port.
2. Open the reservoir drain port slide clamp.
Figure 41, Red line connected to the reservoir drain port
2.
1.
3.
1. Waste bag pins
2. Effluent tubing
connection
3. Waste bag drain port
1.
2.
3.
4.
1. Reservoir
2. Reservoir drain port slide
clamp
3. Red line connection
4. Red line ratchet clamp
