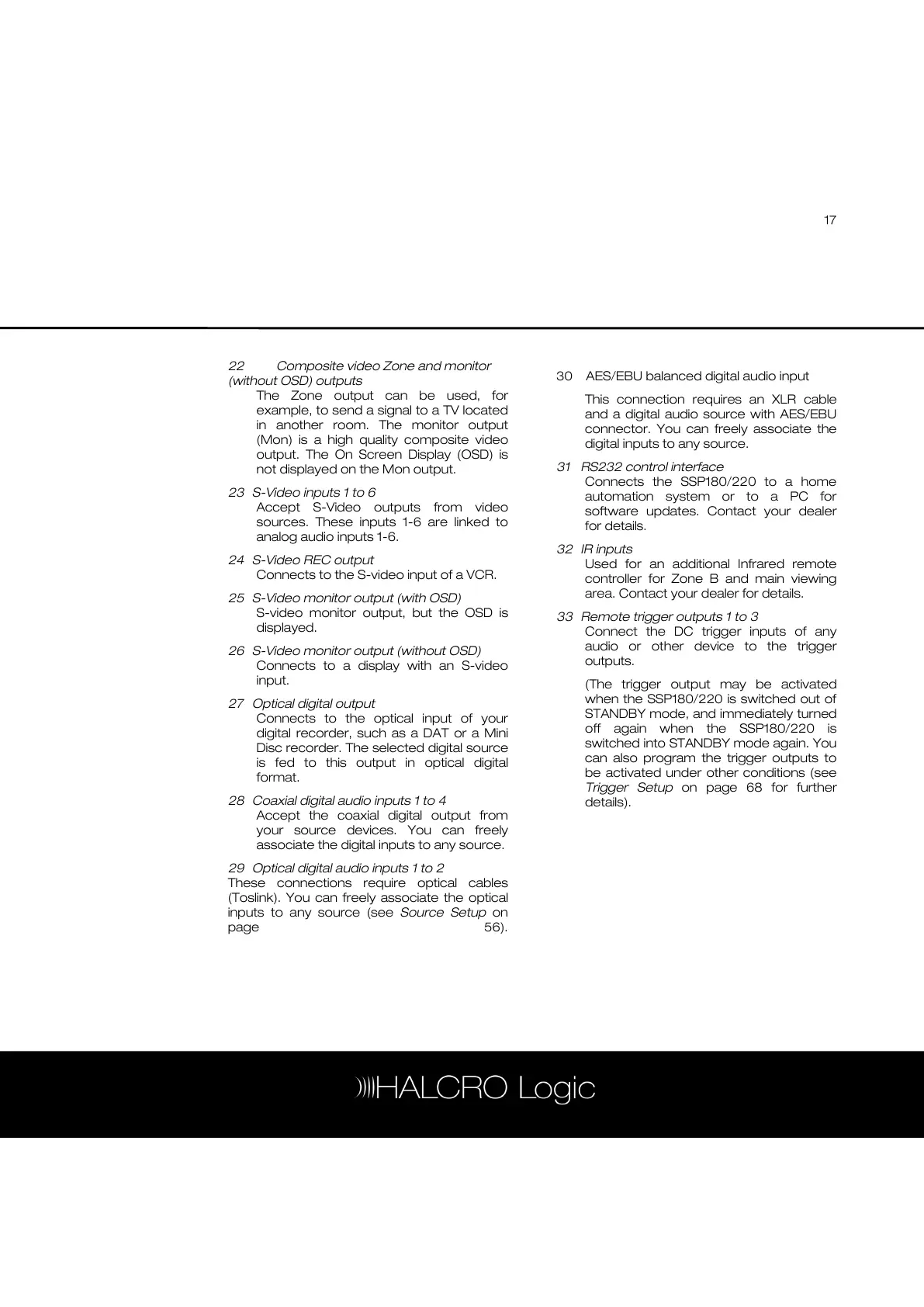

17
22 Composite video Zone and monitor
(without OSD) outputs
The Zone output can be used, for
example, to send a signal to a TV located
in another room. The monitor output
(Mon) is a high quality composite video
output. The On Screen Display (OSD) is
not displayed on the Mon output.
23 S-Video inputs 1 to 6
Accept S-Video outputs from video
sources. These inputs 1-6 are linked to
analog audio inputs 1-6.
24 S-Video REC output
Connects to the S-video input of a VCR.
25 S-Video monitor output (with OSD)
S-video monitor output, but the OSD is
displayed.
26 S-Video monitor output (without OSD)
Connects to a display with an S-video
input.
27 Optical digital output
Connects to the optical input of your
digital recorder, such as a DAT or a Mini
Disc recorder. The selected digital source
is fed to this output in optical digital
format.
28 Coaxial digital audio inputs 1 to 4
Accept the coaxial digital output from
your source devices. You can freely
associate the digital inputs to any source.
29 Optical digital audio inputs 1 to 2
These connections require optical cables
(Toslink). You can freely associate the optical
inputs to any source (see Source Setup on
page 56).
30 AES/EBU balanced digital audio input
This connection requires an XLR cable
and a digital audio source with AES/EBU
connector. You can freely associate the
digital inputs to any source.
31 RS232 control interface
Connects the SSP180/220 to a home
automation system or to a PC for
software updates. Contact your dealer
for details.
32 IR inputs
Used for an additional Infrared remote
controller for Zone B and main viewing
area. Contact your dealer for details.
33 Remote trigger outputs 1 to 3
Connect the DC trigger inputs of any
audio or other device to the trigger
outputs.
(The trigger output may be activated
when the SSP180/220 is switched out of
STANDBY mode, and immediately turned
off again when the SSP180/220 is
switched into STANDBY mode again. You
can also program the trigger outputs to
be activated under other conditions (see
Trigger Setup on page 68 for further
details).
