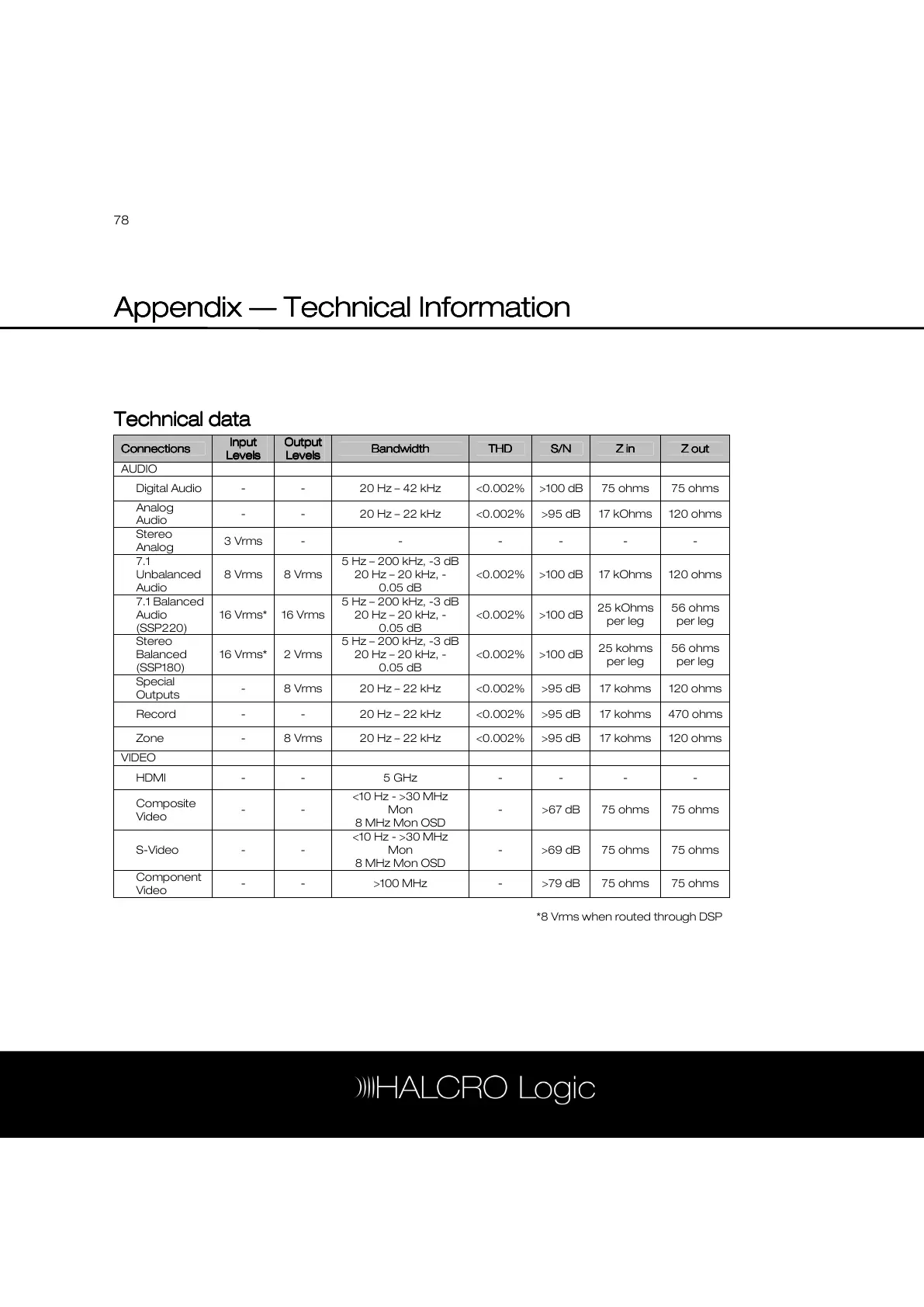

Halcro SSP220 - Appendix; Technical Data

78
Appendix
A
ppendix Appendix
Appendix —
——
— Technical
Technical Technical
Technical Information
Information Information
Information
Technical data
Technical dataTechnical data
Technical data
Connections
ConnectionsConnections
Connections
Input
Input Input
Input
Levels
LevelsLevels
Levels
Output
Output Output
Output
Levels
LevelsLevels
Levels
Bandwidth
BandwidthBandwidth
Bandwidth THD
THDTHD
THD S/N
S/NS/N
S/N Z in
Z inZ in
Z in Z out
Z outZ out
Z out
AUDIO
Digital Audio - - 20 Hz – 42 kHz <0.002% >100 dB
75 ohms 75 ohms
Analog
Audio
- - 20 Hz – 22 kHz <0.002% >95 dB 17 kOhms 120 ohms
Stereo
Analog
3 Vrms - - - - - -
7.1
Unbalanced
Audio
8 Vrms 8 Vrms
5 Hz – 200 kHz, -3 dB
20 Hz – 20 kHz, -
0.05 dB
<0.002% >100 dB
17 kOhms 120 ohms
7.1 Balanced
Audio
(SSP220)
16 Vrms*
16 Vrms
5 Hz – 200 kHz, -3 dB
20 Hz – 20 kHz, -
0.05 dB
<0.002% >100 dB
25 kOhms
per leg
56 ohms
per leg
Stereo
Balanced
(SSP180)
16 Vrms*
2 Vrms
5 Hz – 200 kHz, -3 dB
20 Hz – 20 kHz, -
0.05 dB
<0.002% >100 dB
25 kohms
per leg
56 ohms
per leg
Special
Outputs
- 8 Vrms 20 Hz – 22 kHz <0.002% >95 dB 17 kohms 120 ohms
Record - - 20 Hz – 22 kHz <0.002% >95 dB 17 kohms 470 ohms
Zone - 8 Vrms 20 Hz – 22 kHz <0.002% >95 dB 17 kohms 120 ohms
VIDEO
HDMI - - 5 GHz - - - -
Composite
Video
- -
<10 Hz - >30 MHz
Mon
8 MHz Mon OSD
- >67 dB 75 ohms 75 ohms
S-Video - -
<10 Hz - >30 MHz
Mon
8 MHz Mon OSD
- >69 dB 75 ohms 75 ohms
Component
Video
- - >100 MHz - >79 dB 75 ohms 75 ohms
*8 Vrms when routed through DSP
