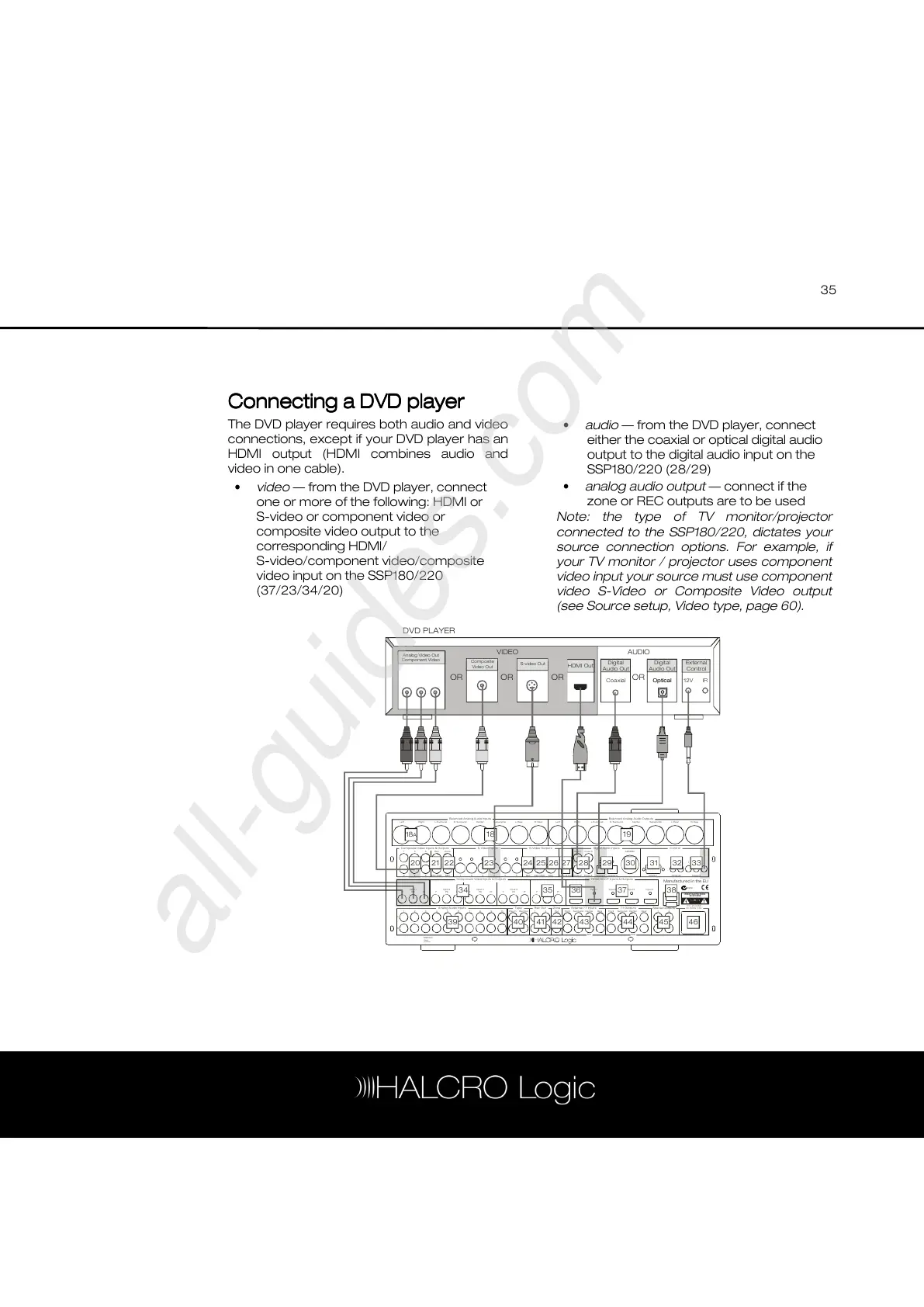

Connecting a DVD player
Connecting a DVD playerConnecting a DVD player
Connecting a DVD player
The DVD player requires both audio and video
connections, except if your DVD player has an
HDMI output (HDMI combines audio and
video in one cable).
• video — from the DVD player, connect
one or more of the following: HDMI or
S-video or component video or
composite video output to the
corresponding HDMI/
S-video/component video/composite
video input on the SSP180/220
(37/23/34/20)
• audio — from the DVD player, connect
either the coaxial or optical digital audio
output to the digital audio input on the
SSP180/220 (28/29)
• analog audio output — connect if the
zone or REC outputs are to be used
Note: the type of TV monitor/projector
connected to the SSP180/220, dictates your
source connection options. For example, if
your TV monitor / projector uses component
video input your source must use component
video S-Video or Composite Video output
(see Source setup, Video type, page 60).
