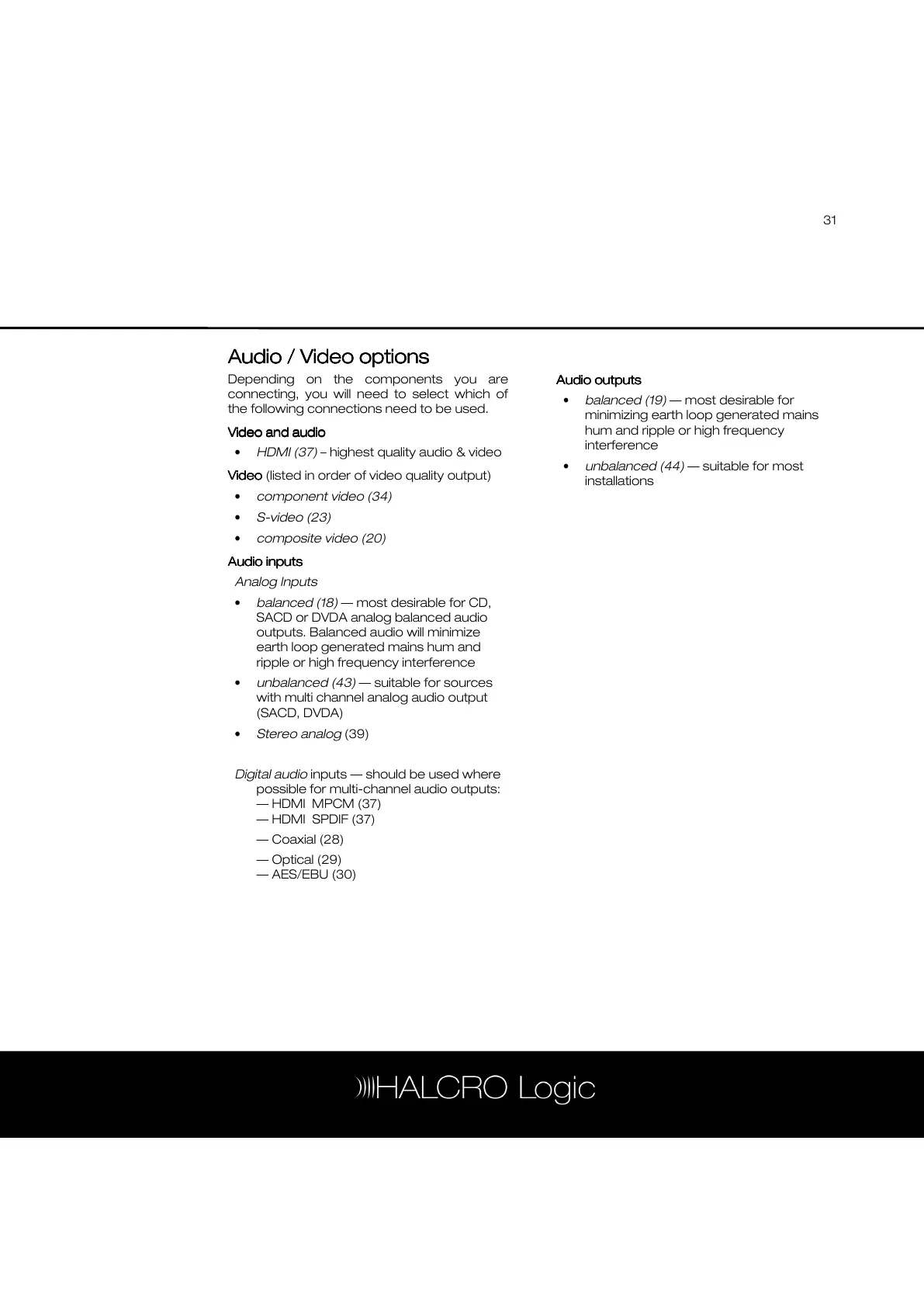

Halcro SSP220 - Audio; Video Options

31
Audio / Video options
Audio / Video optionsAudio / Video options
Audio / Video options
Depending on the components you are
connecting, you will need to select which of
the following connections need to be used.
Video and audio
Video and audioVideo and audio
Video and audio
• HDMI (37) – highest quality audio & video
Video
Video Video
Video (listed in order of video quality output)
• component video (34)
• S-video (23)
• composite video (20)
Audio inputs
Audio inputsAudio inputs
Audio inputs
Analog Inputs
• balanced (18) — most desirable for CD,
SACD or DVDA analog balanced audio
outputs. Balanced audio will minimize
earth loop generated mains hum and
ripple or high frequency interference
• unbalanced (43) — suitable for sources
with multi channel analog audio output
(SACD, DVDA)
• Stereo analog (39)
Digital audio inputs — should be used where
possible for multi-channel audio outputs:
— HDMI MPCM (37)
— HDMI SPDIF (37)
— Coaxial (28)
— Optical (29)
— AES/EBU (30)
Audio outputs
Audio outputsAudio outputs
Audio outputs
• balanced (19) — most desirable for
minimizing earth loop generated mains
hum and ripple or high frequency
interference
• unbalanced (44) — suitable for most
installations
