71

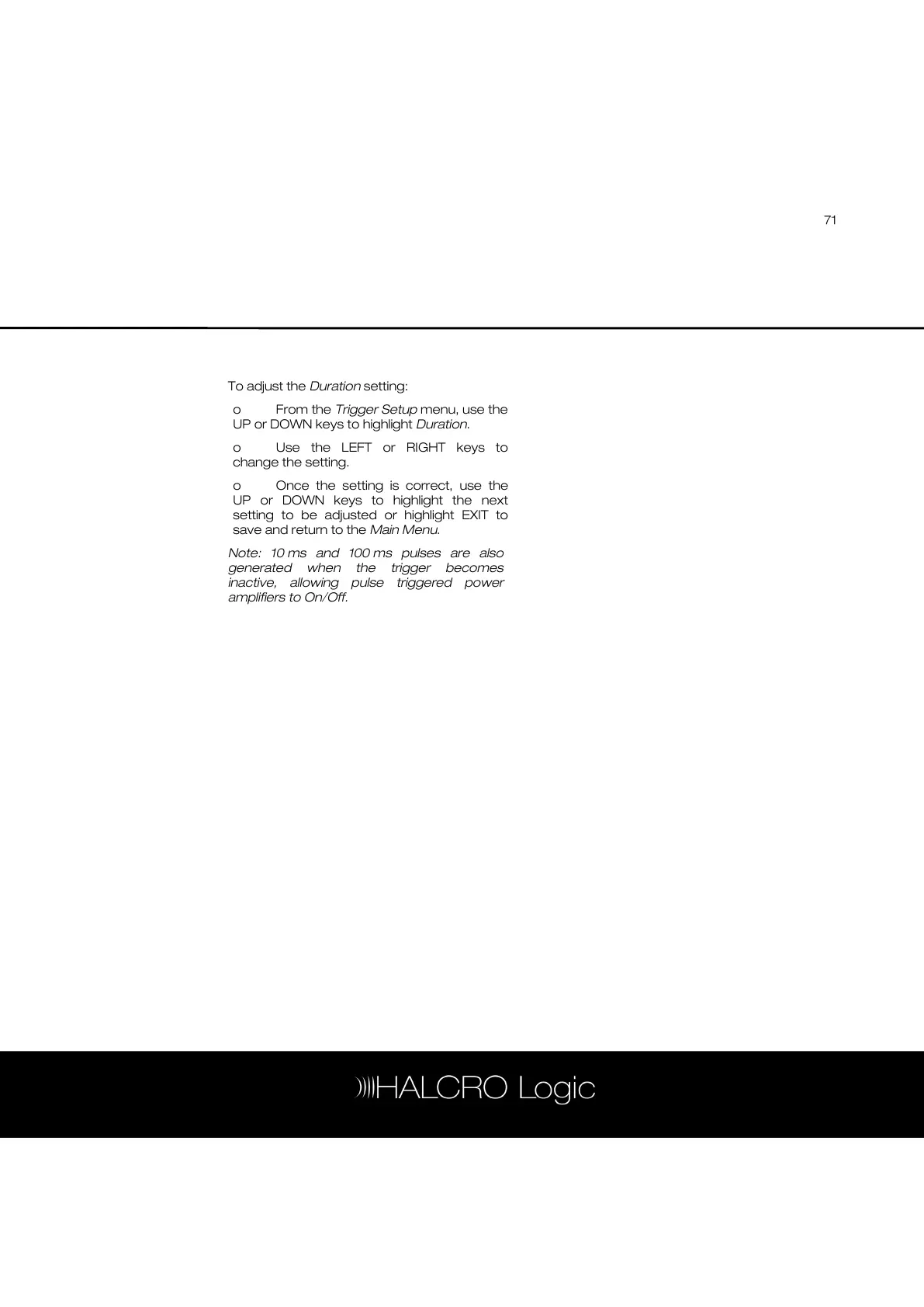

To adjust the Duration setting:
o From the Trigger Setup menu, use the
UP or DOWN keys to highlight Duration.
o Use the LEFT or RIGHT keys to
change the setting.
o Once the setting is correct, use the
UP or DOWN keys to highlight the next
setting to be adjusted or highlight EXIT to
save and return to the Main Menu.
Note: 10 ms and 100 ms pulses are also
generated when the trigger becomes
inactive, allowing pulse triggered power
amplifiers to On/Off.
