Harris ADC Device Server User’s Guide
3 Video Disk Configuration
The following example is a generic video disk. Your video disk may have slightly
different options. If necessary, refer to the User Notes for your device for complete
details on how to configure it.
Right-click on the configured device (see Figure 2-2 on page 2-4 and Figure 2-5 on
page 2-7), then choose Properties. A dialog box with multiple tabs appears. Use the left
and right arrows at the upper right to scroll through the other tabs. Each tab is
discussed in order here:
Video Disk Parameters

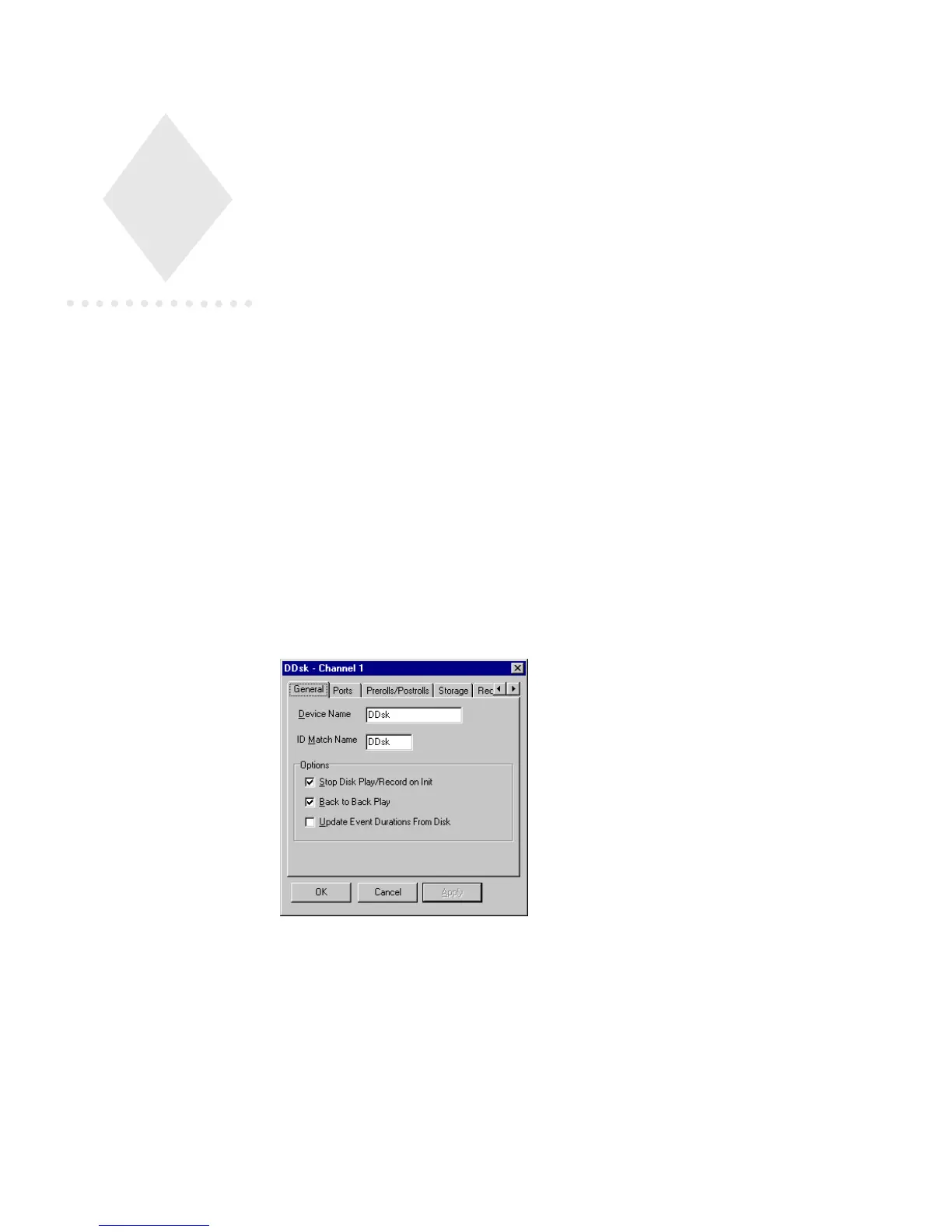

General Tab
Device Name
The device name identifies the disk port. The default name for standard video
disks is DISK. Enter the name by using up to 16 characters. When an event is
threaded, an extra character - the head number - is added to the end of the name.
