Harris ADC Device Server User’s Guide
6 M/C Switcher Configuration
The following example is a generic Master Control (M/C) switcher. Your switcher
may have slightly different options. If necessary, refer to the User Notes for your
device for complete details on how to configure it.

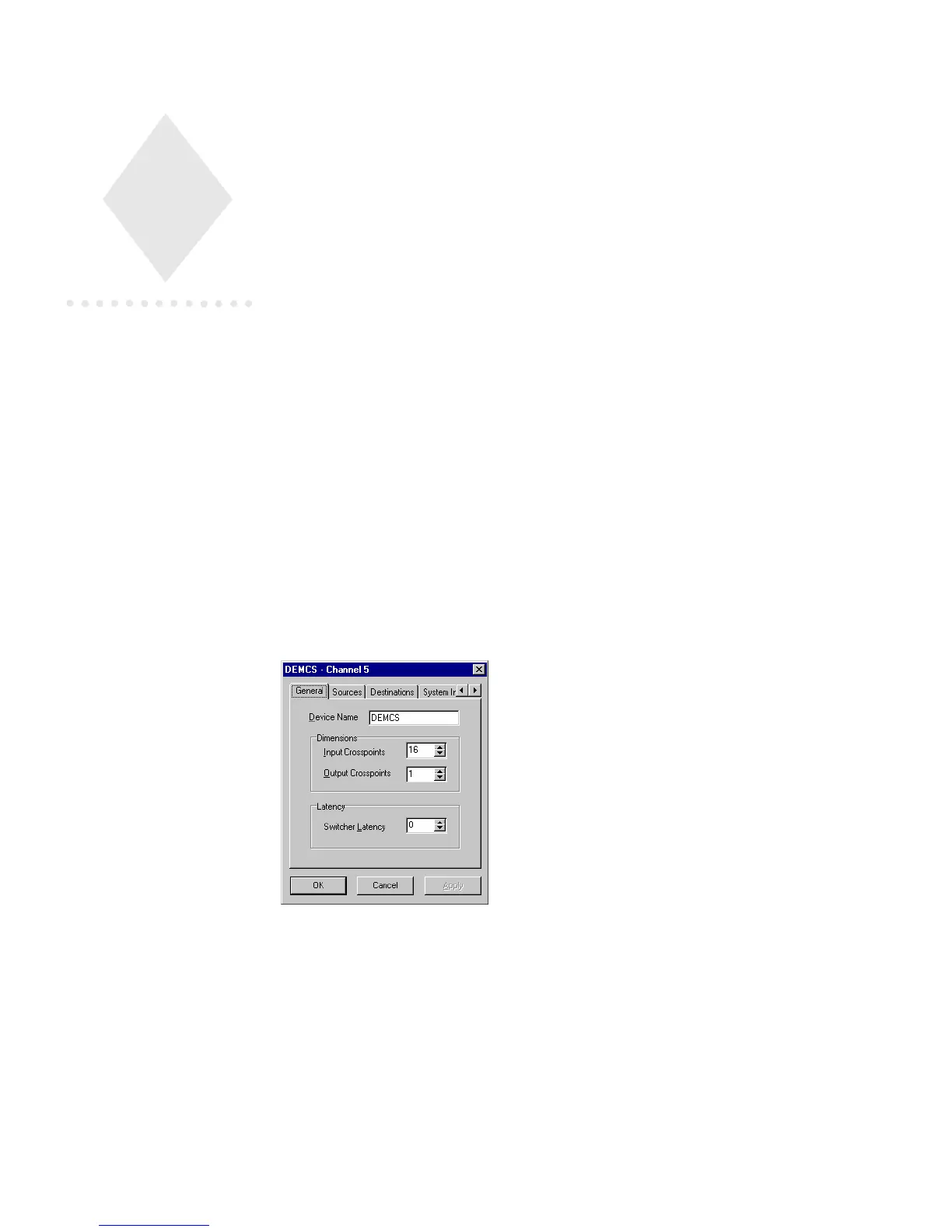

Right-click on the configured device (see Figure 2-2 on page 2-4 and Figure 2-5 on
page 2-7), then choose Properties. A dialog box with multiple tabs appears. Use the left
and right arrows at the upper right to scroll through the other tabs. Each tab is
discussed in order here:
M/C Switcher Parameters
General Tab
Device Name
Enter a name (using up to 16 characters) for the switcher. This name is used by the
automation system to identify the switcher. Systems with multiple switchers
should have each switcher assigned a unique name.
