Harris ADC Device Server User’s Guide
4 VTR Configuration
The following example is a generic video tape recorder (VTR). Your VTR may have
slightly different options. If necessary, refer to the User Notes for your device for
complete details on how to configure it.
Right-click on the configured device (see Figure 2-2 on page 2-4 and Figure 2-5 on
page 2-7), then choose Properties. A dialog box with multiple tabs appears. Use the left
and right arrows at the upper right to scroll through the other tabs. Each tab is
discussed in order here:

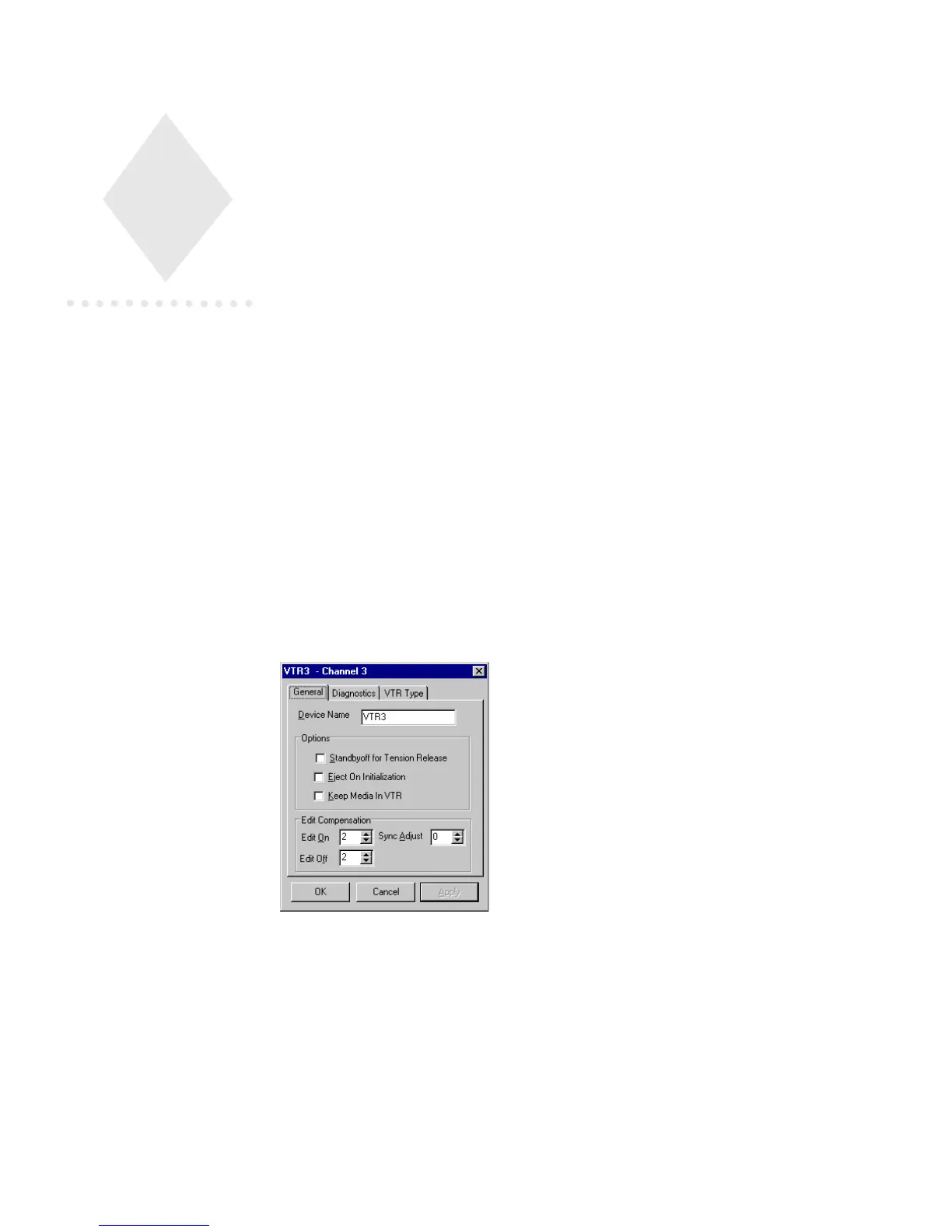

VTR Parameters
General Tab
Device Name
Enter a name for the VTR to help you identify the VTR during event transmission.
The name can have up to 16 characters. The device name has no relation to the ID
of any tape inserted in the VTR.
To Next Page
Loading...
General
