Harris ADC Device Server User’s Guide
Video Disk Configuration 3-13

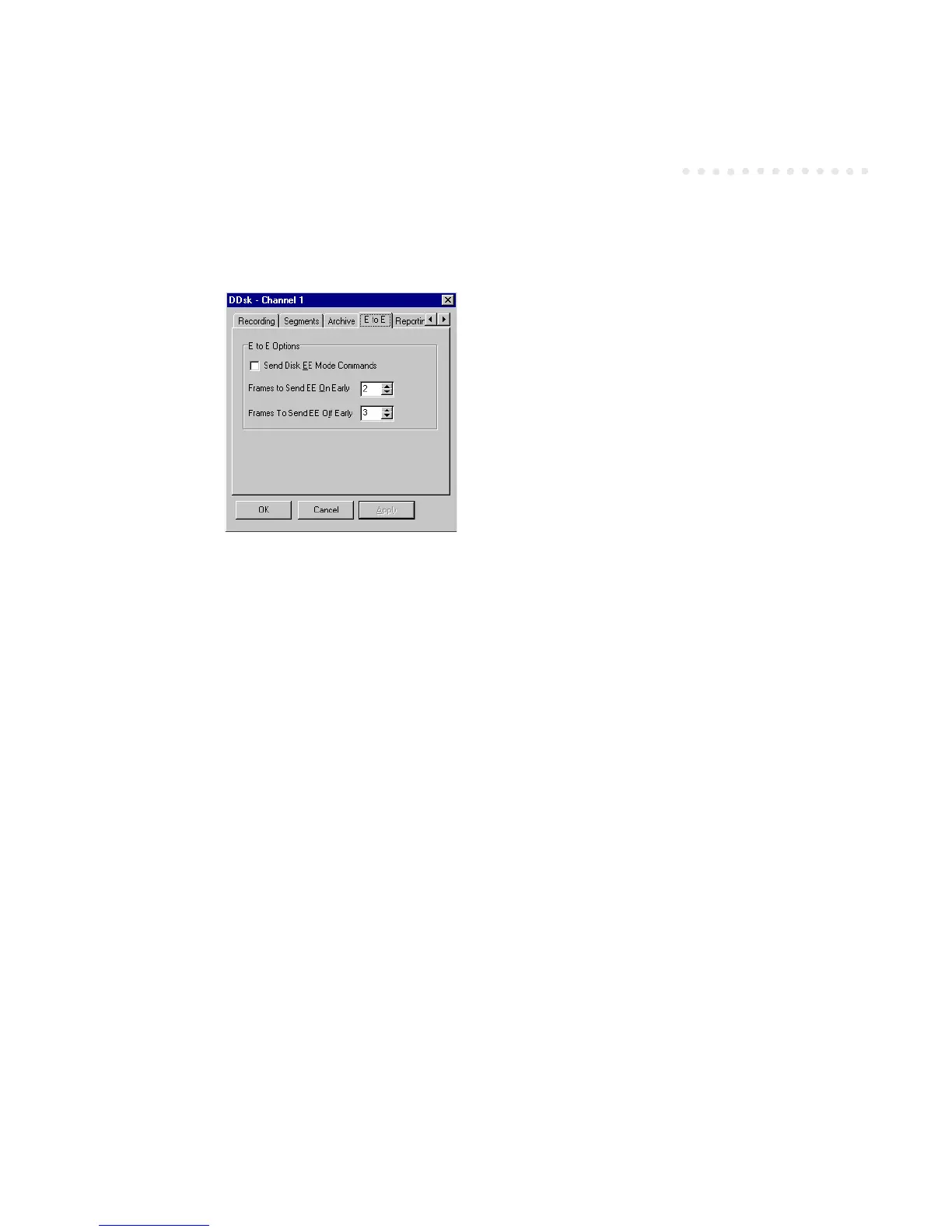

E to E Tab
E to E Options
Send Disk EE Mode Commands. Default: Disabled. These commands are only supported on
certain video disks. Do not enable unless you are sure they are supported in your version.
When enabled, ADC NT sends EE commands to the disk when it starts and stops playing.
This effectively makes the video disk a video player and insert switcher if the input to the
port is a primary video feed, and the video disk is controlled by a ‘break away’ list. Once
the video disk receives an EE command, it enters an EE controlled mode where it no
longer controls the internal switcher. If EE commands are then disabled, the video disk
software must be stopped and restarted so it will control the internal switcher
automatically again.
Frames to Send EE On Early. Enter the number of frames that the EE ON command should
be sent early. Default is 2. This box is ignored unless the Send Disk EE Mode Commands box
is enabled (checked).
Frames to Send EE Off Early. Enter the number of frames that the EE OFF command should
be sent early. Default is 3. This box is ignored unless the Send Disk EE Mode Commands box
is enabled (checked).
