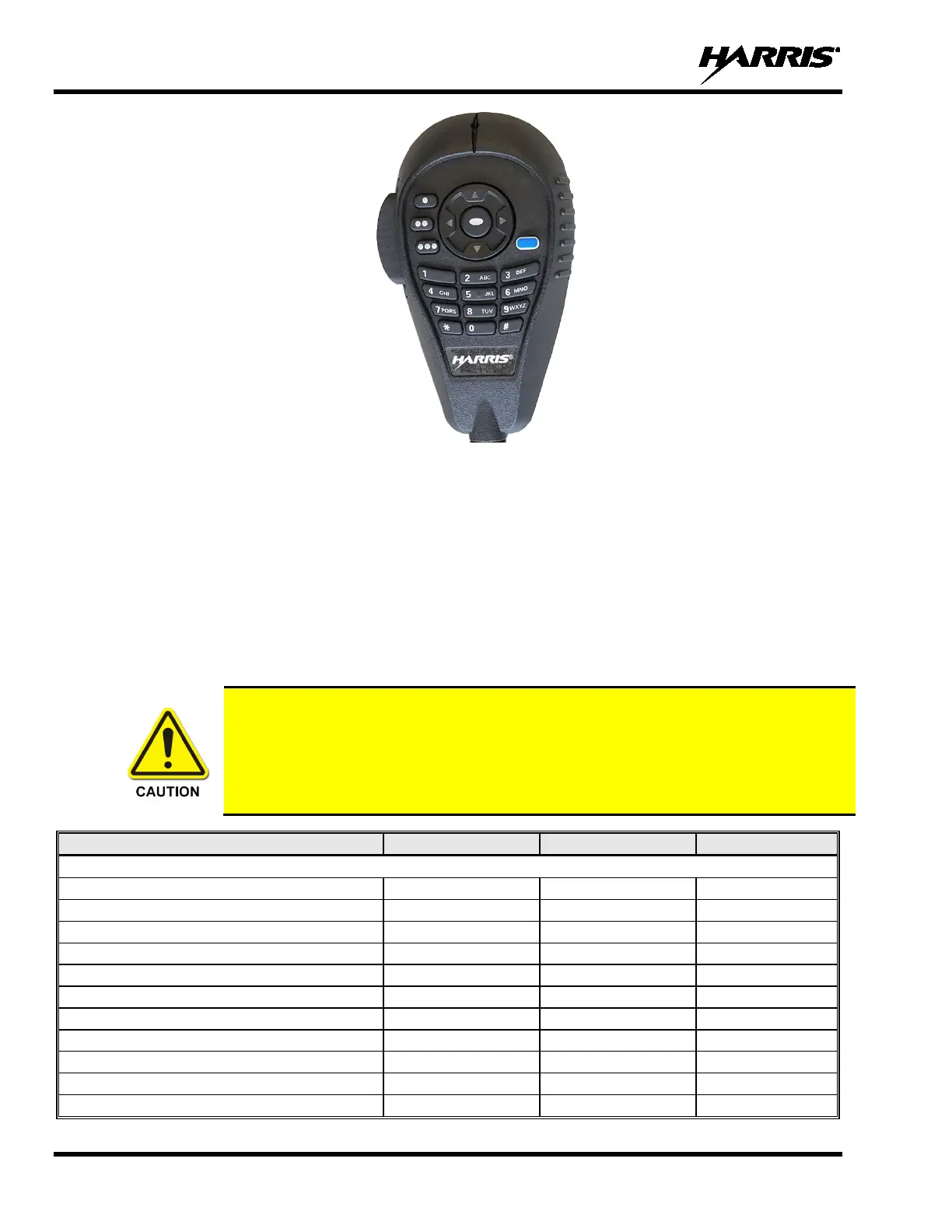

Figure 3-3: Keypad Mobile Microphone
3.3 CLEANING
Keep the exterior of the radio equipment clean. This includes the radio, control head, microphone, and
speaker. Periodically clean them using either the Light-duty cleaning procedure or in extreme cases the
Heavy-duty cleaning procedure as described in the maintenance manual.
3.4 OPTIONS AND ACCESSORIES
Only use Harris approved accessories. Refer to Harris’ Products and Services Catalog for the complete list
of options and accessories available.
Always use the correct options and accessories for the radio.
FCC limits 7 W ERP transmit limit for the 901 MHz – 902 MHz and 940 MHz – 941 MHz
.
If operating in these frequencies, the VCH should be set to low power (3W).
Do not use the following antennas for operation at 901 - 902 MHz and 940 - 941 MHz:
• 800/900 5 dB trilinear antenna, 14050-6611-01
• 900MHz 10 dB Gain Yagi, AN-025137-009
DESCRIPTION PART # XL-200M OPTION # XL-185M OPTION #
ANTENNAS
Antenna, Element, ¼, 0 dB, UHF-L AN-225003-001 XT-AN8B
Antenna, Element, ¼, 0 dB, UHF-H AN-225004-001 XT-AN8T
Antenna, Element, Low Profile, 0 dB, UHF-H AN-225004-004 XT-AN8C
Antenna, Element, ¼, 0 dB, VHF AN-225002-001 XT-AN5G
Antenna, Element, 3 dB, VHF AN-225002-003 XT-AN8R
Antenna, Element, NGP, 2 dB, VHF AN-225002-004 XT-AN8S
Antenna, Yagi, UHF-L 375-403 MHz,10 dB Gain AN-025137-003 XZ-AN8N XT-AN8N
Antenna, Yagi, UHF-L 406-440 MHz,9 dB Gain AN-025137-004 XZ-AN8M XT-AN8M
Antenna, Yagi, UHF-H 440-480 MHz,10 dB Gain AN-025137-005 XZ-AN8L XT-AN8L
Antenna, Yagi, UHF-H 470-512 MHz,10 dB Gain AN-025137-006
Antenna, Yagi, 700 MHz, 10 dB Gain AN-025137-007 XZ-AN8J XT-AN8J

Harris XL Series Specifications

General

Battery Type	Lithium-ion
GPS	Yes
Bluetooth	Yes
Dimensions	5.5 x 2.5 x 1.5 inches
Operating Temperature	-30°C to 60°C
Operating Modes	Analog
Encryption	AES
Modulation	FM
