Harris XL Series User Manual

14221-1850-2000, Rev. A
73

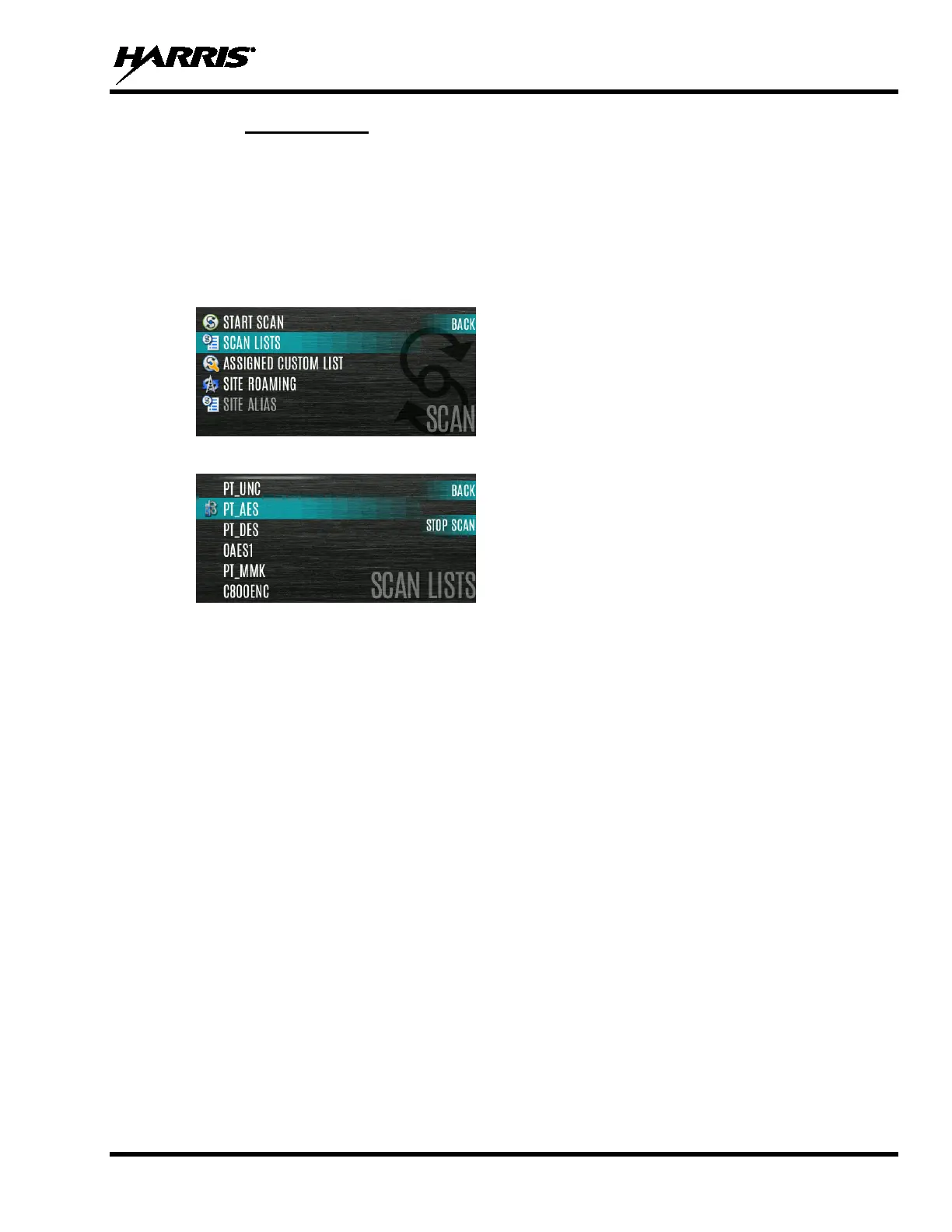

5.13.4 Edit Scan List
Depending on the scan list options selected via RPM2, you may be able to add or remove channels/groups
from the scan list.
To edit the scan list:
1. Press the Menu button.
2. Navigate to the SCAN menu.
3. Highlight SCAN LISTS and press the Group/Channel Select Knob.
4. Scroll up or down to highlight the scan list and press the Group/Channel Select Knob.
5. Scroll up or down to highlight channel/group.
6. Select OPTIONS.
7. Select ADD CHAN/DELETE CHAN, SET PRI1, SET PRI2, REMOVE PRI, or NUISANCE/ADD
BACK.
When a channel is not grayed out in the list, DELETE CHAN appears. When a channel/group is grayed
out (not in list), ADD CHAN appears.
8. Press the Group/Channel Select Knob to toggle selection.

Harris XL Series Specifications

General

Battery Type	Lithium-ion
GPS	Yes
Bluetooth	Yes
Dimensions	5.5 x 2.5 x 1.5 inches
Operating Temperature	-30°C to 60°C
Operating Modes	Analog
Encryption	AES
Modulation	FM
