Harris XL Series User Manual

14221-1850-2000, Rev. A
60

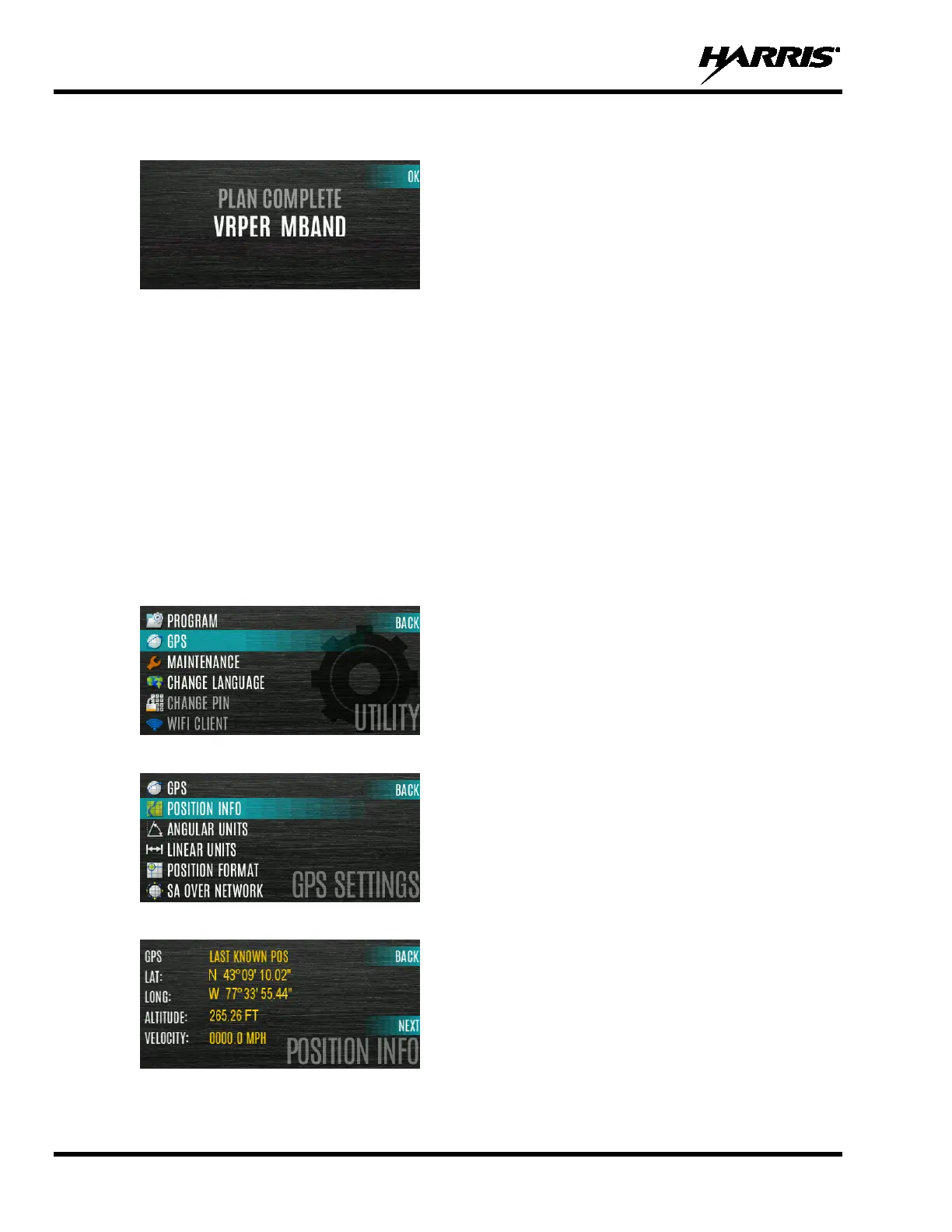

7. If personality is activated, the radio displays PLAN COMPLETE followed by the name of the
personality. Press the OK soft key.
• You cannot activate a personality when the radio is transmitting an emergency.
• A FAILED message may be displayed for errors such as invalid syntax in the fill or some other
invalid parameter.
5.2 SITUATIONAL AWARENESS (SA) – P25 CONVENTIONAL ONLY
Situational Awareness is a feature in which the radio receives SA position from other units configured to
send the SA packets. The SA display shows the positions of the other radios (units) relative to the radio. To
make use of SA, all radios need to have a uniquely programmed Unit ID.
To display Situational Awareness Info:
1. Press the Menu button.
2. Navigate to the UTILITY menu.
3. Scroll up or down to highlight GPS and press the Group/Channel Select Knob.
4. Select POSITION INFO and press the Group/Channel Select Knob.
5. Press the NEXT soft key.

Harris XL Series Specifications

General

Battery Type	Lithium-ion
GPS	Yes
Bluetooth	Yes
Dimensions	5.5 x 2.5 x 1.5 inches
Operating Temperature	-30°C to 60°C
Operating Modes	Analog
Encryption	AES
Modulation	FM
