Harris XL Series User Manual

14221-1850-2000, Rev. A
62

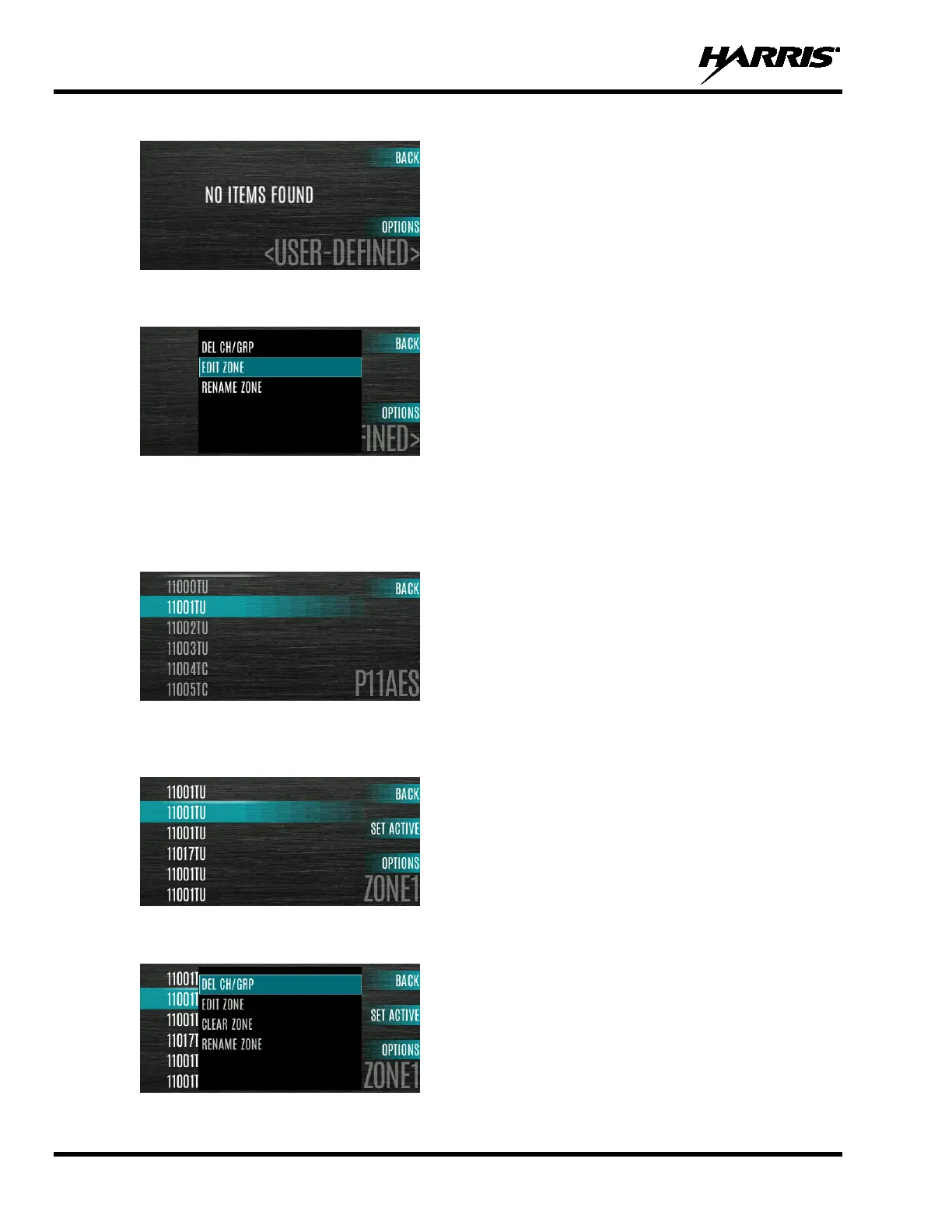

4. Press the OPTIONS soft key.
5. Press the up or down navigation buttons to select EDIT ZONE to create a zone or select RENAME
ZONE to name the User Defined Zone (up to 16 characters are allowed).
6. Press the left or right navigation buttons to scroll through existing systems. Press the up or down
navigation buttons to highlight desired channel/group.
7. Press the Group/Channel Select Knob to add or remove channel/group.
8. After adding all desired channels/groups, press the BACK soft key.
9. Activate the User Defined Zone by selecting the SET ACTIVE soft key on the USER DEFINED
screen, or by pressing the Group/Channel Select knob when the <USER DEFINED> zone is
highlighted on the Zone menu.
10. After creating a User Defined Zone, select OPTIONS to edit the User Defined Zone, delete
channels/groups, clear the zone, and rename the zone.
