Harris XL Series User Manual

14221-1850-2000, Rev. A
94
2. To limit the impact of voice traffic on the network, set up a voice group set with a single voice group
selected with transmit and receive disabled.

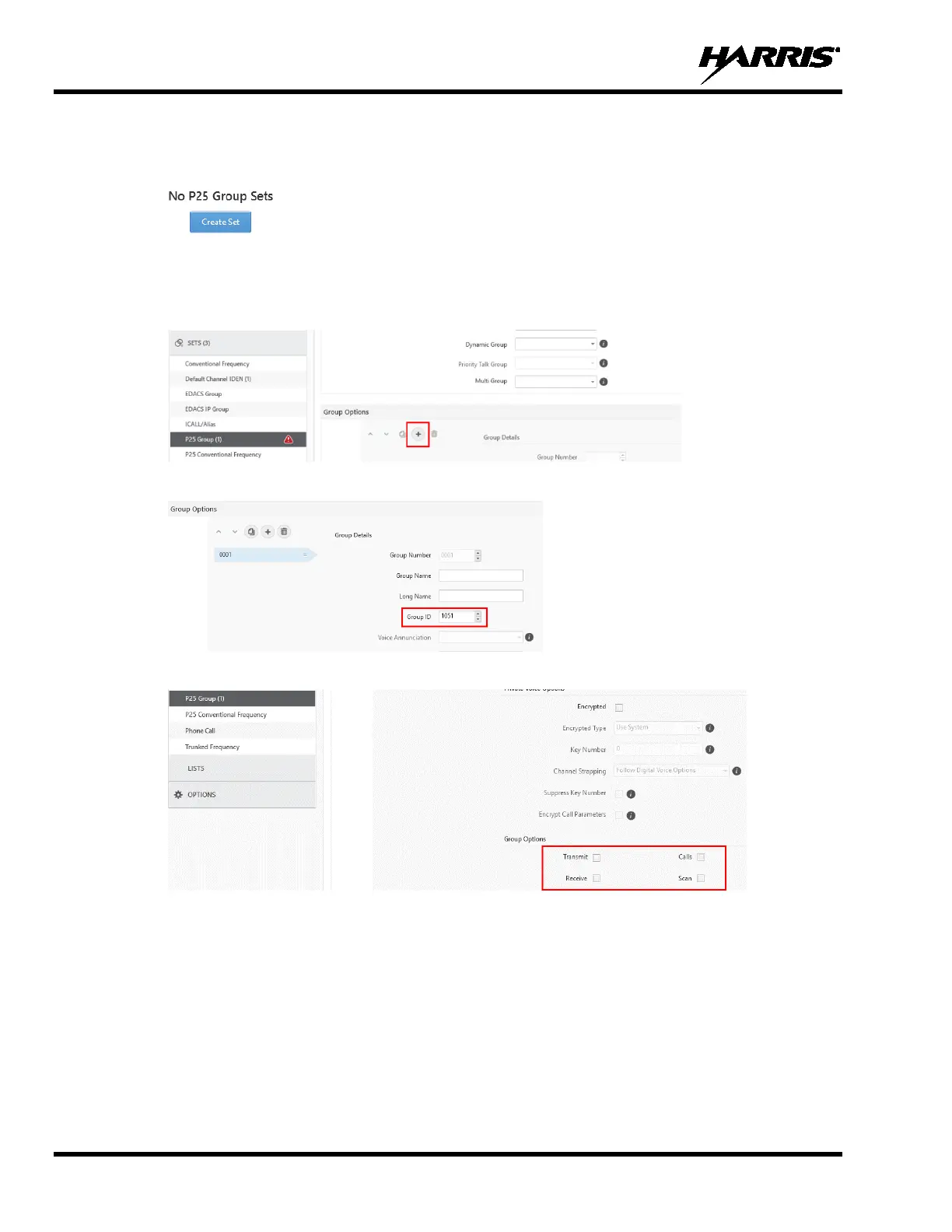

a. Navigate to SETS
 P25 Group. Click Create Set.
b. Name the group (e.g., NO AUDIO).
c. Double-click the group name.
d. Under Group Options, click + to add group.
e. Enter a valid Group ID for your P25 Network.
f. Under Group Options, uncheck Transmit, Receive, Calls, and Scan.
3. From the Personality Rail, navigate to SYSTEMS
 P25 Trunked and select the desired system.
Under System Options
 Sets Options, select the group created in Step 2 from the Group Set drop-
down. Leave the Phone Call Set and Individual Call Set fields blank.

Harris XL Series Specifications

General

Battery Type	Lithium-ion
GPS	Yes
Bluetooth	Yes
Dimensions	5.5 x 2.5 x 1.5 inches
Operating Temperature	-30°C to 60°C
Operating Modes	Analog
Encryption	AES
Modulation	FM
