Mounting
18
a4643-1.0 HBM: public ClipX
5.2 Dismounting from a support rail

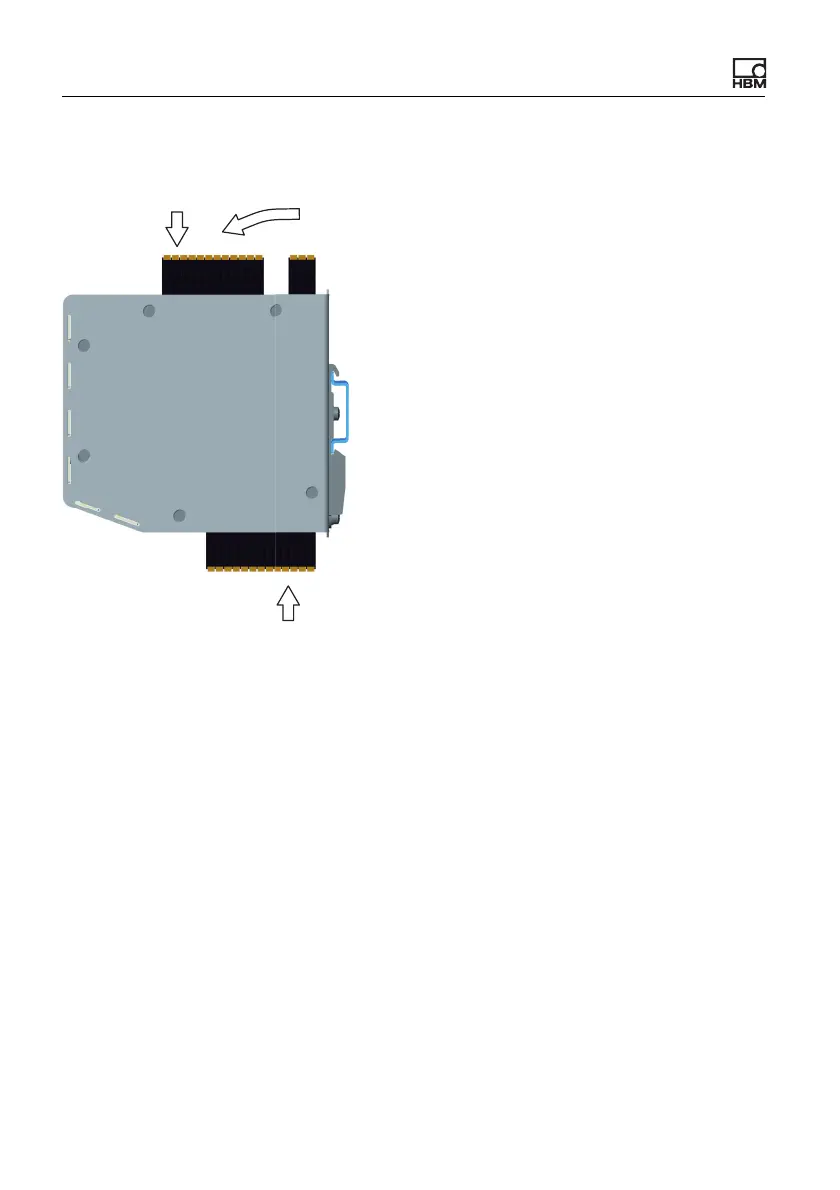

Fig. 4: Dismounting from a support rail
1. Push the ClipX up.
The spring mechanism allows you to release it from the top locator on the
support rail.
2. Tilt the ClipX forward, rotating it as you do so.
3. Detach the ClipX downwards.
