HBM ClipX - Voltage Source (±10 V)

Electrical connections, LEDs
ClipX
a4643-1.0 HBM: public 43
6.6.5 Voltage source (±10V)
See also Available connections and LEDs
.

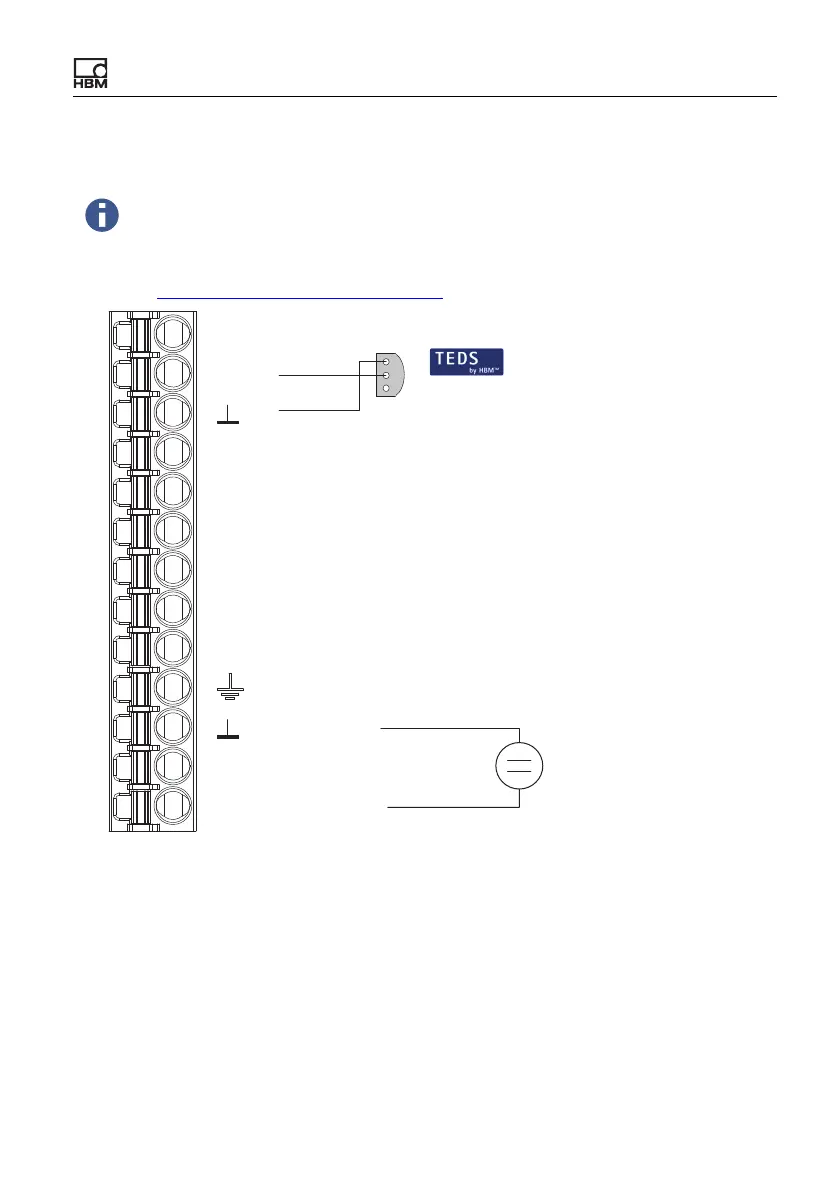

Fig. 19: Plug terminal X4, pin assignment for electrical voltage source
The use of TEDS is not yet supported by the current firmware version.
It will be in one of the future versions however.
U
1-Wire-TEDS
Pt100
TEDS
Pt100
1
2
Plug terminal X4, transducer connection
1
2'
3
3'
2
I
U
AI
S
4
Measurement signal +
Sense lead -
Bridge excitation voltage +
Sense lead +
Bridge excitation voltage -
Cable shield
Analog GND
Voltage input
Current input
Measurement signal -
GND
