Electrical connections, LEDs
32
a4643-1.0 HBM: public ClipX

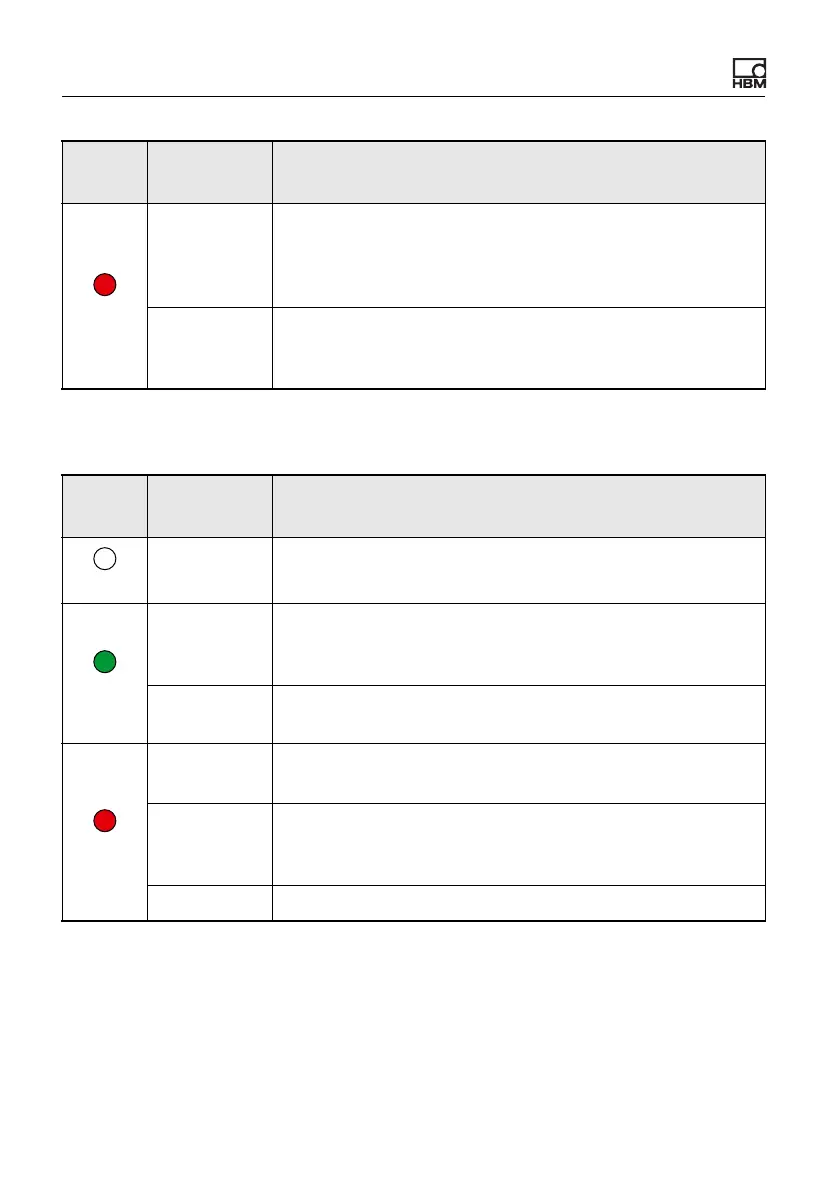

PROFIBUS LED (BUS, only BM40PB)
Red
Flashing
(1Hz)
Connection timeout.
One or more connections to this ClipX are in timeout. This
status will only be terminated when all connections have
been restored or you reset the ClipX.
On Duplicate IP address.
The ClipX has detected that the IP address assigned to it
(and set) is already being used in the network.
LED
BUS
Status Meaning
Off
Off The ClipX is not on, or the network has no power.
Green
Flashing
cyclically
(2Hz)
The master is in the CLEAR state.
On The ClipX is in the RUN state; cyclic communication is run-
ning.
Red
Flashing
briefly (1Hz)
The ClipX is not configured.
Flashing
cyclically
(2Hz)
The ClipX is in the STOP state.
No communication; a connection error has possibly
occurred.
On Incorrect PROFIBUS-DP configuration.
NS
LED
Status Meaning
