HBM ClipX - Synchronizing Multiple ClipX CF Amplifiers

Electrical connections, LEDs
ClipX
a4643-1.0 HBM: public 51
6.10 Synchronizing multiple ClipX CF amplifiers
You should synchronize multiple ClipX devices that supply sensors with carrier
frequency (CF) so that the carrier frequency measuring amplifiers do not inter-
fere with each other. This will prevent crosstalk between adjacent sensor
cables, resulting in disturbance to measurements. If you are using only sensors
with direct voltage (DC) amplifiers, no synchronization is necessary.
To synchronize, interconnect the Sync terminals of the devices and the ClipX
bus GND terminals, unless you have already connected the latter to transmit
measured values. Lay the lines from the first device to the second, from the
second to the third device, etc. (line topology). The cable must have twisted-pair
wires, and be shielded. The ClipX bus GND and Sync lines must be twisted and
shielded.
See also Available connections and LEDs
, Using multiple ClipX devices, ClipX
bus.

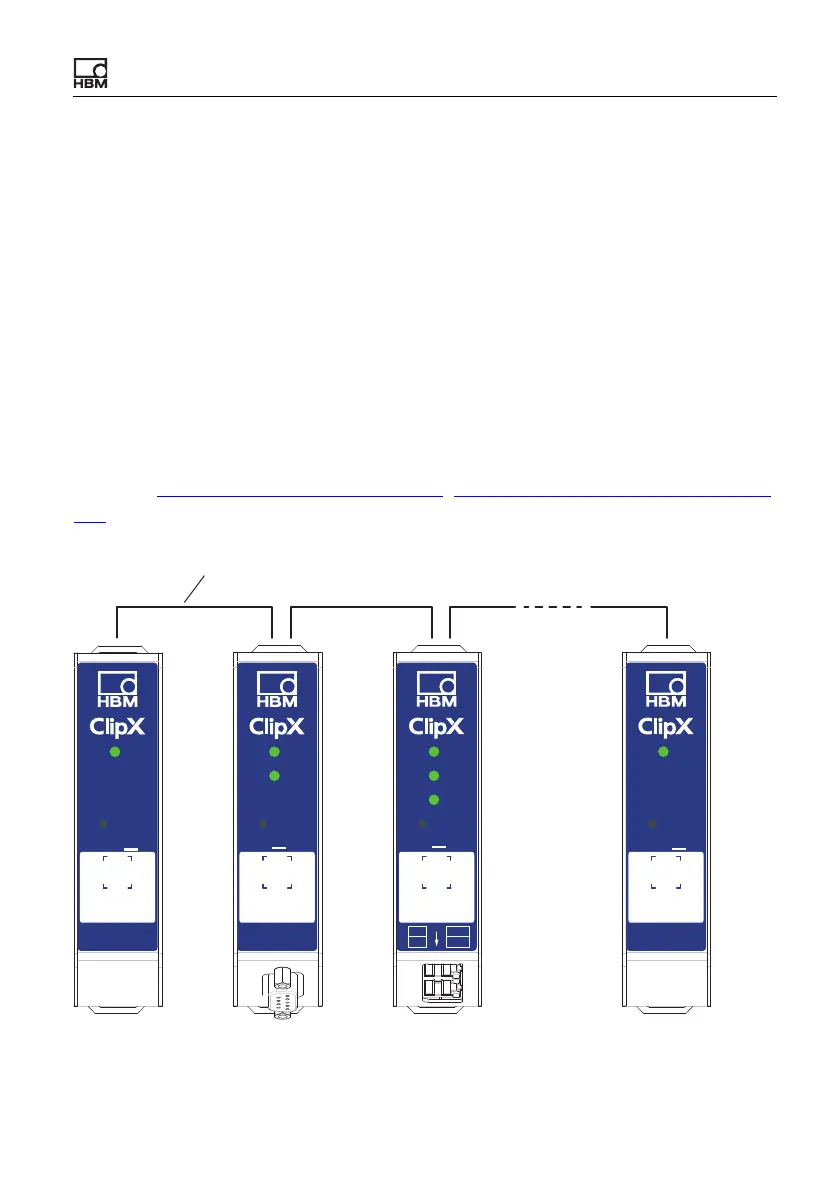

Fig. 27: Synchronizing multiple ClipX devices
SYS
SF MS
BF NS
RUN
ERR
BM
40
IE
OUT
IN
P2
P1
max. 30 cm
PROFIBUS
SYS
40
PB
BUS
BM
SYS
40
BM
SYS
40
BM
