6.6.6 Current source (±20mA or 4 … 20mA)
See also Available connections and LEDs
.

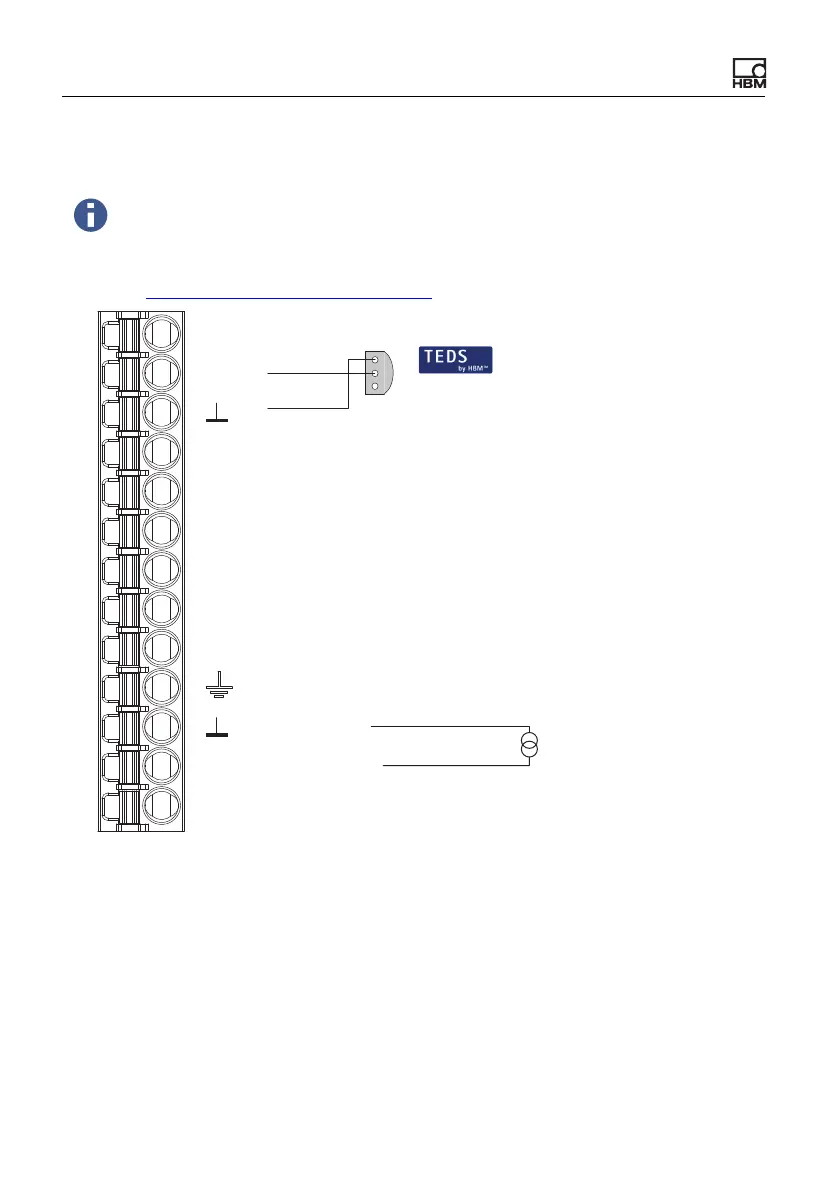

Fig. 20: Plug terminal X4, pin assignment for current source
The use of TEDS is not yet supported by the current firmware version.
It will be in one of the future versions however.
I
Plug terminal X4, transducer connection
1-Wire-TEDS
TEDS
Pt100
1
2
1
2'
3
3'
2
I
U
AI
S
4
Measurement signal +
Sense lead -
Bridge excitation voltage +
Sense lead +
Bridge excitation voltage -
Cable shield
Analog GND
Voltage input
Current input
Measurement signal -
GND
